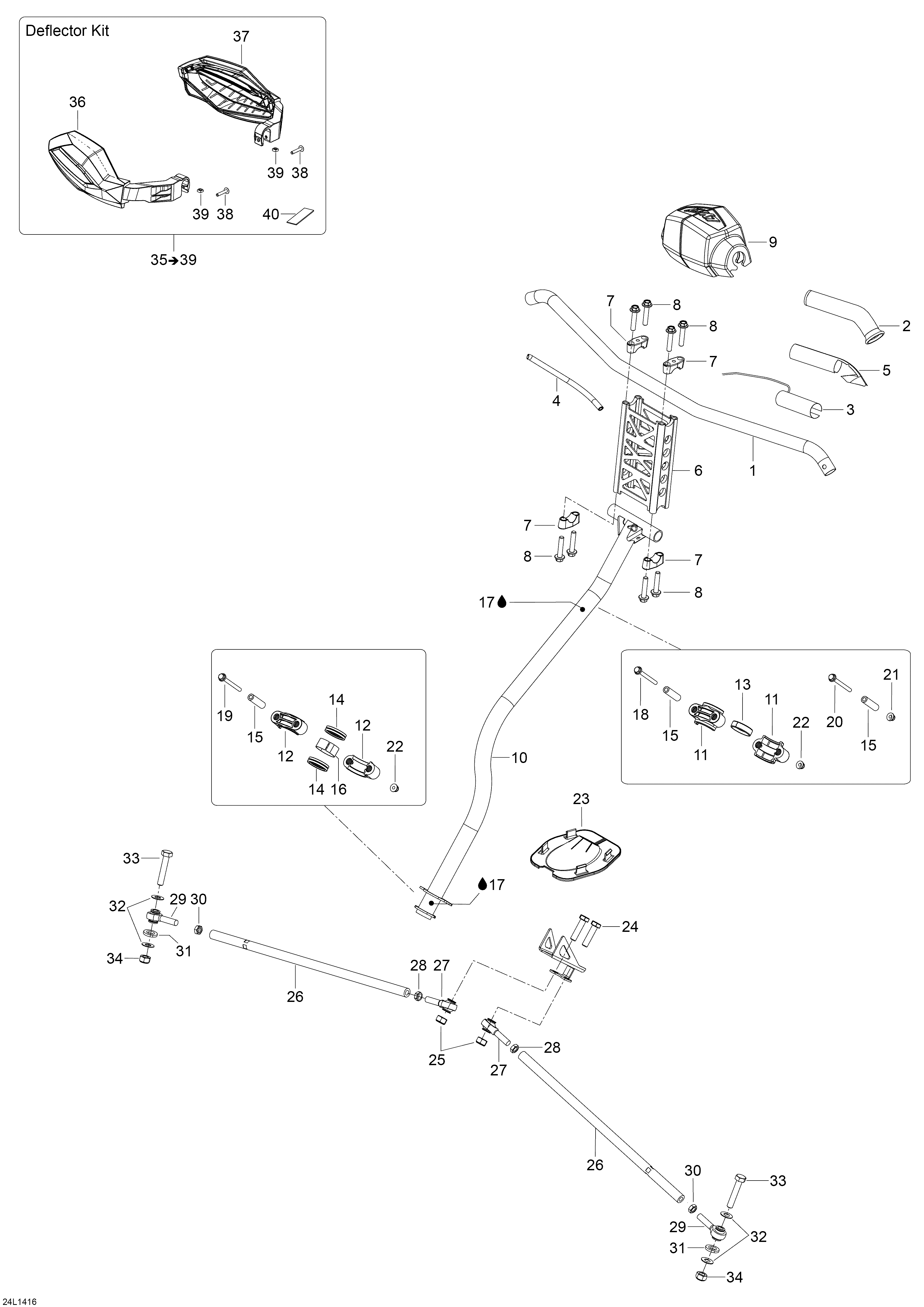

07- Steering System для BRP Lynx Rave RE 600 E-TEC - 2014
-
№АртикулНазвание
-
1506152724 Handle BarHandle Bar
-
2506152486 GripGrip
-
3506152665 Heated FilmHeated Film
-
4515175830 Protector TubeProtector Tube
-
5506152548 IsolantIsolant
-
6506152570 ExtensionExtension
-
7506152395 Steering SupportSteering Support
-
8250000352 Hex. Flanged Screw M8 x 40Hex. Flanged Screw M8 x 40
-
9506152553 Steering PadSteering Pad
-
10506152584 Main TubeMain Tube
-
11506152508 Half Housing UpperHalf Housing Upper
-
12506152217 Half Housing LowerHalf Housing Lower
-
13506152509 Vibrat. Gasket UpperVibrat. Gasket Upper
-
14506152518 Vibrat. Gasket LowerVibrat. Gasket Lower
-
15506152297 Housing BushingHousing Bushing
-
16506152440 Retain. RingRetain. Ring
-
18207667086 Hex Flanged Screw M6 x 70Hex Flanged Screw M6 x 70
-
19207667086 Hex Flanged Screw M6 x 70Hex Flanged Screw M6 x 70
-
20207667086 Hex Flanged Screw M6 x 70Hex Flanged Screw M6 x 70
-
21233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
22233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
23506152163 PlatePlate
-
24207004044 Hex. Screw M10 x 40Hex. Screw M10 x 40
-
25232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
26506152496 Tie RodTie Rod
-
27506152081 Ball JointBall Joint
-
28250100016 LH Hex Jam Nut M10LH Hex Jam Nut M10
-
29506152019 Ball JointBall Joint
-
30732610010 RH Hex Jam Nut M10RH Hex Jam Nut M10
-
31503192496 WasherWasher
-
32506152194 WasherWasher
-
33207005544 Hex Screw M10 x 55Hex Screw M10 x 55
-
34232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
35517305053 Deflector Kit, White. Includes 35 To 39Deflector Kit, White. Includes 35 To 39
-
38250000501 Screw M6 x 35Screw M6 x 35
-
39250000498 Square Nut M6Square Nut M6
-
40294000973 Friction TapeFriction Tape
