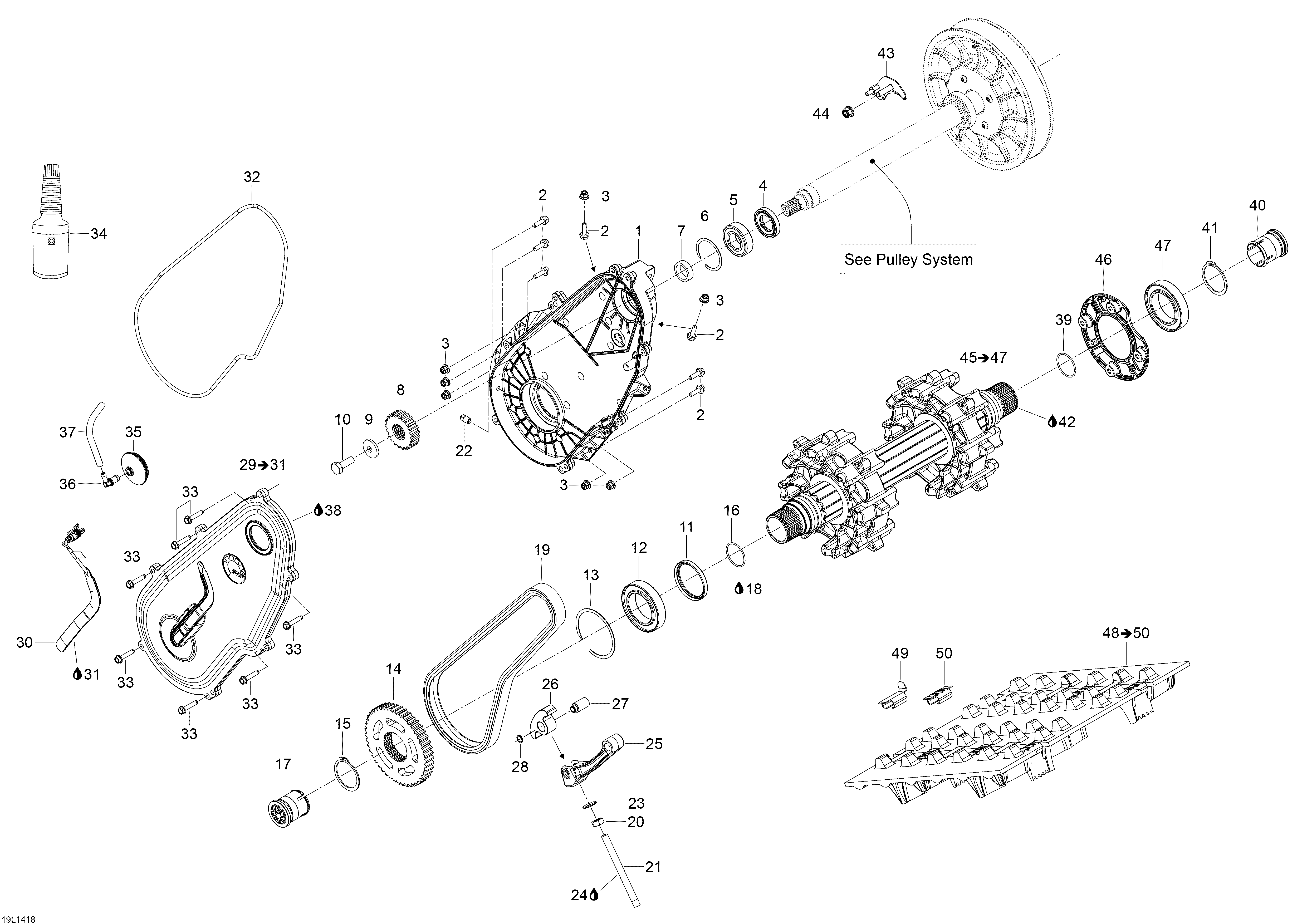

05- Drive System для BRP Lynx Rave RE 800R E-TEC - 2014
-
№АртикулНазвание
-
1504153180 ChaincaseChaincase
-
2207662034 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
3233261434 Elastic Flange Nut M6Elastic Flange Nut M6
-
4415049300 Oil SealOil Seal
-
5293350055 Ball BearingBall Bearing
-
6504152576 CirclipCirclip
-
7504152628 ShimShim
-
8504084300 Sprocket, 25 Teeth. (38 Track)Sprocket, 25 Teeth. (38 Track)
-
8504091000 Sprocket, 23 Teeth. (44 Track)Sprocket, 23 Teeth. (44 Track)
-
9504152784 Spring WasherSpring Washer
-
10207503046 Hex. Flange Screw M10 x 30Hex. Flange Screw M10 x 30
-
11504152571 SealSeal
-
12293350059 Ball BearingBall Bearing
-
13504152582 CirclipCirclip
-
14504152593 Sprocket, 45 TeethSprocket, 45 Teeth
-
15504152572 CirclipCirclip
-
16293300122 O RingO Ring
-
17504152619 Magnetic CapMagnetic Cap
-
19504152629 Drive ChainDrive Chain
-
20232006414 NutNut
-
21504152602 Adjusting ScrewAdjusting Screw
-
22504152854 Magnetic PlugMagnetic Plug
-
23293200128 Seal RingSeal Ring
-
24619590098 Chaincase OilChaincase Oil
-
25504152685 Chain TensionerChain Tensioner
-
26504152739 Chain SliderChain Slider
-
27504152841 Axle TensionerAxle Tensioner
-
28504152282 CirclipCirclip
-
29504153146 Cover Ass?y. Includes 29 To 31Cover Ass?y. Includes 29 To 31
-
30504152896 SensorSensor
-
31293800066 Sealant 5900, 300mlSealant 5900, 300ml
-
32293300130 O RingO Ring
-
33210263080 Hex. HD. Forming Screw M6 x 30Hex. HD. Forming Screw M6 x 30
-
34619590098 Chaincase OilChaincase Oil
-
35504152860 CapCap
-
36414580700 Male ConnectorMale Connector
-
37415080200 HoseHose
-
38619590098 Chaincase OilChaincase Oil
-
39293300122 O RingO Ring
-
40504152619 Magnetic CapMagnetic Cap
-
41504152572 CirclipCirclip
-
43504152974 Bearing HousingBearing Housing
-
44233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
45504153252 Drive Axle Ass?y. Includes 45 To 47Drive Axle Ass?y. Includes 45 To 47
-
46504152949 Bearing HousingBearing Housing
-
47293350059 Ball BearingBall Bearing
-
48504153091 Track Ass?y (380 x 3269 x 38). Includes 48 To 50Track Ass?y (380 x 3269 x 38). Includes 48 To 50
-
48504153162 Track Ass?y (406 x 3269 x 44). Includes 48 To 50Track Ass?y (406 x 3269 x 44). Includes 48 To 50
-
49415129528 ClipClip
-
50504152651 CleatCleat
