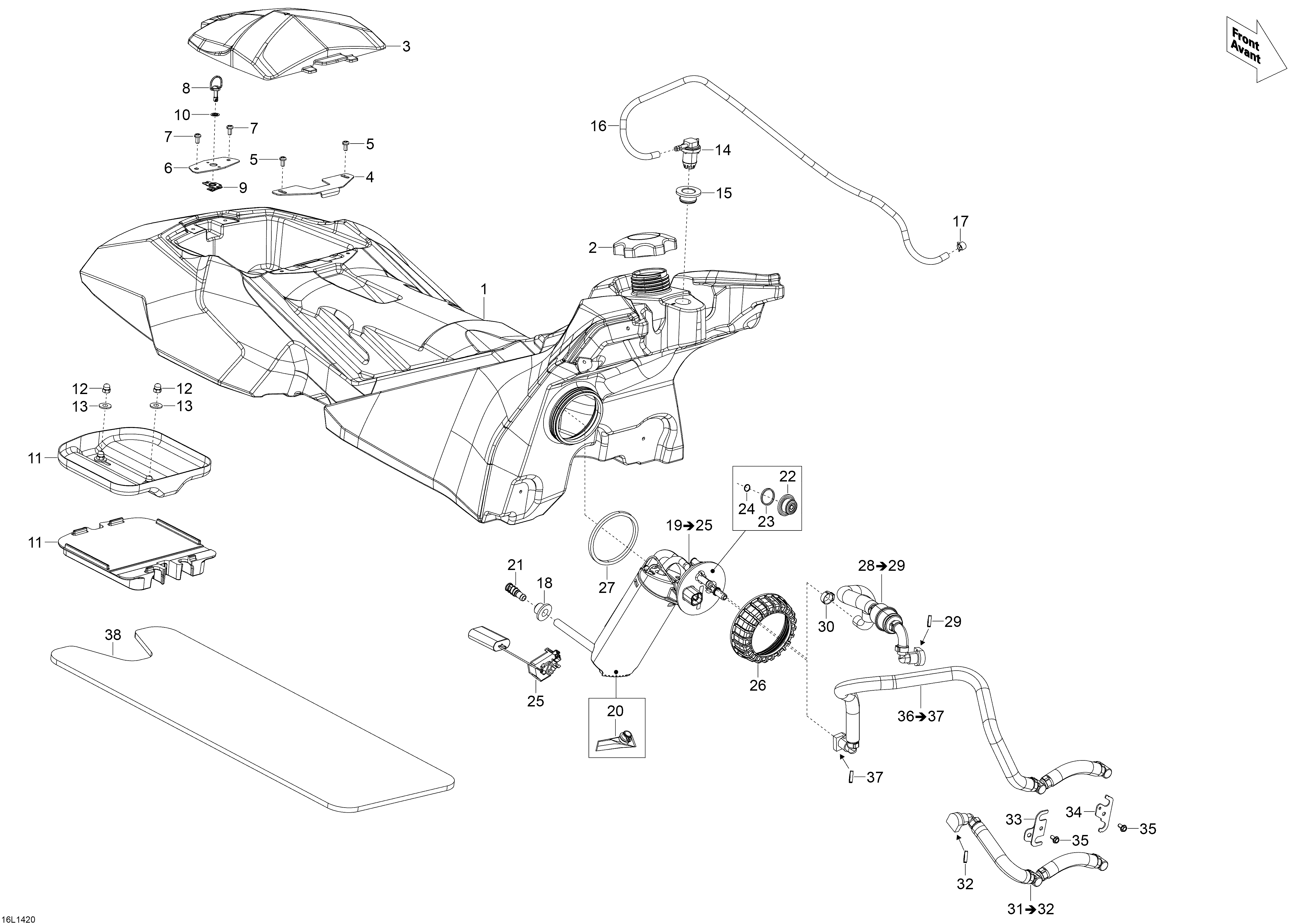

02- Fuel System для BRP Lynx Xtrim SC 600 E-TEC - 2014
-
№АртикулНазвание
-
1513033725 Fuel TankFuel Tank
-
2513033723 CapCap
-
3513033705 Battery CoverBattery Cover
-
4513033744 Lock PlateLock Plate
-
5205951046 Socket HD Screw M5 x 10Socket HD Screw M5 x 10
-
6513033731 Lock PlateLock Plate
-
7205951046 Socket HD Screw M5 x 10Socket HD Screw M5 x 10
-
8513033735 Quarter Turn FastenerQuarter Turn Fastener
-
9513033736 Quarter Turn Fastener PlateQuarter Turn Fastener Plate
-
10732610072 Push NutPush Nut
-
11513033751 Fuel Tank SupportFuel Tank Support
-
11513033732 Battery Support. (Electric Starter)Battery Support. (Electric Starter)
-
12232361493 Hex. Domed Nut M6Hex. Domed Nut M6
-
13234062410 Flat Washer M6Flat Washer M6
-
14513033188 Check ValveCheck Valve
-
15513033596 GrommetGrommet
-
16415080200 Polyurethane HosePolyurethane Hose
-
17414554800 Spring ClampSpring Clamp
-
1828037 GrommetGrommet
-
19513033738 Fuel Pump. Includes 19 To 25Fuel Pump. Includes 19 To 25
-
20415129451 Fuel Filter, PumpFuel Filter, Pump
-
21414872100 Fuel Filter, HoseFuel Filter, Hose
-
22415129821 RegulatorRegulator
-
23415129822 O RingO Ring
-
24415129823 O RingO Ring
-
25415129671 Fuel Level SensorFuel Level Sensor
-
26513033040 Fuel Pump NutFuel Pump Nut
-
27513033707 GasketGasket
-
28513033715 Fuel Hose Ass'y. Includes 28 To 29Fuel Hose Ass'y. Includes 28 To 29
-
29513033135 Locking ClipLocking Clip
-
30293650053 Crimp ClampCrimp Clamp
-
31513033594 Hose Ass'y. Includes 31 To 32Hose Ass'y. Includes 31 To 32
-
32513033135 Locking ClipLocking Clip
-
33513033542 Bracket RHBracket RH
-
34513033593 Bracket LHBracket LH
-
35207551044 Flanged Hex. Screw M5 x 10Flanged Hex. Screw M5 x 10
-
36513033648 Hose Ass'y. Includes 36 To 37Hose Ass'y. Includes 36 To 37
-
37513033135 Locking ClipLocking Clip
-
38513033701 Insulating FoamInsulating Foam
