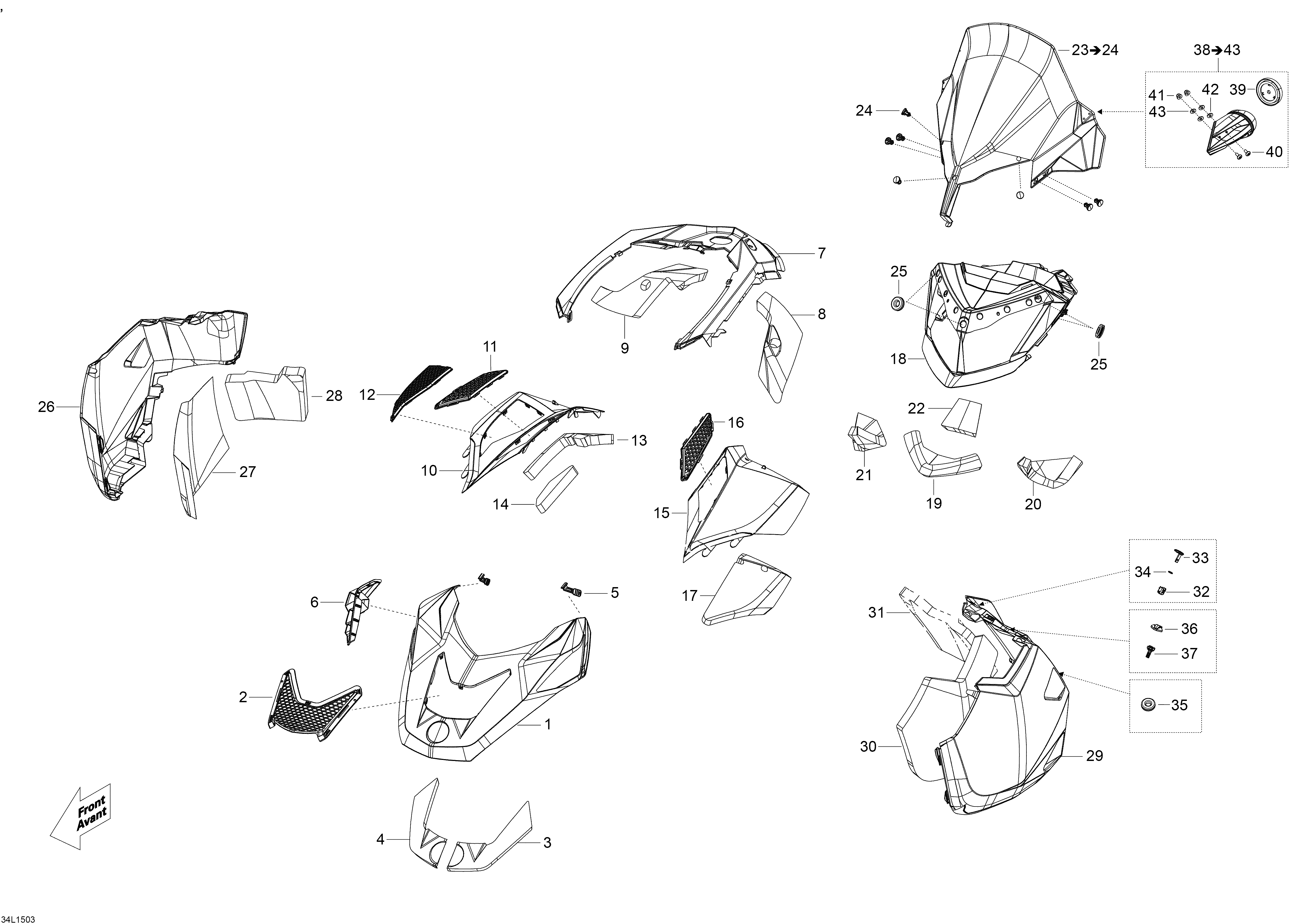

09- Hood And Windshield для BRP Lynx 69 YETI 600 ACE - 2015
-
№АртикулНазвание
-
1517304958 Blue HoodBlue Hood
-
2517304843 Hood GrillHood Grill
-
3517304330 InsulatorInsulator
-
4517304214 InsulatorInsulator
-
5517304289 LatchLatch
-
6517304155 Scoop GrillScoop Grill
-
7517304820 Black ConsoleBlack Console
-
8517305644 InsulatorInsulator
-
9517304318 InsulatorInsulator
-
10517304960 Blue RH Side Access PanelBlue RH Side Access Panel
-
11517304015 RH Access Panel GrillRH Access Panel Grill
-
12517304016 RH Access Panel Grill LowerRH Access Panel Grill Lower
-
13517304311 InsulatorInsulator
-
14517304312 InsulatorInsulator
-
15517304962 Blue LH Side Access PanelBlue LH Side Access Panel
-
16517303893 LH Access Panel GrillLH Access Panel Grill
-
17517304313 InsulatorInsulator
-
18517304272 Indicator SupportIndicator Support
-
19517304314 InsulatorInsulator
-
20517304315 InsulatorInsulator
-
21517304316 InsulatorInsulator
-
22517304319 InsulatorInsulator
-
23860201000 Windshield Ass'y. Includes 23 To 24Windshield Ass'y. Includes 23 To 24
-
24517304744 KnobKnob
-
25517303756 GrommetGrommet
-
26517304328 Black RH Side PanelBlack RH Side Panel
-
27517304709 RH FoamRH Foam
-
28517304310 RH Foam RearRH Foam Rear
-
29517304329 Black LH Side PanelBlack LH Side Panel
-
30517304707 LH FoamLH Foam
-
31517304309 LH Foam RearLH Foam Rear
-
32517304297 Quarter-Turn Handle FastenerQuarter-Turn Handle Fastener
-
33517304296 Quarter-Turn HandleQuarter-Turn Handle
-
34517304538 Locking PlateLocking Plate
-
35517303756 GrommetGrommet
-
36517304075 End PieceEnd Piece
-
37517304573 LatchLatch
-
38517305787 RH/LH Mirror Ass'y. Includes 38 To 43RH/LH Mirror Ass'y. Includes 38 To 43
-
40250000721 Torx Truss Screw M6 x 16Torx Truss Screw M6 x 16
-
41232361493 Hex. Domed Nut M6Hex. Domed Nut M6
-
42250200024 Rubber Washer M5Rubber Washer M5
-
4320117 WasherWasher
