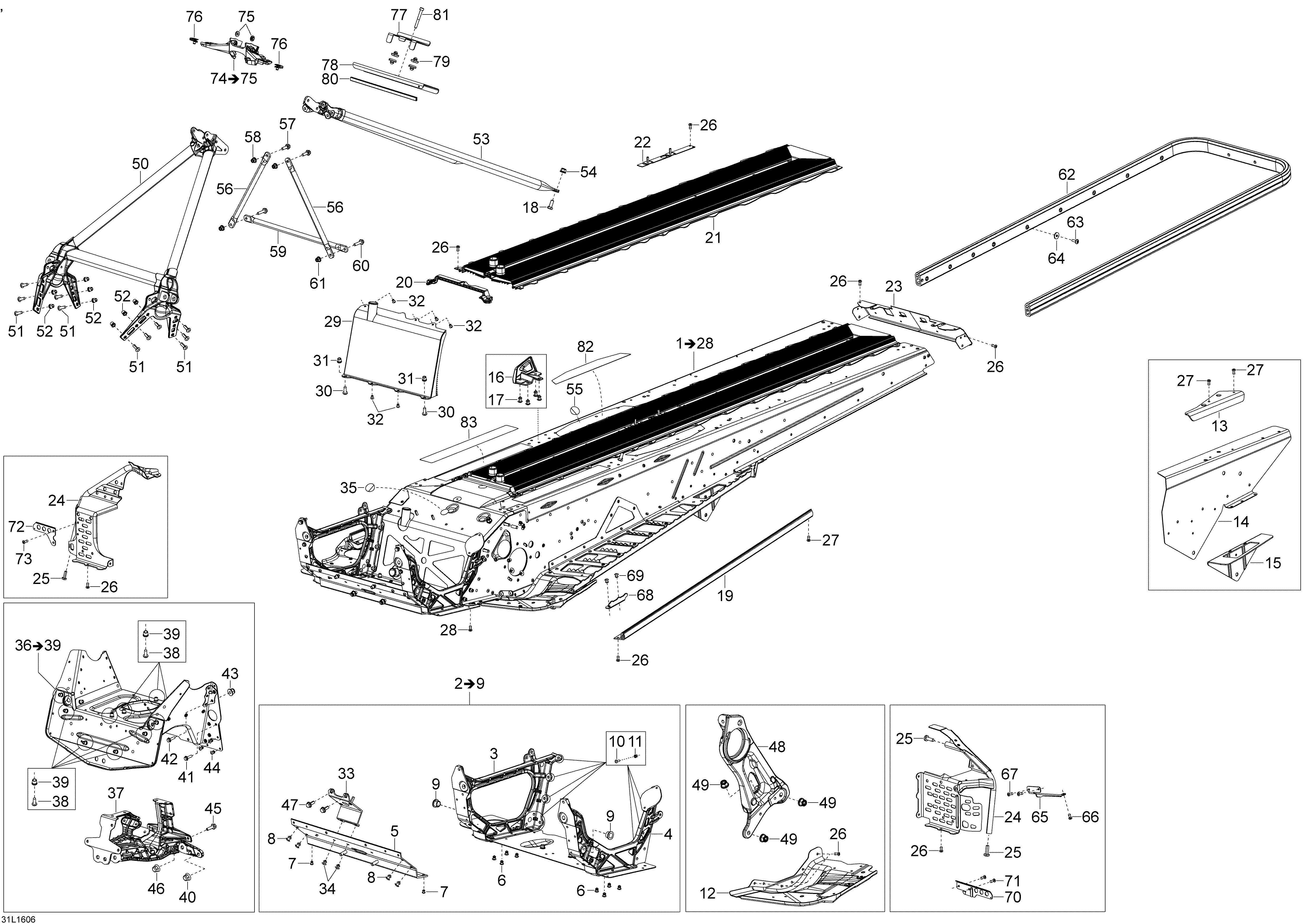

09- Frame для BRP Lynx 49 Ranger (2-Stroke) - 2016
-
№АртикулНазвание
-
1518328870 Black Frame. Includes 1 To 28Black Frame. Includes 1 To 28
-
2518327646 E Module. Includes 2 To 9E Module. Includes 2 To 9
-
3518326795 RH MemberRH Member
-
4518326796 LH MemberLH Member
-
5518326198 Front MemberFront Member
-
6390909100 RivetRivet
-
7293150120 RivetRivet
-
8293150119 RivetRivet
-
9505072690 CushionCushion
-
10207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
11233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
12518328083 LH Front TunnelLH Front Tunnel
-
12518328084 RH Front TunnelRH Front Tunnel
-
13510006002 LH Backrest ReinforcementLH Backrest Reinforcement
-
13510006003 RH Backrest ReinforcementRH Backrest Reinforcement
-
15518327453 LH Rear SupportLH Rear Support
-
15518327474 RH Rear SupportRH Rear Support
-
16518328436 RH Rear BaseRH Rear Base
-
16518328435 LH Rear BaseLH Rear Base
-
17293150147 RivetRivet
-
18207182086 Hex. Cap Screw M8 x 20Hex. Cap Screw M8 x 20
-
19518327465 Side ProfileSide Profile
-
20518326656 SealSeal
-
21518326735 Rear RadiatorRear Radiator
-
23518327240 Rear CapRear Cap
-
24518328940 RH StirrupRH Stirrup
-
24518328528 LH StirrupLH Stirrup
-
25250000752 Pan HD Torx Screw M8 x 25Pan HD Torx Screw M8 x 25
-
26390909200 RivetRivet
-
27390909100 RivetRivet
-
28293150096 RivetRivet
-
29518326485 Front RadiatorFront Radiator
-
30207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
31233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
32390909200 RivetRivet
-
33518325943 MAG SupportMAG Support
-
34293150119 RivetRivet
-
35518325560 Adhesive PatchAdhesive Patch
-
36518328392 Cross Member. Includes 36 To 39Cross Member. Includes 36 To 39
-
37518327487 SupportSupport
-
38207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
39233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
40233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
41210262050 Forming Screw M6 x 20Forming Screw M6 x 20
-
42207563034 Hex. Flange Screw M6 x 30Hex. Flange Screw M6 x 30
-
43233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
44293150179 RivetRivet
-
45207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
46233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
47207661644 Hex. Flange Screw M6 x 16Hex. Flange Screw M6 x 16
-
48518327460 Pulley SupportPulley Support
-
49233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
50518327565 Front MemberFront Member
-
51207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
52233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
53518327237 Rear MemberRear Member
-
54233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
55518325560 Adhesive PatchAdhesive Patch
-
56518325114 SupportSupport
-
57207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
58233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
59518325115 Upper ColumnUpper Column
-
60207662556 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
61233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
62518328156 Black Rear BumperBlack Rear Bumper
-
63250000779 Torx Truss M6 x 18Torx Truss M6 x 18
-
64224061201 Flat WasherFlat Washer
-
65518328079 Brake Cover SupportBrake Cover Support
-
66390909200 RivetRivet
-
67293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
68518328543 Black Side GripBlack Side Grip
-
69293150119 RivetRivet
-
70518327613 LH Spring Support PlateLH Spring Support Plate
-
71293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
72518327614 RH Spring Support PlateRH Spring Support Plate
-
73390909200 RivetRivet
-
74518327145 Support. Includes 74 To 75Support. Includes 74 To 75
-
76250000079 Panel Nut M5Panel Nut M5
-
77513033746 Upper Support PlateUpper Support Plate
-
78513033747 Lower Support PlateLower Support Plate
-
79605452114 Rubber PlugRubber Plug
-
81205065044 Socket HD Screw M6 x 50Socket HD Screw M6 x 50
-
82516006448 Fuel Tank Protection DecalFuel Tank Protection Decal
-
83516007041 Fuel Tank Protection DecalFuel Tank Protection Decal
