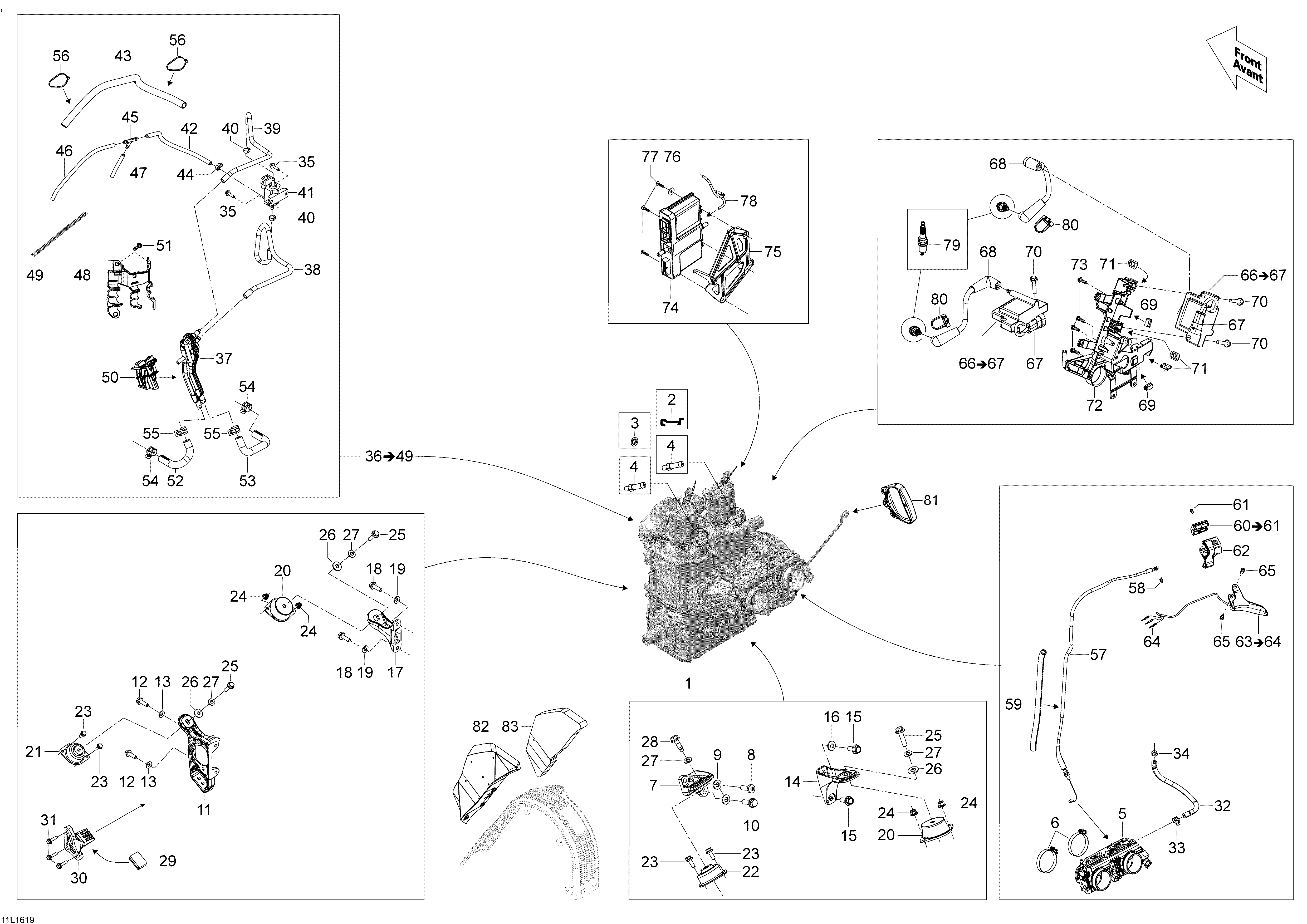

01- Engine And Engine Support для BRP Lynx Rave (2-Stroke) - 2016
-
№АртикулНазвание
-
2515177770 LockLock
-
3732610072 Push NutPush Nut
-
4420924724 Hose NippleHose Nipple
-
5420889201 Throttle BodyThrottle Body
-
6293650158 ClampClamp
-
7512060478 Rear Support (PTO)Rear Support (PTO)
-
8250000752 Torx Screw M8 x 25, Scotch GripTorx Screw M8 x 25, Scotch Grip
-
9234281474 Conical Spring Washer M8Conical Spring Washer M8
-
10207582586 Hex. Flange Screw M8 x 25, Scotch GripHex. Flange Screw M8 x 25, Scotch Grip
-
11512060712 Front Support (PTO)Front Support (PTO)
-
12207582586 Hex. Flange Screw M8 x 25, Scotch GripHex. Flange Screw M8 x 25, Scotch Grip
-
13234281474 Conical Spring Washer M8Conical Spring Washer M8
-
14512060559 Rear Support (MAG)Rear Support (MAG)
-
15207582044 Hex. Flange Screw M8 x 20, Scotch GripHex. Flange Screw M8 x 20, Scotch Grip
-
16234281474 Conical Spring Washer M8Conical Spring Washer M8
-
17512060469 Front Support (MAG)Front Support (MAG)
-
18207582586 Hex. Flange Screw M8 x 25, Scotch GripHex. Flange Screw M8 x 25, Scotch Grip
-
19234281474 Conical Spring Washer M8Conical Spring Washer M8
-
20512060729 Rubber MountRubber Mount
-
21512060387 Rubber MountRubber Mount
-
22512060448 Rubber MountRubber Mount
-
23207561644 Hex. Flange Screw M6 x 16, Scotch GripHex. Flange Screw M6 x 16, Scotch Grip
-
24233261414 Hex. Flange Elastic Nut M6Hex. Flange Elastic Nut M6
-
25207683044 Hex. Flange Screw M8 x 30Hex. Flange Screw M8 x 30
-
26503183200 WasherWasher
-
27234281474 Conical Spring Washer M8Conical Spring Washer M8
-
28250000796 Hex. Screw M8Hex. Screw M8
-
29512060627 StopperStopper
-
30512060576 Stopper SupportStopper Support
-
31207562544 Hex. Flange Screw M6 x 25, Scotch GripHex. Flange Screw M6 x 25, Scotch Grip
-
32512060944 HoseHose
-
33293650172 ClampClamp
-
34293650046 ClampClamp
-
35241151640 Hex. Flange Screw K50 x 16Hex. Flange Screw K50 x 16
-
37512060692 ManifoldManifold
-
38415080200 Hose (275mm)Hose (275mm)
-
39415080200 Hose (410mm)Hose (410mm)
-
40293650234 Crimp ClampCrimp Clamp
-
41512061078 Solenoid ValveSolenoid Valve
-
42270000374 Hose (220mm)Hose (220mm)
-
43409901700 TubingTubing
-
44293750001 Tie Rap 94mmTie Rap 94mm
-
45293710068 T-FittingT-Fitting
-
46270000374 Hose (180mm)Hose (180mm)
-
47270000374 Hose (50mm)Hose (50mm)
-
48512060827 Clip Ass?yClip Ass?y
-
49512060930 SpringSpring
-
50512060769 SupportSupport
-
51210251150 Hex. HD Forming Screw M5 x 11Hex. HD Forming Screw M5 x 11
-
52512060695 HoseHose
-
53512060694 HoseHose
-
54293650214 Spring ClampSpring Clamp
-
55293650047 Crimp ClampCrimp Clamp
-
56293750001 Tie Rap 94mmTie Rap 94mm
-
57512060668 Throttle CableThrottle Cable
-
58414274500 CirclipCirclip
-
59409901700 Tubing 9mmTubing 9mm
-
60512060859 Upper Housing. Includes 60 To 61Upper Housing. Includes 60 To 61
-
61414440800 Set Screw M8 x 10Set Screw M8 x 10
-
62512060860 Lower HousingLower Housing
-
63512061051 Throttle Handle Ass'y. Includes 63 To 64Throttle Handle Ass'y. Includes 63 To 64
-
64515175232 Male TerminalMale Terminal
-
65732601143 Shoulder ScrewShoulder Screw
-
66512060953 Ignition Coil. Includes 66 To 67Ignition Coil. Includes 66 To 67
-
67710000568 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
68512061126 Ignition CableIgnition Cable
-
69710000992 ClipClip
-
70250000253 Hex. Flange Screw M6 x 30Hex. Flange Screw M6 x 30
-
71293100003 NutNut
-
72512060888 SupportSupport
-
73241151640 Hex. Flange Screw K50 x 16Hex. Flange Screw K50 x 16
-
74512060780 Calibrated Module 600 E-TECCalibrated Module 600 E-TEC
-
75512060858 Calibrated Module SupportCalibrated Module Support
-
76250200040 Flat WasherFlat Washer
-
77250000760 Truss Head Torx Screw K50 x 20Truss Head Torx Screw K50 x 20
-
78415080100 HoseHose
-
79415129432 Spark Plug (PZFR6F)Spark Plug (PZFR6F)
-
80512060993 ClampClamp
-
81512060136 Starter GripStarter Grip
-
82512060847 Noise ShieldNoise Shield
-
83512060958 Noise FoamNoise Foam
