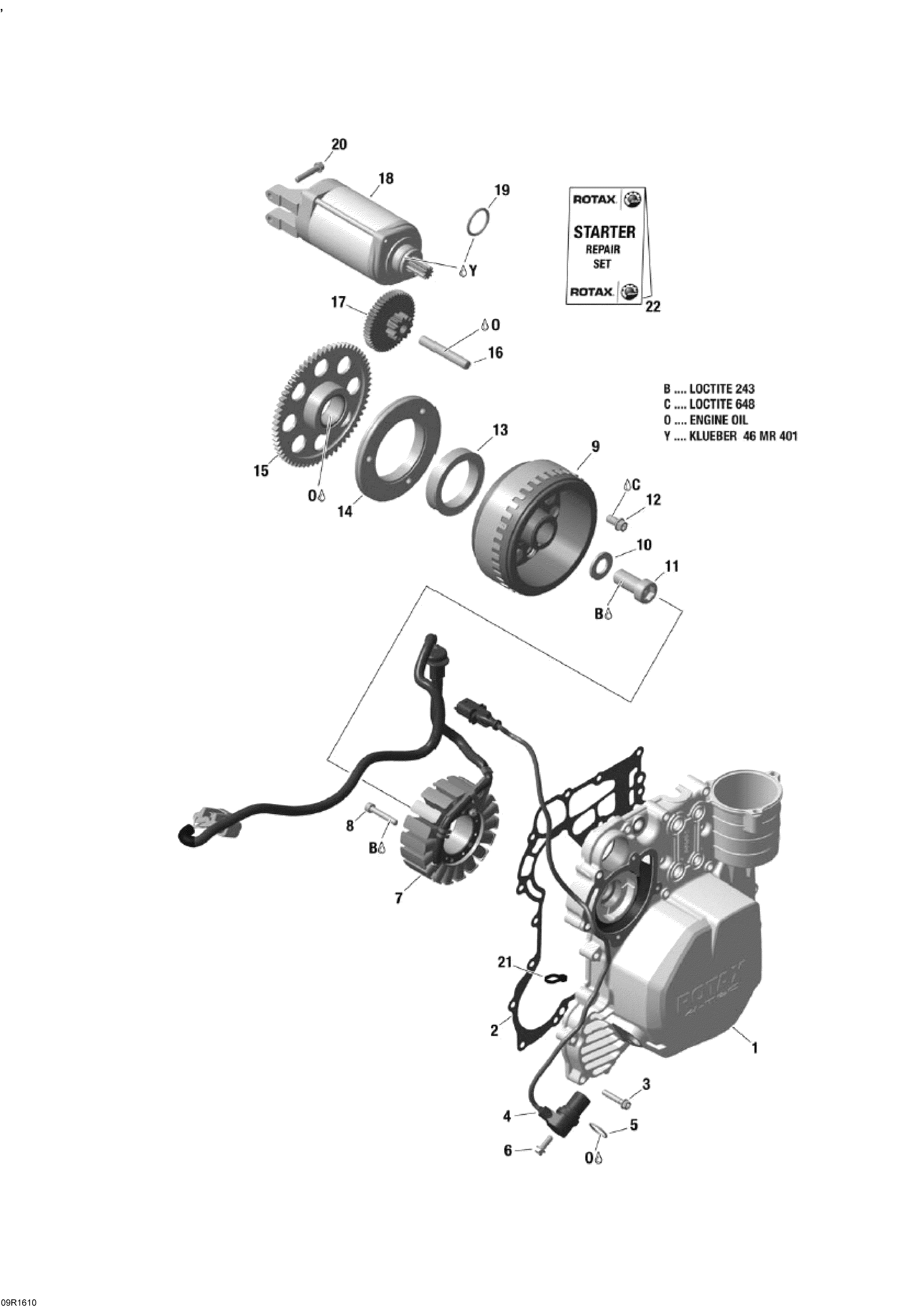

03- Magneto And Electric Starter - 600 ACE для BRP Lynx Xtrim (4-Stroke) - 2016
-
№АртикулНазвание
-
1420911052 Ignition CoverIgnition Cover
-
2420431640 Gasket. Included In Gasket KitGasket. Included In Gasket Kit
-
3420440647 Hex./Torx Flange Screw M6 x 30. Tightening Torque 9 Nm +/- 12%Hex./Torx Flange Screw M6 x 30. Tightening Torque 9 Nm +/- 12%
-
4420966570 Crankshaft Position Sensor. Includes 4 To 5Crankshaft Position Sensor. Includes 4 To 5
-
5420431580 O-Ring. Included In Gasket KitO-Ring. Included In Gasket Kit
-
6420440162 Hex./Torx Flange Screw M6 x 16. Tightening Torque 9 Nm +/- 12%Hex./Torx Flange Screw M6 x 16. Tightening Torque 9 Nm +/- 12%
-
7420296908 Stator Ass'y (420W, 14V)Stator Ass'y (420W, 14V)
-
8420241956 Allen Screw M6 x 40. Tightening Torque 9 Nm +/- 12%Allen Screw M6 x 40. Tightening Torque 9 Nm +/- 12%
-
9420685700 Mag. Flywheel With Trigger Wheel Ass'yMag. Flywheel With Trigger Wheel Ass'y
-
10420627270 ShimShim
-
11420241549 Allen Screw M16 x 35. Tightening Torque 150 Nm +/- 7%Allen Screw M16 x 35. Tightening Torque 150 Nm +/- 7%
-
12420440854 Hex./Torx Flange Screw M8 x 16. Tightening Torque 30 Nm +/- 12%Hex./Torx Flange Screw M8 x 16. Tightening Torque 30 Nm +/- 12%
-
13420659113 Sprag ClutchSprag Clutch
-
14420659261 Sprag Clutch HousingSprag Clutch Housing
-
15420434238 Free Wheel Gear (64 T)Free Wheel Gear (64 T)
-
16420229475 Needle PinNeedle Pin
-
17420634741 Starter Double Gear (11/49 T)Starter Double Gear (11/49 T)
-
18420892429 Electric Starter Ass'y. Includes 18 To 19Electric Starter Ass'y. Includes 18 To 19
-
19420250145 O-Ring. Included In Gasket KitO-Ring. Included In Gasket Kit
-
20420440647 Hex./Torx Flange Screw M6 x 30. Tightening Torque 9 Nm +/- 12%Hex./Torx Flange Screw M6 x 30. Tightening Torque 9 Nm +/- 12%
-
21420866714 Tie RapTie Rap
-
22420881147 Repair Kit (Electric Starter)Repair Kit (Electric Starter)
