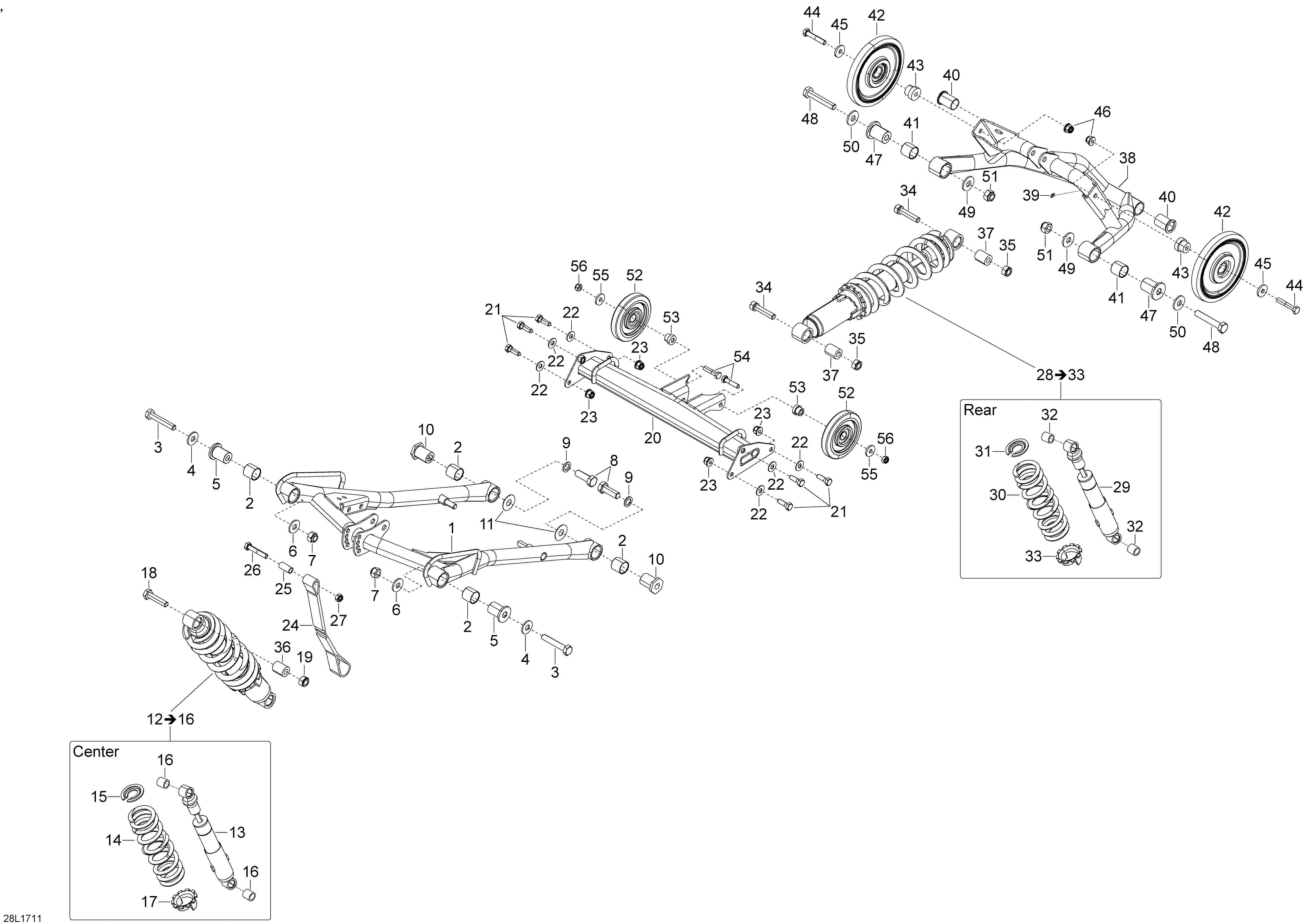

08- Rear Suspension для BRP Lynx BoonDocker STD, 2017 - 2017
-
№АртикулНазвание
-
1503193561 Front ArmFront Arm
-
2503191554 BushingBushing
-
3250000696 Hex. Cap Screw M10 x 60Hex. Cap Screw M10 x 60
-
4503191926 WasherWasher
-
5503194580 AxleAxle
-
6503191926 WasherWasher
-
7233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
8250000537 Hex. Cap Screw M12 x 35Hex. Cap Screw M12 x 35
-
9503192491 WasherWasher
-
10503194579 AxleAxle
-
11503190656 WasherWasher
-
13503193516 ShockShock
-
14503194211 Spring (239mm - 60N/mm)Spring (239mm - 60N/mm)
-
15230076 Spring SeatSpring Seat
-
1631094 Glide BearingGlide Bearing
-
17230078 Spring SeatSpring Seat
-
18207004544 Hex. Cap Screw M10 x 45Hex. Cap Screw M10 x 45
-
19232500416 Elastic Stop NutElastic Stop Nut
-
20503193623 Middle BeamMiddle Beam
-
21250000556 Hex. Cap Screw M8 x 25Hex. Cap Screw M8 x 25
-
22503192494 WasherWasher
-
23233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
24605355116 Limiter StrapLimiter Strap
-
25605455335 SleeveSleeve
-
26207084544 Hex. Cap Screw M8 x 45Hex. Cap Screw M8 x 45
-
27232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
29503193519 ShockShock
-
30503193848 Spring (280mm - 55N/mm). Model-3700Spring (280mm - 55N/mm). Model-3700
-
30503193847 Spring (280mm - 50N/mm). Model-3900Spring (280mm - 50N/mm). Model-3900
-
31230076 Spring SeatSpring Seat
-
3231094 Glide BearingGlide Bearing
-
33230078 Spring SeatSpring Seat
-
34205004544 Socket HD Screw M10 x 45Socket HD Screw M10 x 45
-
35232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
365446652 BushingBushing
-
375446652 BushingBushing
-
38503193571 Rear ArmRear Arm
-
39408200700 Grease FittingGrease Fitting
-
40503191640 CushionCushion
-
41503191554 BushingBushing
-
42503193852 Idler Wheel 140mmIdler Wheel 140mm
-
43605454461 SleeveSleeve
-
44207084544 Hex. Cap Screw M8 x 45Hex. Cap Screw M8 x 45
-
4520077 WasherWasher
-
46233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
47503190698 AxleAxle
-
48250000696 Hex. Cap Screw M10 x 60Hex. Cap Screw M10 x 60
-
49503191926 WasherWasher
-
50503191926 WasherWasher
-
51233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
52572043500 Idler Wheel 102mmIdler Wheel 102mm
-
53503193330 SleeveSleeve
-
54207083544 Hex. Cap Screw M8 x 35Hex. Cap Screw M8 x 35
-
5520077 WasherWasher
-
56232581414 Elastic Stop Nut M8Elastic Stop Nut M8
