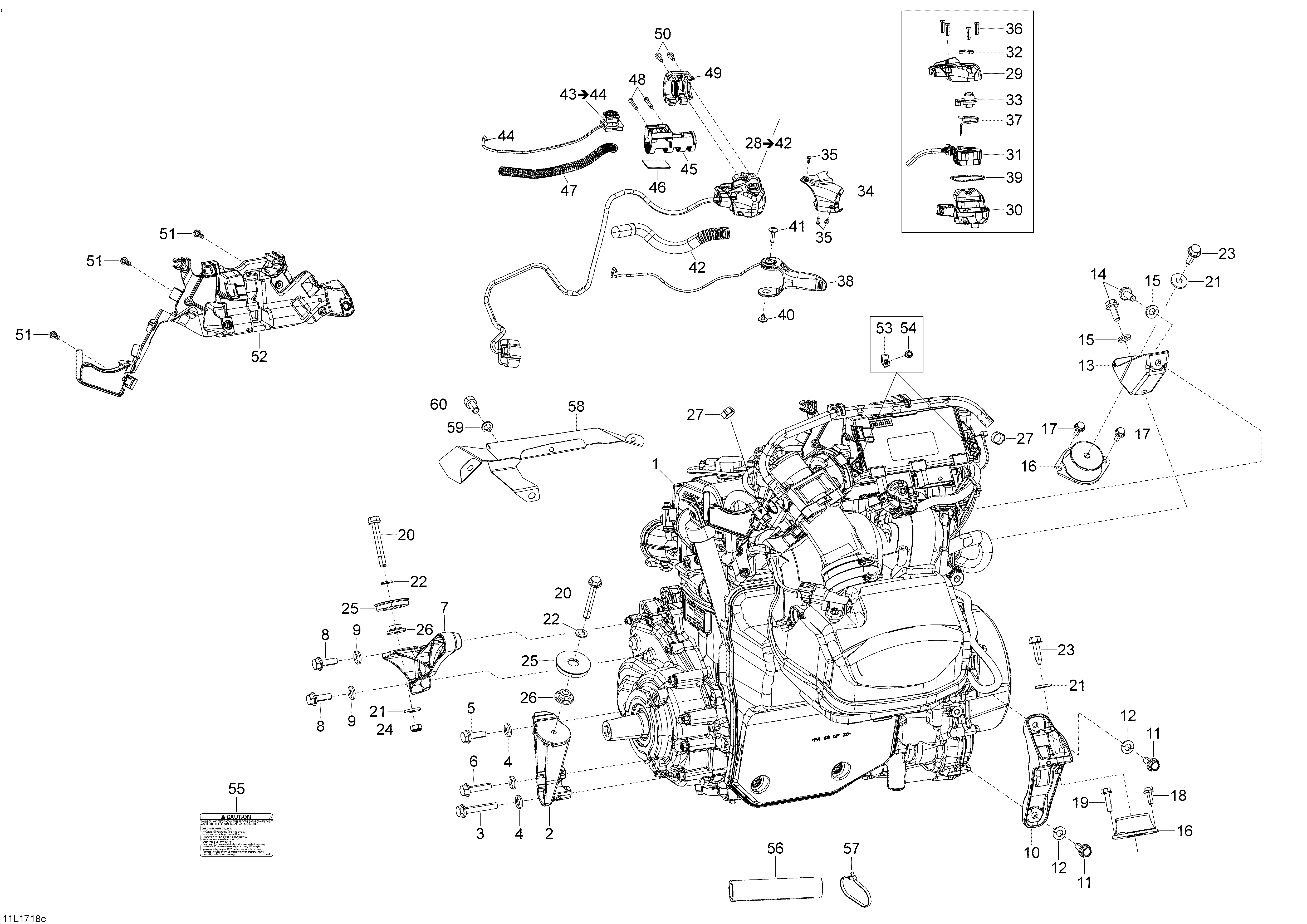

01- Engine And Engine Support 1200 4-TEC для BRP Lynx Commander Grand Tourer, 2017 - 2017
-
№АртикулНазвание
-
2512060591 Rear Support (PTO)Rear Support (PTO)
-
3207585086 Hex. Flange Screw M8 x 50, Scotch GripHex. Flange Screw M8 x 50, Scotch Grip
-
4234281474 Conical Spring Washer M8Conical Spring Washer M8
-
5207582586 Hex. Flange Screw M8 x 25, Scotch GripHex. Flange Screw M8 x 25, Scotch Grip
-
6207583586 Hex. Flange Screw M8 x 35, Scotch GripHex. Flange Screw M8 x 35, Scotch Grip
-
7512060593 Front Support (PTO)Front Support (PTO)
-
8207582586 Hex. Flange Screw M8 x 25, Scotch GripHex. Flange Screw M8 x 25, Scotch Grip
-
9234281474 Conical Spring Washer M8Conical Spring Washer M8
-
10512060594 Rear Support (MAG)Rear Support (MAG)
-
11207582044 Hex. Flange Screw M8 x 20, Scotch GripHex. Flange Screw M8 x 20, Scotch Grip
-
12234281474 Conical Spring Washer M8Conical Spring Washer M8
-
13512060596 Front Support (MAG)Front Support (MAG)
-
14207582044 Hex. Flange Screw M8 x 20, Scotch GripHex. Flange Screw M8 x 20, Scotch Grip
-
15234281474 Conical Spring Washer M8Conical Spring Washer M8
-
16512060729 Rubber MountRubber Mount
-
17207561644 Hex. Flange Screw M6 x 16, Scotch GripHex. Flange Screw M6 x 16, Scotch Grip
-
18207561644 Hex. Flange Screw M6 x 16, Scotch GripHex. Flange Screw M6 x 16, Scotch Grip
-
19207562534 Hex. Flange Screw M6 x 25, Scotch GripHex. Flange Screw M6 x 25, Scotch Grip
-
20207586044 Hex. Flange Screw M8 x 60, Scotch GripHex. Flange Screw M8 x 60, Scotch Grip
-
21503183200 WasherWasher
-
22250200008 Flat WasherFlat Washer
-
23250000257 Cone Screw M8 x 30Cone Screw M8 x 30
-
24232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
25512060244 StopperStopper
-
26512060285 SpacerSpacer
-
27293650046 Crimp ClampCrimp Clamp
-
28512061113 Housing Ass'y. Includes 28 To 42Housing Ass'y. Includes 28 To 42
-
32293250307 Shaft SealShaft Seal
-
34512060862 CapCap
-
35250000623 Torx Screw 2.9 x 9.5Torx Screw 2.9 x 9.5
-
36250000671 Torx ScrewTorx Screw
-
41250000528 Torx Screw M5 x 20Torx Screw M5 x 20
-
42515177716 Protector TubeProtector Tube
-
43515177362 Kill Switch. Includes 43 To 44Kill Switch. Includes 43 To 44
-
44515175232 Male TerminalMale Terminal
-
45512060844 SupportSupport
-
46294000973 Friction TapeFriction Tape
-
47515177716 Protector TubeProtector Tube
-
48250000263 Torx Screw #8-18Torx Screw #8-18
-
49512060987 Front HousingFront Housing
-
50250000632 Torx Screw M5 x 14Torx Screw M5 x 14
-
51241151640 Hex. Flange Screw K50 x 16Hex. Flange Screw K50 x 16
-
52512061012 ECU SupportECU Support
-
53250000079 Panel Nut M5Panel Nut M5
-
54207552044 Hex. Flange Screw M5 x 20Hex. Flange Screw M5 x 20
-
55516005521 Engine Oil Level Caution DecalEngine Oil Level Caution Decal
-
5639065 Aluminum Coated TubeAluminum Coated Tube
-
57414115200 Tie-Rap 180mmTie-Rap 180mm
-
58512060675 Heat ShieldHeat Shield
-
5920068 WasherWasher
-
60205002044 Socket HD Screw M10 x 16Socket HD Screw M10 x 16
