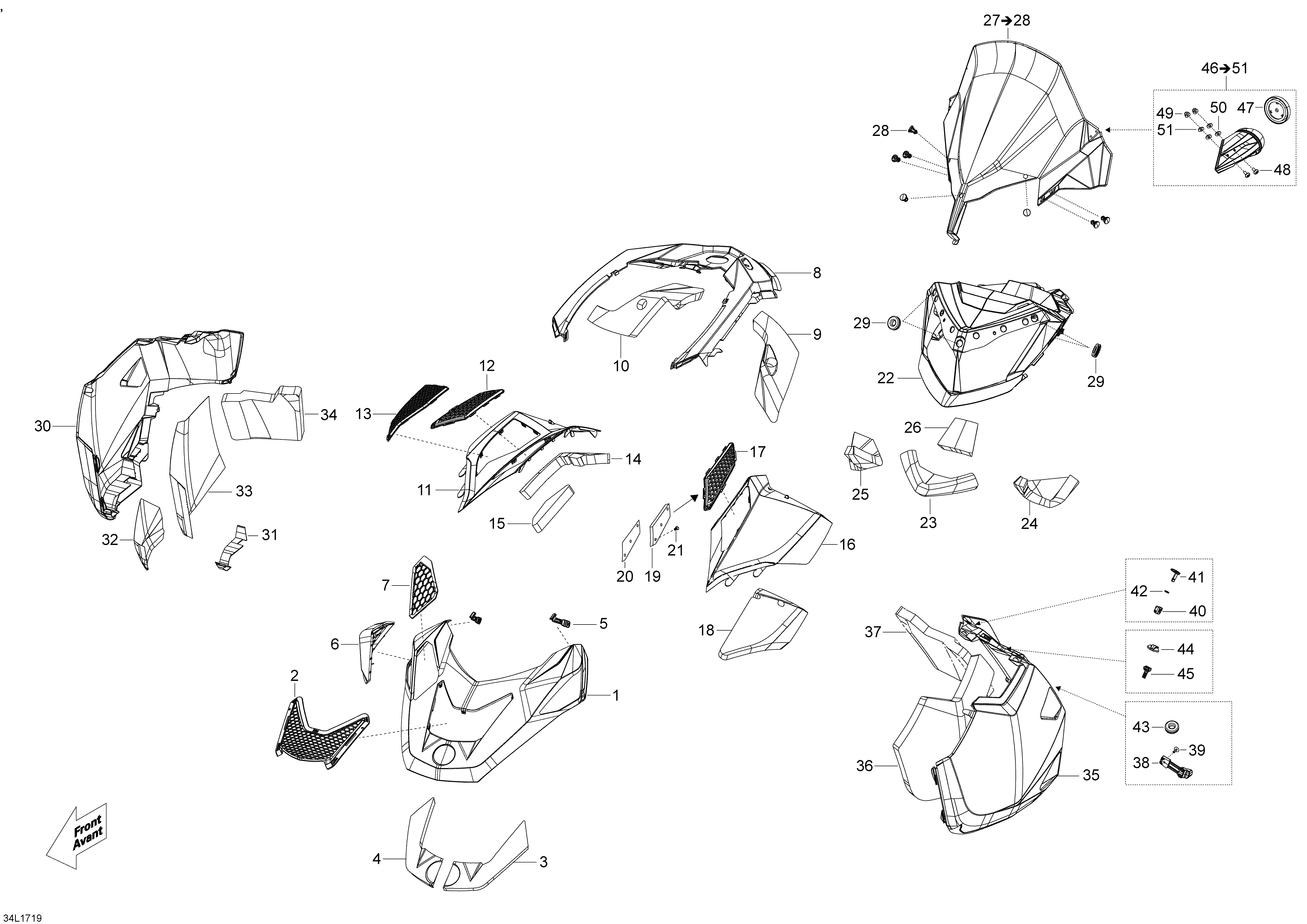

09- Hood And Windshield для BRP Lynx 69 Ranger Alpine - 2017
-
№АртикулНазвание
-
1517305257 White HoodWhite Hood
-
2517304843 Hood GrillHood Grill
-
3517304330 InsulatorInsulator
-
4517304214 InsulatorInsulator
-
5517304289 LatchLatch
-
6517304855 Intake GrillIntake Grill
-
7517304584 Intake GrillIntake Grill
-
8517305610 Black ConsoleBlack Console
-
9517305644 InsulatorInsulator
-
10517305326 InsulatorInsulator
-
11517304826 White RH Side Access PanelWhite RH Side Access Panel
-
12517304015 RH Access Panel GrillRH Access Panel Grill
-
13517304016 RH Lower Access Panel GrillRH Lower Access Panel Grill
-
14517304311 InsulatorInsulator
-
15517305987 InsulatorInsulator
-
16517304837 White LH Side Access PanelWhite LH Side Access Panel
-
17517303893 LH Access Panel GrillLH Access Panel Grill
-
18517304313 InsulatorInsulator
-
19517305311 InsulatorInsulator
-
20502007312 Grill PlateGrill Plate
-
21414644300 DartDart
-
22517305281 Black Indicator SupportBlack Indicator Support
-
23517304314 InsulatorInsulator
-
24517304315 InsulatorInsulator
-
25517304316 InsulatorInsulator
-
26517304319 InsulatorInsulator
-
27860201000 Windshield (580) Ass'y. Includes 27 To 28Windshield (580) Ass'y. Includes 27 To 28
-
28517304744 KnobKnob
-
29517303756 GrommetGrommet
-
30517304866 Black RH Side PanelBlack RH Side Panel
-
31517304215 Aluminum FoilAluminum Foil
-
32517304216 Aluminum FoilAluminum Foil
-
33517304512 Aluminum FoilAluminum Foil
-
34517304310 RH Foam RearRH Foam Rear
-
35517305533 Black LH Side PanelBlack LH Side Panel
-
36517303891 LH FoamLH Foam
-
37517304309 LH Foam RearLH Foam Rear
-
38517304572 Latch-PanelLatch-Panel
-
39293150108 Pop Rivet 3/16Pop Rivet 3/16
-
40517304297 Quarter-Turn Handle FastenerQuarter-Turn Handle Fastener
-
41517304296 Quarter-Turn HandleQuarter-Turn Handle
-
42517304538 Locking PlateLocking Plate
-
43517303756 GrommetGrommet
-
44517304075 End PieceEnd Piece
-
45517306057 Latch-PanelLatch-Panel
-
46517305787 RH/LH Mirror Ass'y. Includes 46 To 51RH/LH Mirror Ass'y. Includes 46 To 51
-
48250000721 Torx Truss Screw M6 x 16Torx Truss Screw M6 x 16
-
49232361493 Hex. Domed Nut M6Hex. Domed Nut M6
-
50250200024 Rubber Washer M5Rubber Washer M5
-
5120117 WasherWasher
