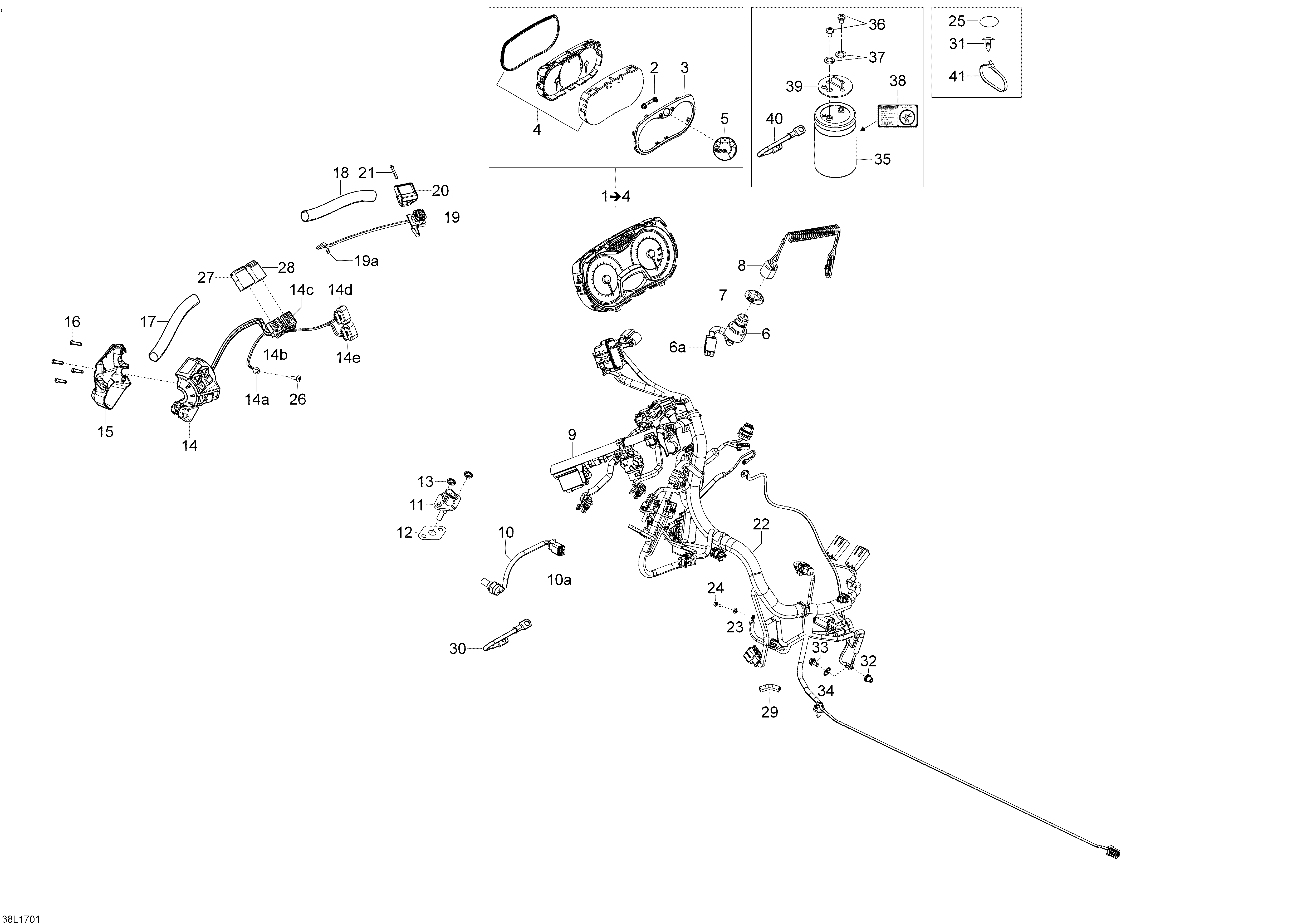

10- Electrical System для BRP Lynx Rave (2-Stroke) - 2017
-
№АртикулНазвание
-
1515177914 Speedometer. Includes 1 To 4Speedometer. Includes 1 To 4
-
1515177914 Speedometer. Includes 1 To 4Speedometer. Includes 1 To 4
-
1515177914 Speedometer. Includes 1 To 4Speedometer. Includes 1 To 4
-
1515177914 Speedometer. Includes 1 To 4Speedometer. Includes 1 To 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
2415129355 Speedometer ButtonSpeedometer Button
-
2415129355 Speedometer ButtonSpeedometer Button
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129370 Gauge RingGauge Ring
-
3415129370 Gauge RingGauge Ring
-
3415129370 Gauge RingGauge Ring
-
3415129370 Gauge RingGauge Ring
-
4415129349 LensLens
-
4415129349 LensLens
-
4415129349 LensLens
-
4415129349 LensLens
-
5516006224 BRP LogoBRP Logo
-
5516006224 BRP LogoBRP Logo
-
5516006224 BRP LogoBRP Logo
-
5516006224 BRP LogoBRP Logo
-
6515178049 Dess SwitchDess Switch
-
6515178225 Dess SwitchDess Switch
-
6515178225 Dess SwitchDess Switch
-
6515178225 Dess SwitchDess Switch
-
6a515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
6a515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
6a515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
6a515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
6a515175232 Male TerminalMale Terminal
-
6a515175232 Male TerminalMale Terminal
-
6a515175232 Male TerminalMale Terminal
-
6a515175232 Male TerminalMale Terminal
-
7278002963 Safety Switch NutSafety Switch Nut
-
7278002963 Safety Switch NutSafety Switch Nut
-
7278002963 Safety Switch NutSafety Switch Nut
-
7278002963 Safety Switch NutSafety Switch Nut
-
8515178044 DESS CapDESS Cap
-
8515178044 DESS CapDESS Cap
-
8515178044 DESS CapDESS Cap
-
8515178044 DESS CapDESS Cap
-
9515177134 PlatePlate
-
9515177134 PlatePlate
-
9515177134 PlatePlate
-
9515177134 PlatePlate
-
10515177813 Temperature SensorTemperature Sensor
-
10515177813 Temperature SensorTemperature Sensor
-
10515177813 Temperature SensorTemperature Sensor
-
10515177813 Temperature SensorTemperature Sensor
-
10a515175670 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
10a515175670 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
10a515175670 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
10a515175670 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
10a278000632 Female TerminalFemale Terminal
-
10a278000632 Female TerminalFemale Terminal
-
10a278000632 Female TerminalFemale Terminal
-
10a278000632 Female TerminalFemale Terminal
-
10a278001661 Female TerminalFemale Terminal
-
10a278001661 Female TerminalFemale Terminal
-
10a278001661 Female TerminalFemale Terminal
-
10a278001661 Female TerminalFemale Terminal
-
10a293000052 Sealing CapSealing Cap
-
10a293000052 Sealing CapSealing Cap
-
10a293000052 Sealing CapSealing Cap
-
10a293000052 Sealing CapSealing Cap
-
10a515175675 Female LockFemale Lock
-
10a515175675 Female LockFemale Lock
-
10a515175675 Female LockFemale Lock
-
10a515175675 Female LockFemale Lock
-
11515176366 Air Temperature SensorAir Temperature Sensor
-
11515176366 Air Temperature SensorAir Temperature Sensor
-
11515176366 Air Temperature SensorAir Temperature Sensor
-
11515176366 Air Temperature SensorAir Temperature Sensor
-
12508000769 RingRing
-
12508000769 RingRing
-
12508000769 RingRing
-
12508000769 RingRing
-
13389804300 Push NutPush Nut
-
13389804300 Push NutPush Nut
-
13389804300 Push NutPush Nut
-
13389804300 Push NutPush Nut
-
14515177676 HousingHousing
-
14515178198 HousingHousing
-
14515178198 HousingHousing
-
14515178198 HousingHousing
-
14a515175504 Ring TerminalRing Terminal
-
14a515175504 Ring TerminalRing Terminal
-
14a515175504 Ring TerminalRing Terminal
-
14a515175504 Ring TerminalRing Terminal
-
14b515175543 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
-
14b515175543 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
-
14b515175543 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
-
14b515175543 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
-
14b515175231 Female TerminalFemale Terminal
-
14b515175231 Female TerminalFemale Terminal
-
14b515175231 Female TerminalFemale Terminal
-
14b515175231 Female TerminalFemale Terminal
-
14c515175845 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
14c515175845 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
14c515175845 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
14c515175845 Female Housing, 4 CircuitsFemale Housing, 4 Circuits
-
14c515175231 Female TerminalFemale Terminal
-
14c515175231 Female TerminalFemale Terminal
-
14c515175231 Female TerminalFemale Terminal
-
14c515175231 Female TerminalFemale Terminal
-
14d710001930 Female Housing, 12 CircuitsFemale Housing, 12 Circuits
-
14d710001930 Female Housing, 12 CircuitsFemale Housing, 12 Circuits
-
14d710001930 Female Housing, 12 CircuitsFemale Housing, 12 Circuits
-
14d710001930 Female Housing, 12 CircuitsFemale Housing, 12 Circuits
-
14e710001928 Female Housing, 8 CircuitsFemale Housing, 8 Circuits
-
14e710001928 Female Housing, 8 CircuitsFemale Housing, 8 Circuits
-
14e710001928 Female Housing, 8 CircuitsFemale Housing, 8 Circuits
-
14e710001928 Female Housing, 8 CircuitsFemale Housing, 8 Circuits
-
15515177147 Housing PlateHousing Plate
-
15515177147 Housing PlateHousing Plate
-
15515177147 Housing PlateHousing Plate
-
15515177147 Housing PlateHousing Plate
-
16250000671 Torx ScrewTorx Screw
-
16250000671 Torx ScrewTorx Screw
-
16250000671 Torx ScrewTorx Screw
-
16250000671 Torx ScrewTorx Screw
-
17415129879 Protector TubeProtector Tube
-
17415129879 Protector TubeProtector Tube
-
17415129879 Protector TubeProtector Tube
-
17415129879 Protector TubeProtector Tube
-
18415129879 Protector TubeProtector Tube
-
18415129879 Protector TubeProtector Tube
-
18415129879 Protector TubeProtector Tube
-
18415129879 Protector TubeProtector Tube
-
19515177362 Kill SwitchKill Switch
-
19515177362 Kill SwitchKill Switch
-
19515177362 Kill SwitchKill Switch
-
19515177362 Kill SwitchKill Switch
-
19a515175232 Male TerminalMale Terminal
-
19a515175232 Male TerminalMale Terminal
-
19a515175232 Male TerminalMale Terminal
-
19a515175232 Male TerminalMale Terminal
-
20515177310 SupportSupport
-
20515177310 SupportSupport
-
20515177310 SupportSupport
-
20515177310 SupportSupport
-
21250000263 Torx ScrewTorx Screw
-
21250000263 Torx ScrewTorx Screw
-
21250000263 Torx ScrewTorx Screw
-
21250000263 Torx ScrewTorx Screw
-
22515177984 Main HarnessMain Harness
-
22515177984 Main HarnessMain Harness
-
22515177984 Main HarnessMain Harness
-
22515177984 Main HarnessMain Harness
-
23234141601 Lock WasherLock Washer
-
23234141601 Lock WasherLock Washer
-
23234141601 Lock WasherLock Washer
-
23234141601 Lock WasherLock Washer
-
24250000741 Torx Truss Screw M4 x 8Torx Truss Screw M4 x 8
-
24250000741 Torx Truss Screw M4 x 8Torx Truss Screw M4 x 8
-
24250000741 Torx Truss Screw M4 x 8Torx Truss Screw M4 x 8
-
24250000741 Torx Truss Screw M4 x 8Torx Truss Screw M4 x 8
-
25518325560 Adhesive PatchAdhesive Patch
-
25518325560 Adhesive PatchAdhesive Patch
-
25518325560 Adhesive PatchAdhesive Patch
-
25518325560 Adhesive PatchAdhesive Patch
-
26250000690 Forming Screw M5 x 10Forming Screw M5 x 10
-
26250000690 Forming Screw M5 x 10Forming Screw M5 x 10
-
26250000690 Forming Screw M5 x 10Forming Screw M5 x 10
-
26250000690 Forming Screw M5 x 10Forming Screw M5 x 10
-
27515175662 Male Housing, 6 CirsuitsMale Housing, 6 Cirsuits
-
27515175662 Male Housing, 6 CirsuitsMale Housing, 6 Cirsuits
-
27515175662 Male Housing, 6 CirsuitsMale Housing, 6 Cirsuits
-
27515175662 Male Housing, 6 CirsuitsMale Housing, 6 Cirsuits
-
27515175232 Male TerminalMale Terminal
-
27515175232 Male TerminalMale Terminal
-
27515175232 Male TerminalMale Terminal
-
27515175232 Male TerminalMale Terminal
-
28515175846 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
28515175846 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
28515175846 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
28515175846 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
28515175232 Male TerminalMale Terminal
-
28515175232 Male TerminalMale Terminal
-
28515175232 Male TerminalMale Terminal
-
28515175232 Male TerminalMale Terminal
-
30515177289 Ground WireGround Wire
-
30515177289 Ground WireGround Wire
-
30515177289 Ground WireGround Wire
-
30515177289 Ground WireGround Wire
-
31414644300 DartDart
-
31414644300 DartDart
-
31414644300 DartDart
-
31414644300 DartDart
-
32233261414 Hex. Flange Nut M6Hex. Flange Nut M6
-
32233261414 Hex. Flange Nut M6Hex. Flange Nut M6
-
32233261414 Hex. Flange Nut M6Hex. Flange Nut M6
-
32233261414 Hex. Flange Nut M6Hex. Flange Nut M6
-
33207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
33207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
33207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
33207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
34250200041 Serrated Lock WasherSerrated Lock Washer
-
34250200041 Serrated Lock WasherSerrated Lock Washer
-
34250200041 Serrated Lock WasherSerrated Lock Washer
-
34250200041 Serrated Lock WasherSerrated Lock Washer
-
35515177272 CapacitorCapacitor
-
35515177272 CapacitorCapacitor
-
35515177272 CapacitorCapacitor
-
35515177272 CapacitorCapacitor
-
36250000462 Socket Head Screw M10 x 32Socket Head Screw M10 x 32
-
36250000462 Socket Head Screw M10 x 32Socket Head Screw M10 x 32
-
36250000462 Socket Head Screw M10 x 32Socket Head Screw M10 x 32
-
36250000462 Socket Head Screw M10 x 32Socket Head Screw M10 x 32
-
37250200026 Lock WasherLock Washer
-
37250200026 Lock WasherLock Washer
-
37250200026 Lock WasherLock Washer
-
37250200026 Lock WasherLock Washer
-
38516006206 Capacitor DecalCapacitor Decal
-
38516006206 Capacitor DecalCapacitor Decal
-
38516006206 Capacitor DecalCapacitor Decal
-
38516006206 Capacitor DecalCapacitor Decal
-
39515177193 CapCap
-
39515177193 CapCap
-
39515177193 CapCap
-
39515177193 CapCap
-
40515178052 Ground WireGround Wire
-
40515178052 Ground WireGround Wire
-
40515178052 Ground WireGround Wire
-
40515178052 Ground WireGround Wire
-
41414115200 Tie Rap 180mmTie Rap 180mm
-
41414115200 Tie Rap 180mmTie Rap 180mm
-
41414115200 Tie Rap 180mmTie Rap 180mm
-
41414115200 Tie Rap 180mmTie Rap 180mm
-
41293750008 Tie Rap 350mmTie Rap 350mm
-
41293750008 Tie Rap 350mmTie Rap 350mm
-
41293750008 Tie Rap 350mmTie Rap 350mm
-
41293750008 Tie Rap 350mmTie Rap 350mm
-
41293750001 Tie Rap 94mmTie Rap 94mm
-
41293750001 Tie Rap 94mmTie Rap 94mm
-
41293750001 Tie Rap 94mmTie Rap 94mm
-
41293750001 Tie Rap 94mmTie Rap 94mm
-
41605627000 Tie RapTie Rap
-
41605627000 Tie RapTie Rap
-
41605627000 Tie RapTie Rap
-
41605627000 Tie RapTie Rap
