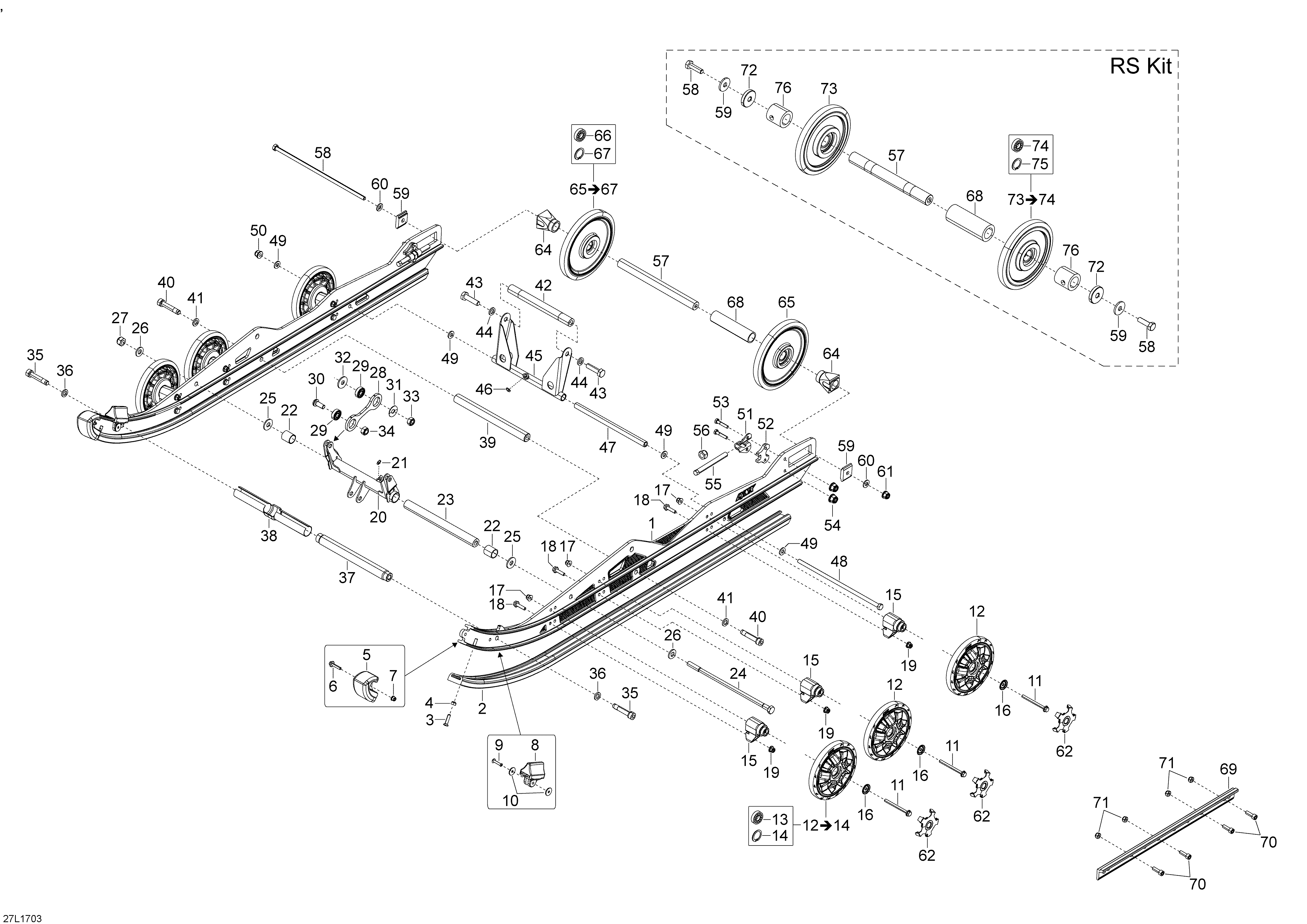

08- Rear Suspension для BRP Lynx Rave RE - 2017
-
№АртикулНазвание
-
1503194735 LH Runner. Model-std - 600 E-TECLH Runner. Model-std - 600 E-TEC
-
1503194728 Red LH Runner. Model-std - 800 E-TECRed LH Runner. Model-std - 800 E-TEC
-
1503194736 RH Runner. Model-std - 600 E-TECRH Runner. Model-std - 600 E-TEC
-
1503194729 Red RH Runner. Model-std - 800 E-TECRed RH Runner. Model-std - 800 E-TEC
-
1503194739 Runner. Model-RS Kit - 600 E-TECRunner. Model-RS Kit - 600 E-TEC
-
1503194738 Red Runner. Model-RS Kit - 800 E-TECRed Runner. Model-RS Kit - 800 E-TEC
-
2503192618 Slider ShoeSlider Shoe
-
3208562531 Screw M6 x 25Screw M6 x 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503192299 ProtectorProtector
-
6207652544 Hex. Flange Screw M5 x 25Hex. Flange Screw M5 x 25
-
7233251434 Elastic Flange Nut M5Elastic Flange Nut M5
-
8503192106 Rubber StopperRubber Stopper
-
9293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
10503191273 WasherWasher
-
11207667056 Hex. Flange Screw M6 x 70. Model-stdHex. Flange Screw M6 x 70. Model-std
-
11207667056 Hex. Flange Screw M6 x 70. Model-RS KitHex. Flange Screw M6 x 70. Model-RS Kit
-
12503193734 Wheel 141mm. Includes 12 To 14, Model-stdWheel 141mm. Includes 12 To 14, Model-std
-
12503193734 Wheel 141mm. Includes 12 To 14, Model-RS KitWheel 141mm. Includes 12 To 14, Model-RS Kit
-
13503190396 Ball BearingBall Bearing
-
15503193894 Support. Model-stdSupport. Model-std
-
15503193894 Support. Model-RS KitSupport. Model-RS Kit
-
16503191820 Cup Washer. Model-stdCup Washer. Model-std
-
16503191820 Cup Washer. Model-RS KitCup Washer. Model-RS Kit
-
17233261466 Elastic Flange Nut M6. Model-stdElastic Flange Nut M6. Model-std
-
17233261466 Elastic Flange Nut M6. Model-RS KitElastic Flange Nut M6. Model-RS Kit
-
18207662556 Hex. Flange Screw M6 x 25. Model-stdHex. Flange Screw M6 x 25. Model-std
-
18207662556 Hex. Flange Screw M6 x 25. Model-RS KitHex. Flange Screw M6 x 25. Model-RS Kit
-
19233261466 Elastic Flange Nut M6. Model-stdElastic Flange Nut M6. Model-std
-
19233261466 Elastic Flange Nut M6. Model-RS KitElastic Flange Nut M6. Model-RS Kit
-
20503193580 Front SwingFront Swing
-
21408200700 Grease FittingGrease Fitting
-
22503193822 BushingBushing
-
23503193893 Lower ShaftLower Shaft
-
24503193227 Bolt M10 x 251Bolt M10 x 251
-
25503191926 WasherWasher
-
26250200138 WasherWasher
-
27233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
28605254159 Connecting RodConnecting Rod
-
29605631003 Ball BearingBall Bearing
-
30205402546 Socket HD Screw M10 x 25Socket HD Screw M10 x 25
-
3125004 Spring CupSpring Cup
-
32234002600 Washer M10Washer M10
-
33233401414 Lock Spring Nut M10Lock Spring Nut M10
-
34232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
35205505054 Socket HD Screw M10 x 50Socket HD Screw M10 x 50
-
36503192496 WasherWasher
-
37605353958 ShaftShaft
-
38605355096 Limiter Strap RetainerLimiter Strap Retainer
-
395343471 ShaftShaft
-
40205505054 Socket HD Screw M10 x 50Socket HD Screw M10 x 50
-
41503192496 WasherWasher
-
42503193638 Lower ShaftLower Shaft
-
43207204044 Hex. Cap Screw M10 x 40Hex. Cap Screw M10 x 40
-
44503192496 WasherWasher
-
45503194342 Rear SwingRear Swing
-
46408200700 Grease FittingGrease Fitting
-
47503189156 Pivot AxlePivot Axle
-
48503192440 Bolt M8 x 248. Model-stdBolt M8 x 248. Model-std
-
48503194069 Bolt M8 x 261. Model-RS KitBolt M8 x 261. Model-RS Kit
-
49503192494 WasherWasher
-
50233281466 Elastic Flange Nut M8Elastic Flange Nut M8
-
51503192814 TensionerTensioner
-
52503193250 SpacerSpacer
-
53207063054 Hex. Cap Screw M6 x 30Hex. Cap Screw M6 x 30
-
54233261466 Elastic Flange Nut M6Elastic Flange Nut M6
-
55230100054 Hex. Cap Screw M10 x 100Hex. Cap Screw M10 x 100
-
56233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
57503194105 Rear Shaft. Model-stdRear Shaft. Model-std
-
57503194091 Rear Shaft. Model-RS KitRear Shaft. Model-RS Kit
-
58503194069 Bolt M8 x 261. Model-stdBolt M8 x 261. Model-std
-
58250000592 Hex. Cap Screw M10 x 35. Model-RS KitHex. Cap Screw M10 x 35. Model-RS Kit
-
59503194067 Axle Slider. Model-stdAxle Slider. Model-std
-
59503183300 Washer. Model-RS KitWasher. Model-RS Kit
-
60250200159 Spring Washer. Model-stdSpring Washer. Model-std
-
61233281466 Elastic Flange Nut M8. Model-stdElastic Flange Nut M8. Model-std
-
62503193884 White Wheel Cap. Model-stdWhite Wheel Cap. Model-std
-
62503193884 White Wheel Cap. Model-RS KitWhite Wheel Cap. Model-RS Kit
-
64503190428 Spacer. Model-stdSpacer. Model-std
-
65503192140 Wheel 165mm. Includes 65 To 67, Model-stdWheel 165mm. Includes 65 To 67, Model-std
-
66503190396 Ball BearingBall Bearing
-
67415129371 CirclipCirclip
-
68503191263 Spacer. Model-stdSpacer. Model-std
-
685448027 Spacer. Model-RS KitSpacer. Model-RS Kit
-
69503194288 Rail Reinforcement. Model-RS KitRail Reinforcement. Model-RS Kit
-
70205082554 Socket HD Screw M8 x 25. Model-RS KitSocket HD Screw M8 x 25. Model-RS Kit
-
71232581414 Elastic Stop Nut M8. Model-RS KitElastic Stop Nut M8. Model-RS Kit
-
72503192735 Rear Axle Washer. Model-RS KitRear Axle Washer. Model-RS Kit
-
73503194127 Wheel 165mm. Includes 73 To 75, Model-RS KitWheel 165mm. Includes 73 To 75, Model-RS Kit
-
74293350055 Ball BearingBall Bearing
-
765441512 Spacer. Model-RS KitSpacer. Model-RS Kit
