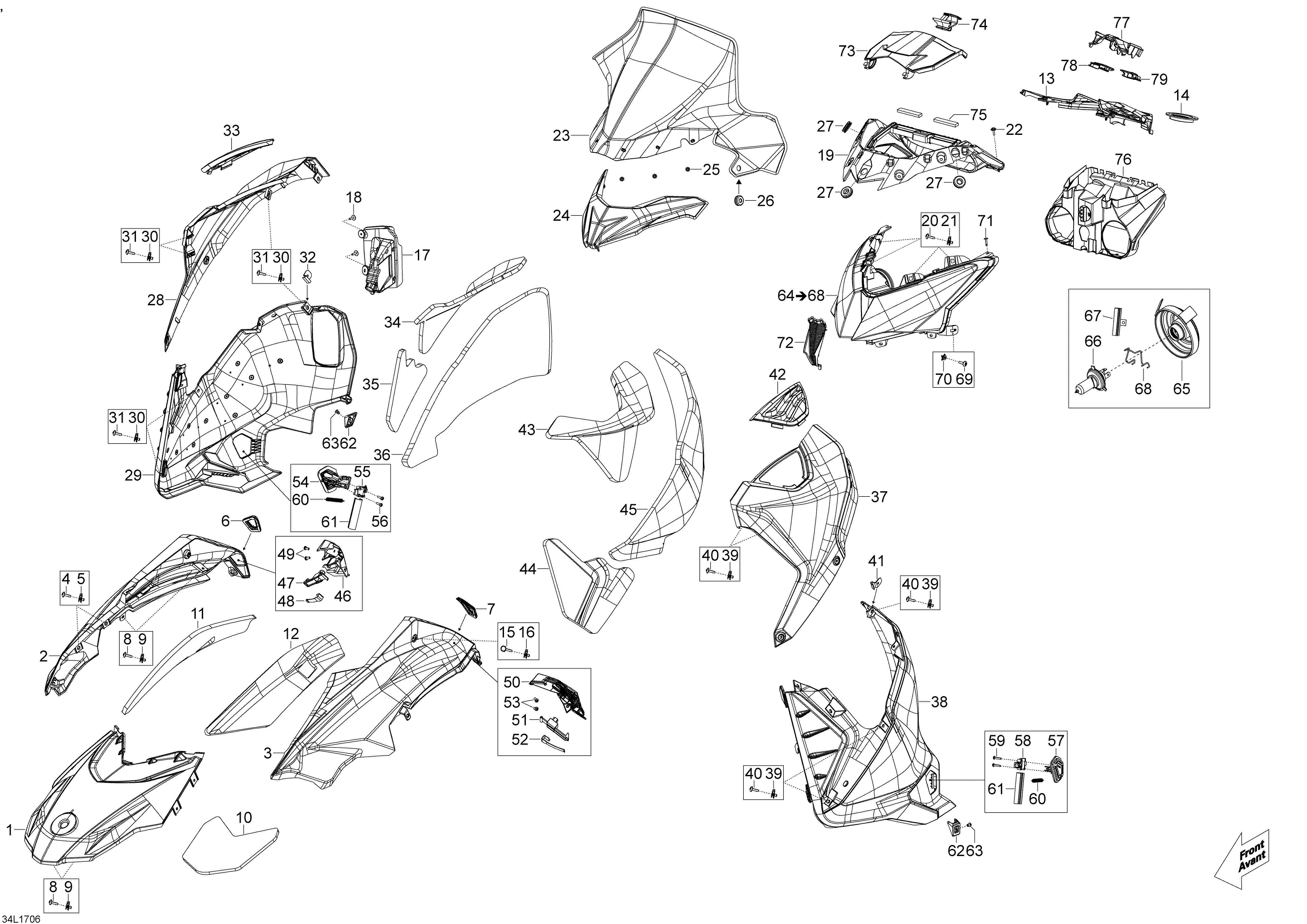

09- Hood And Windshield для BRP Lynx XTRIM SC (2-Stroke) - 2017
-
№АртикулНазвание
-
1517305566 White HoodWhite Hood
-
2517305418 RH HoodRH Hood
-
3517305419 LH HoodLH Hood
-
4250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
5250000079 Panel Nut M5Panel Nut M5
-
6517305344 RH Rubber ButtonRH Rubber Button
-
7517305345 LH Rubber ButtonLH Rubber Button
-
8250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
9250000079 Panel Nut M5Panel Nut M5
-
10517305480 FoamFoam
-
11517305481 FoamFoam
-
12517305482 FoamFoam
-
13517305205 Console RearConsole Rear
-
14517304518 Console NutConsole Nut
-
15517305531 KnobKnob
-
16250000079 Panel Nut M5Panel Nut M5
-
17517305060 Black RH ConsoleBlack RH Console
-
18250000725 Screw M4 x 16Screw M4 x 16
-
19517305511 Indicator SupportIndicator Support
-
20250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
21250000079 Panel Nut M5Panel Nut M5
-
22250000587 Torx Truss Screw M5 x 26Torx Truss Screw M5 x 26
-
24517305307 SupportSupport
-
25732610072 Push NutPush Nut
-
26517302841 GrommetGrommet
-
27517303756 GrommetGrommet
-
28517305425 White RH PanelWhite RH Panel
-
29517305249 RH PanelRH Panel
-
30250000079 Panel Nut M5Panel Nut M5
-
31250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
32517305515 Guide PlateGuide Plate
-
33517305251 GrillGrill
-
34517306358 FoamFoam
-
35517306359 FoamFoam
-
36517306360 FoamFoam
-
37517305426 White LH PanelWhite LH Panel
-
38517305253 Black LH PanelBlack LH Panel
-
39250000079 Panel Nut M5Panel Nut M5
-
40250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
41517305515 Guide PlateGuide Plate
-
42517305254 GrillGrill
-
43517305488 FoamFoam
-
44517305489 FoamFoam
-
45517305490 FoamFoam
-
46517305315 RH Lock BodyRH Lock Body
-
47517306019 Lock ArmLock Arm
-
48517305317 Lock SpringLock Spring
-
49205951046 Socket HD Screw M5 x 10Socket HD Screw M5 x 10
-
50517305319 LH Lock BodyLH Lock Body
-
51517306019 Lock ArmLock Arm
-
52517305317 Lock SpringLock Spring
-
53205951046 Socket HD Screw M5 x 10Socket HD Screw M5 x 10
-
54517305760 RH Side Panel Bottom LockRH Side Panel Bottom Lock
-
55517305761 RH Bottom Lock Fixing PartRH Bottom Lock Fixing Part
-
56250000451 Torx Flange Screw K40 x 20Torx Flange Screw K40 x 20
-
57517305758 LH Side Panel Bottom LockLH Side Panel Bottom Lock
-
58517305759 LH Bottom Lock Fixing PartLH Bottom Lock Fixing Part
-
59250000451 Torx Flange Screw K40 x 20Torx Flange Screw K40 x 20
-
60517305535 Side Panel Bottom Lock SpringSide Panel Bottom Lock Spring
-
61517305452 Bottom Lock SleeveBottom Lock Sleeve
-
62517305323 Side Panel SupportSide Panel Support
-
63390909100 RivetRivet
-
64517306180 Headlamp. Includes 64 To 68Headlamp. Includes 64 To 68
-
65219400070 CapCap
-
66515176274 H4 Halogen Bulb (60/55W, 12V)H4 Halogen Bulb (60/55W, 12V)
-
67219800282 HolderHolder
-
68219800281 SpringSpring
-
69250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
70250100035 Jack Nut M5Jack Nut M5
-
71250000725 Plastite Screw M4 x 16Plastite Screw M4 x 16
-
72517305350 CapCap
-
73517304912 CoverCover
-
74517304917 LatchLatch
-
75517305157 SealSeal
-
76517305095 TrunkTrunk
-
77517304970 SupportSupport
-
78517305147 CapCap
-
79517305148 CapCap
