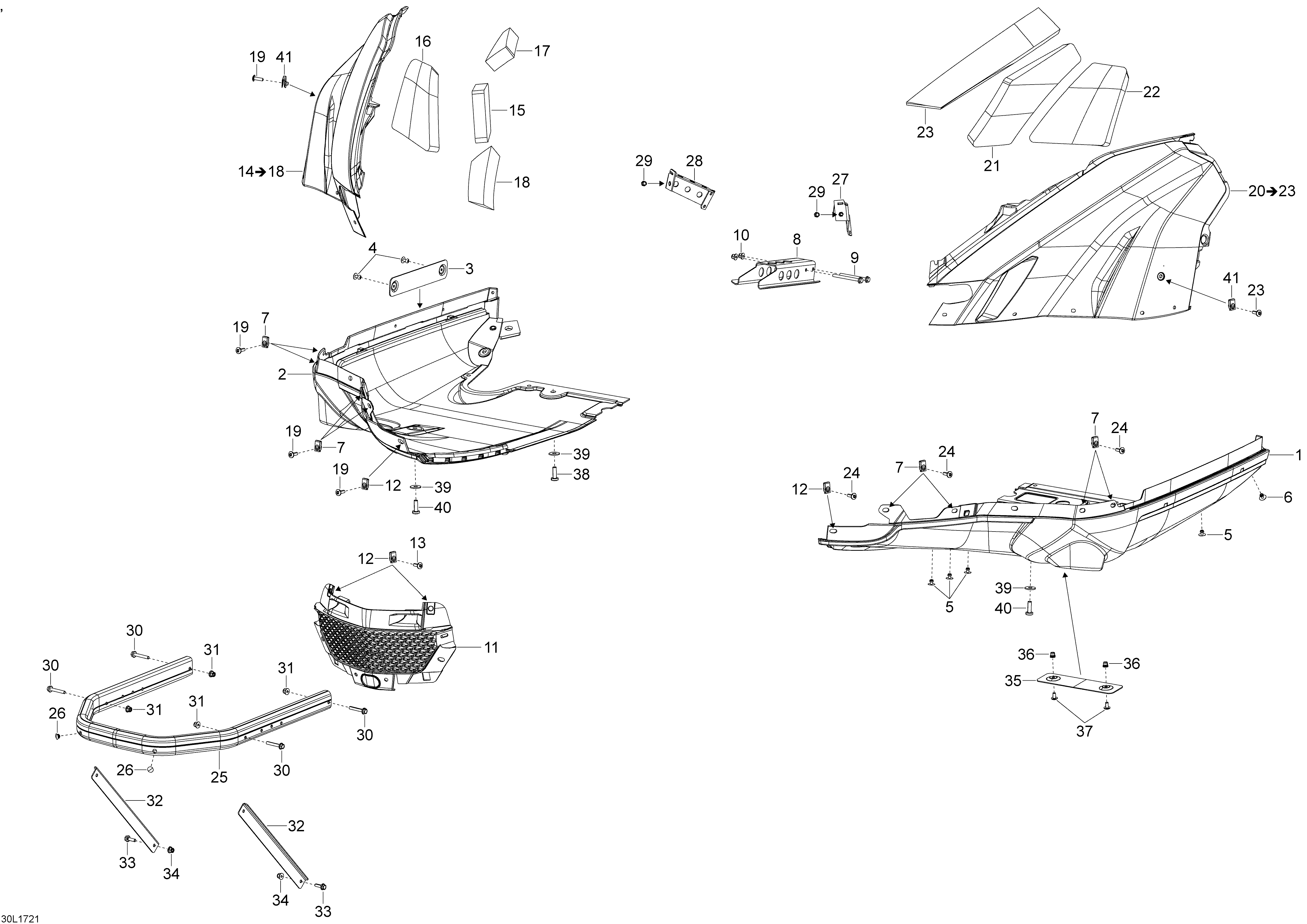

09- Bottom Pan для BRP Lynx 69 YETI STD, 2017 - 2017
-
№АртикулНазвание
-
1502007447 Black LH Lower Bottom PanBlack LH Lower Bottom Pan
-
2502007446 Black RH Lower Bottom PanBlack RH Lower Bottom Pan
-
3502007255 Heat Insulation PlateHeat Insulation Plate
-
4293150211 RivetRivet
-
5293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
6293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
7250000048 Extruded Panel Nut M6Extruded Panel Nut M6
-
8502007688 SupportSupport
-
9207667056 Hex. Flange Screw M6 x 70Hex. Flange Screw M6 x 70
-
10233261414 Hex. Flange Elastic Nut M6Hex. Flange Elastic Nut M6
-
11502007140 Front GrillFront Grill
-
12250000048 Extruded Panel Nut M6Extruded Panel Nut M6
-
13250000722 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
14502007292 Black RH Bottom Pan Ass'y. Includes 14 To 18Black RH Bottom Pan Ass'y. Includes 14 To 18
-
15502007133 InsulatorInsulator
-
16502007132 InsulatorInsulator
-
17508000828 Heat ShieldHeat Shield
-
18502007009 InsulatorInsulator
-
19250000722 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
20502007294 Black LH Bottom Pan Ass'y. Includes 20 To 23Black LH Bottom Pan Ass'y. Includes 20 To 23
-
21502007088 InsulatorInsulator
-
22502007131 InsulatorInsulator
-
23502007185 InsulatorInsulator
-
24250000722 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
25502007685 Black BumperBlack Bumper
-
26293730047 Black DartBlack Dart
-
27502007535 LH Bottom Pan FastenerLH Bottom Pan Fastener
-
28502007536 RH Bottom Pan FastenerRH Bottom Pan Fastener
-
29605636003 Clinch Nut Hexsert M6Clinch Nut Hexsert M6
-
30207664044 Hex. Flange Screw M6 x 40Hex. Flange Screw M6 x 40
-
31233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
32502006927 Bumper SupportBumper Support
-
33207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
34233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
35518328879 Oil PlateOil Plate
-
36605636003 Clinch Nut Hexsert M6Clinch Nut Hexsert M6
-
37250000722 Torx Screw M6 x 20Torx Screw M6 x 20
-
38250000752 Torx Screw M8 x 25Torx Screw M8 x 25
-
39234082410 Flat WasherFlat Washer
-
40250000722 Torx Screw M6 x 20Torx Screw M6 x 20
-
41250000048 Extruded Panel Nut M6Extruded Panel Nut M6
