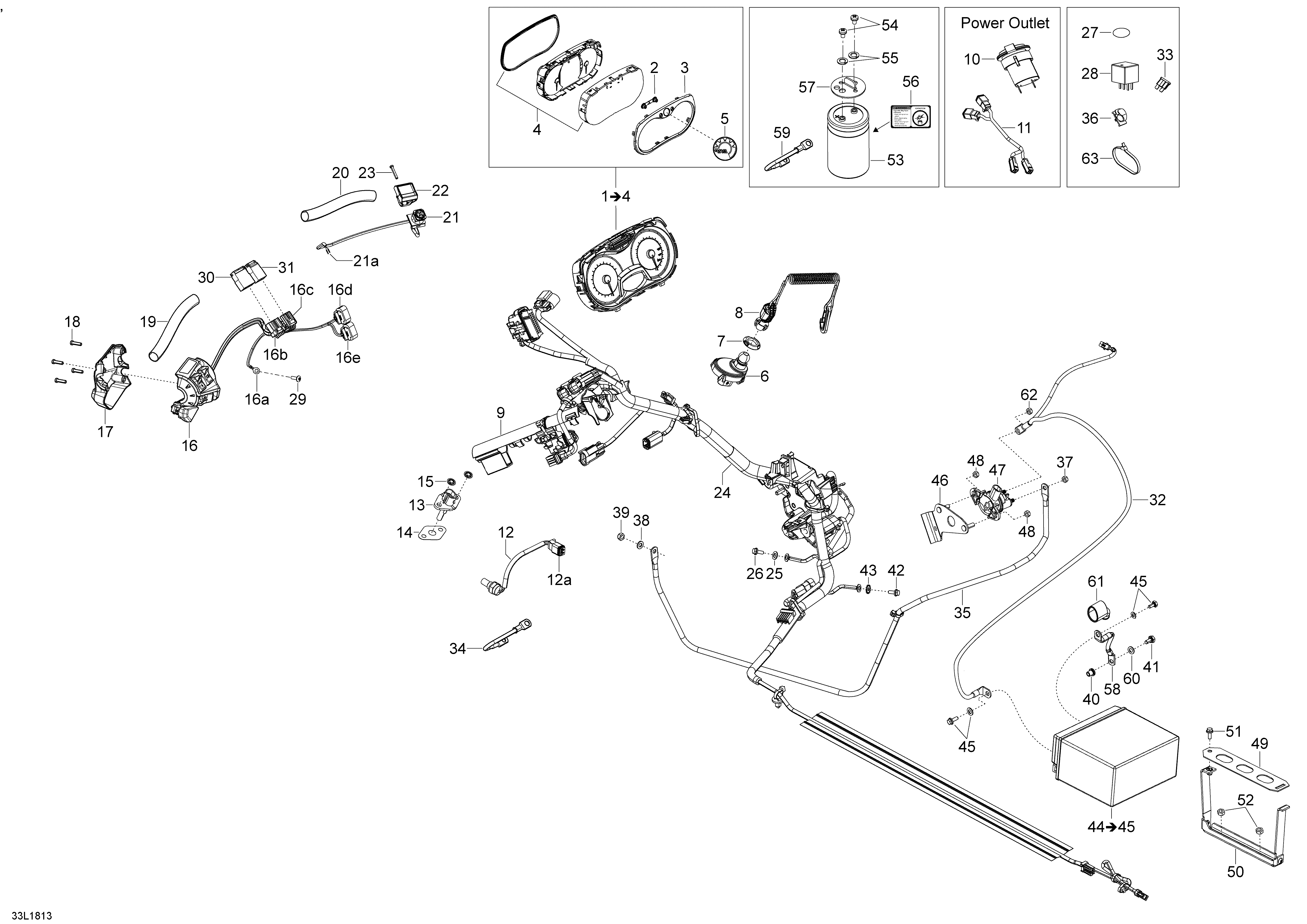

10- Electrical System для BRP Lynx 49 Ranger 600 HO E-TEC - 2018
-
№АртикулНазвание
-
1515177910 Speedometer. Includes 1 To 4Speedometer. Includes 1 To 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129370 Gauge RingGauge Ring
-
4415129349 LensLens
-
5516006224 BRP Logo, 20 mmBRP Logo, 20 mm
-
6515178225 DESS SwitchDESS Switch
-
7278002963 Safety NutSafety Nut
-
8515178044 DESS CapDESS Cap
-
9515177134 Connector PlateConnector Plate
-
10710001248 Outlet DCOutlet DC
-
11515177400 12 Volts Outlet Harness12 Volts Outlet Harness
-
12515177813 Temperature SensorTemperature Sensor
-
12a515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
12a278000632 Female TerminalFemale Terminal
-
12a278001661 Female TerminalFemale Terminal
-
12a293000052 Sealing CapSealing Cap
-
12a515175675 Female Lock, 2 CircuitsFemale Lock, 2 Circuits
-
13515176366 Air Temperature SensorAir Temperature Sensor
-
14508000769 SealSeal
-
15389804300 Push NutPush Nut
-
16515178197 LH Switch HousingLH Switch Housing
-
16a515175504 Ring TerminalRing Terminal
-
16b515175543 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
16b515175231 Female TerminalFemale Terminal
-
16c515175845 Female Terminal Housing, 4 CircuitsFemale Terminal Housing, 4 Circuits
-
16c515175231 Female TerminalFemale Terminal
-
16d710001930 Female Housing, 12 CircuitsFemale Housing, 12 Circuits
-
16e710001928 HousingHousing
-
17515177147 Housing PlateHousing Plate
-
18250000671 Torx ScrewTorx Screw
-
19415129879 Protector TubeProtector Tube
-
20415129879 Protector TubeProtector Tube
-
21515177362 Kill SwitchKill Switch
-
21a515175232 Male TerminalMale Terminal
-
22515177310 Kill Switch SupportKill Switch Support
-
23250000263 Torx Screw #8-18Torx Screw #8-18
-
24515178114 Wiring HarnessWiring Harness
-
25234141601 Lock Washer 4 mmLock Washer 4 mm
-
26250000741 Screw-Torx Button Head M4 X 8Screw-Torx Button Head M4 X 8
-
27518325560 Adhesive PatchAdhesive Patch
-
28515177041 RelayRelay
-
29250000690 Pan Screw Forming, 7500CPan Screw Forming, 7500C
-
30515175662 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
30515175232 Male TerminalMale Terminal
-
31515175846 Male Terminal Housing, 4 CircuitsMale Terminal Housing, 4 Circuits
-
31515175232 Male TerminalMale Terminal
-
32515177496 Battery Cable With ChargingBattery Cable With Charging
-
33278001443 Fuse, 25 AmperesFuse, 25 Amperes
-
34515177289 Ground WireGround Wire
-
35515177208 Battery/Starter WireBattery/Starter Wire
-
36515177066 ClipClip
-
37232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
38234061410 Flat Washer 6 mmFlat Washer 6 mm
-
39232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
40293450275 InsertInsert
-
41207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
42207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
43250200041 Lock Washer Serrated M6Lock Washer Serrated M6
-
44410301203 Battery Ass'y, 18 Amperes. Includes 44 To 45Battery Ass'y, 18 Amperes. Includes 44 To 45
-
45250000282 Battery Bolt KitBattery Bolt Kit
-
46515177558 Relay SupportRelay Support
-
47278003012 Starter RelayStarter Relay
-
48233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
49518327281 Battery StrapBattery Strap
-
50518327282 Battery StrapBattery Strap
-
51207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
52233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
53515177272 CapacitorCapacitor
-
54250000462 Socket Head Screw M10 X 32Socket Head Screw M10 X 32
-
55250200026 Lock washerLock washer
-
56516006206 Capacitor DecalCapacitor Decal
-
57515177193 CapCap
-
58515176780 Ground WireGround Wire
-
59515178052 Ground WireGround Wire
-
60234061410 Flat Washer 6 mmFlat Washer 6 mm
-
61570151000 Protection CapProtection Cap
-
62232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
63414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
63293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
63293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
63605627000 Tie-RapTie-Rap
