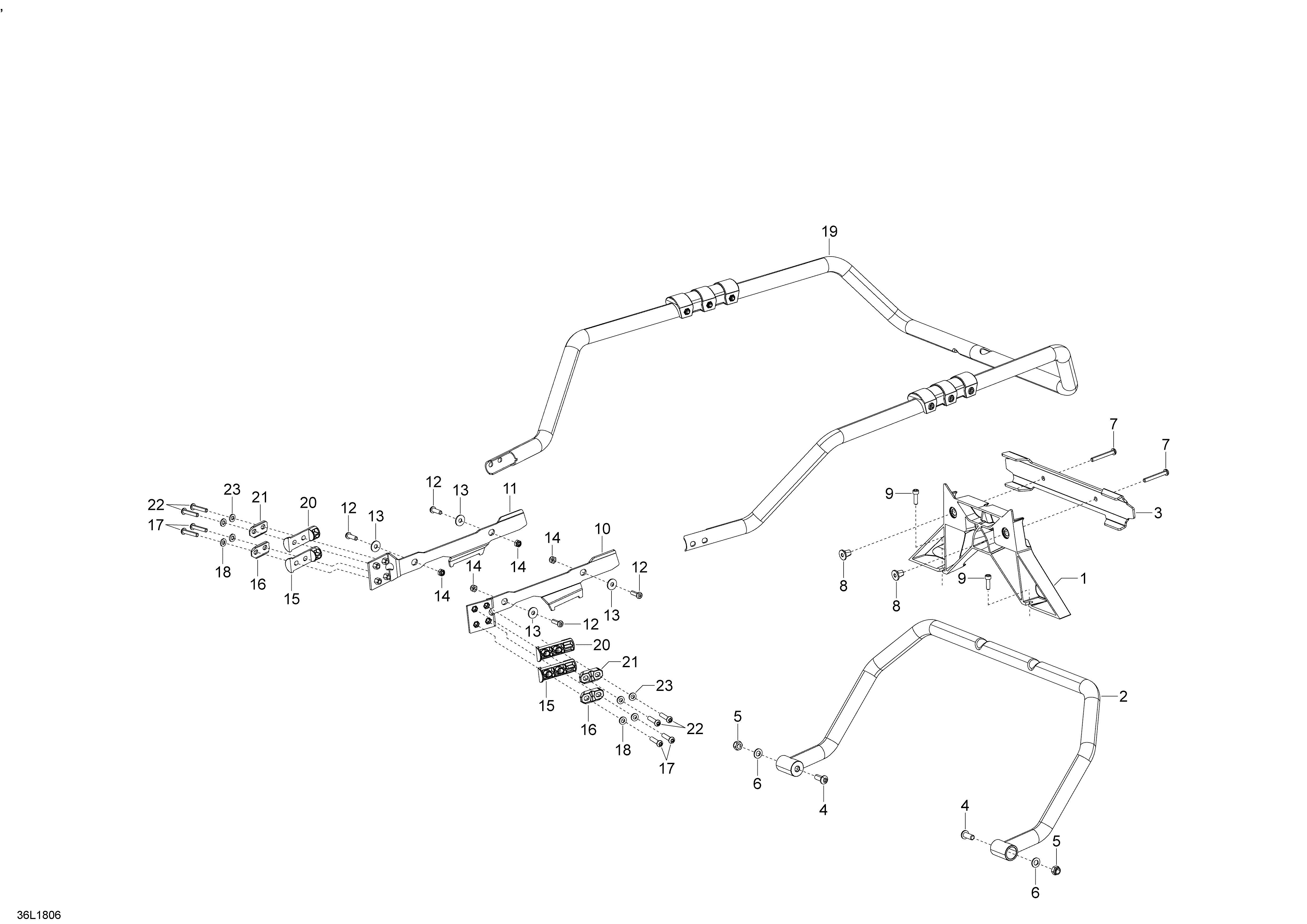

09- Luggage Rack Commander Touratech для BRP Lynx Commander 800R E-TEC - 2018
-
№АртикулНазвание
-
1511000559 Rear Light SupportRear Light Support
-
2511001088 Rear Rack Support BarRear Rack Support Bar
-
3511001089 Clamp For Cargo Rack TubesClamp For Cargo Rack Tubes
-
4205482560 Socket Screw M8 X 25Socket Screw M8 X 25
-
5232581600 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
6234081600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
7205464560 Screw-socket Bn.hd. M6 X 45Screw-socket Bn.hd. M6 X 45
-
8511001090 Machined Nut, M6 For Rear Light SupMachined Nut, M6 For Rear Light Sup
-
9207662056 Screw Hex. Flange M6 x 20Screw Hex. Flange M6 x 20
-
10511001091 Bracket For Cargo Rack / Side TubesBracket For Cargo Rack / Side Tubes
-
11511001092 Bracket For Cargo Rack /side TubesBracket For Cargo Rack /side Tubes
-
12205462060 Socket Screw M6 X 20Socket Screw M6 X 20
-
13234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
14232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
15293710158 Tube Insert Plastic For 25mm DiametTube Insert Plastic For 25mm Diamet
-
16293710159 Screw Support Plate For 25mm DiametScrew Support Plate For 25mm Diamet
-
17205463060 Socket Screw M6 X 30Socket Screw M6 X 30
-
18234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
19511001086 Lower Rear RackLower Rear Rack
-
20293710158 Tube Insert Plastic For 25mm DiametTube Insert Plastic For 25mm Diamet
-
21293710159 Screw Support Plate For 25mm DiametScrew Support Plate For 25mm Diamet
-
22205463060 Socket Screw M6 X 30Socket Screw M6 X 30
-
23234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
