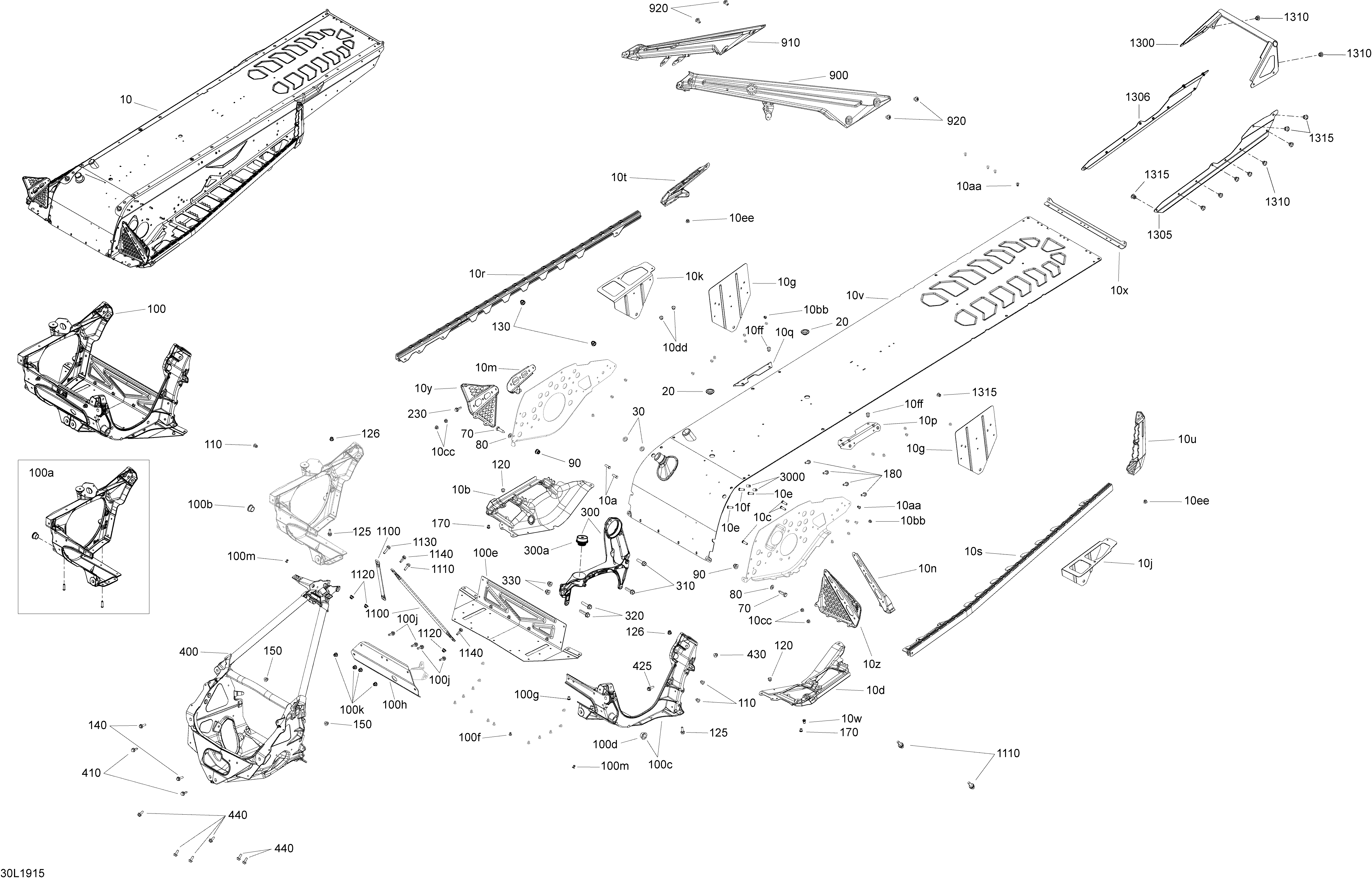

09- Frame BoonDocker - 850 E-TEC - Package DS для BRP Lynx 001 - BoonDocker DS 850 E-TEC - 2019
-
№АртикулНазвание
-
10518330763 Black, Frame. Package 3900. Includes 10 to 10ffBlack, Frame. Package 3900. Includes 10 to 10ff
-
10518330764 Black, Frame. Package 4100. Includes 10 to 10ffBlack, Frame. Package 4100. Includes 10 to 10ff
-
10a250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
10b518329320 RH Footrest Reinforcement. Includes 10b to 10cRH Footrest Reinforcement. Includes 10b to 10c
-
10c250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
10d518329321 LH Footrest Reinforcement. Includes 10d to 10fLH Footrest Reinforcement. Includes 10d to 10f
-
10e250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
10f250300031 Clinch Stud M6 X 30Clinch Stud M6 X 30
-
10g518330081 Rear Arm SupportRear Arm Support
-
10j518329326 LH Rear SupportLH Rear Support
-
10k518329327 RH Rear SupportRH Rear Support
-
10m518329305 RH Reinforcement FootrestRH Reinforcement Footrest
-
10n518329306 LH Reinforcement FootrestLH Reinforcement Footrest
-
10p518330262 LH Member Fixation PlateLH Member Fixation Plate
-
10q518330263 RH Member Fixation PlateRH Member Fixation Plate
-
10r518330080 RH RollerRH Roller
-
10s518330079 LH RollerLH Roller
-
10t518330161 RH Roller LinkRH Roller Link
-
10u518330160 LH Roller LinkLH Roller Link
-
10v518330694 Radiator. Package 3900Radiator. Package 3900
-
10v518330695 Radiator. Package 4100Radiator. Package 4100
-
10w605636003 Clinch Nut M6 HexsertClinch Nut M6 Hexsert
-
10x518329403 Rear PlateRear Plate
-
10y518328460 RH FootrestRH Footrest
-
10z518328463 LH FootrestLH Footrest
-
10aa390909100 Avex RivetAvex Rivet
-
10bb390909200 Avex RivetAvex Rivet
-
10cc293150096 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
10dd293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
10ee293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
10ff293150147 Hemlock RivetHemlock Rivet
-
20293730052 Black, PlugBlack, Plug
-
30506151252 WasherWasher
-
70250000942 Hex Screw M8 X 30Hex Screw M8 X 30
-
80234081410 Flat Washer 8 mmFlat Washer 8 mm
-
90233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
100518330913 Module E. Includes 100 to 100mModule E. Includes 100 to 100m
-
100a518330684 RH Member Ass'y. Includes 100a to 100bRH Member Ass'y. Includes 100a to 100b
-
100b505073317 Leg CushionLeg Cushion
-
100c518330687 LH Member Ass'y. Includes 100c to 100dLH Member Ass'y. Includes 100c to 100d
-
100d505073317 Leg CushionLeg Cushion
-
100e518329844 Bottom PlateBottom Plate
-
100f390909100 Avex RivetAvex Rivet
-
100g293450268 Insert M5 X 0.8Insert M5 X 0.8
-
100h518330100 Front MemberFront Member
-
100j207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
100k233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
100m390909100 Avex RivetAvex Rivet
-
110293150147 Hemlock RivetHemlock Rivet
-
120293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
125207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
126233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
130233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
140207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
150233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
170293450268 Insert M5 X 0.8Insert M5 X 0.8
-
180207661646 Hex. Flange Screw M6 X 16Hex. Flange Screw M6 X 16
-
230207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
300518328693 Brace Ass'y. Includes 300 to 300aBrace Ass'y. Includes 300 to 300a
-
300a512060295 Rubber MountRubber Mount
-
310250001060 Screw-Pan HD.Torx M8X30Screw-Pan HD.Torx M8X30
-
320207683544 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
330233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
400518330573 S ModuleS Module
-
410250000822 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
425207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
430233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
440207661646 Hex. Flange Screw M6 X 16Hex. Flange Screw M6 X 16
-
900518329608 Black, LH Member. Color Theme BLACKBlack, LH Member. Color Theme BLACK
-
900518330253 Orange, LH Member. Color Theme STDOrange, LH Member. Color Theme STD
-
910518329609 Black, RH Member. Color Theme BLACKBlack, RH Member. Color Theme BLACK
-
910518330254 Orange, RH Member. Color Theme STDOrange, RH Member. Color Theme STD
-
920250000887 Pan Head Torx Screw M8 X 12Pan Head Torx Screw M8 X 12
-
1100518329974 Upper Colomn SupportUpper Colomn Support
-
1110207562034 Hex. Flanged Screw M6 X 20, Scotch GripHex. Flanged Screw M6 X 20, Scotch Grip
-
1120233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
1130207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
1140207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
1300518330202 Black, Rear Bumper. Color Theme BLACKBlack, Rear Bumper. Color Theme BLACK
-
1300518330203 Orange, Rear Bumper. Color Theme STDOrange, Rear Bumper. Color Theme STD
-
1305518330205 Orange, LH Rear Bumper. Package 3900 - Color Theme STDOrange, LH Rear Bumper. Package 3900 - Color Theme STD
-
1305518330207 Black, LH Rear Bumper. Package 3900 - Color Theme BLACKBlack, LH Rear Bumper. Package 3900 - Color Theme BLACK
-
1305518330209 Black, LH Rear Bumper. Package 4100 - Color Theme BLACKBlack, LH Rear Bumper. Package 4100 - Color Theme BLACK
-
1305518330211 Orange, LH Rear Bumper. Package 4100 - Color Theme STDOrange, LH Rear Bumper. Package 4100 - Color Theme STD
-
1306518330206 Orange, RH Rear Bumper. Package 3900 - Color Theme STDOrange, RH Rear Bumper. Package 3900 - Color Theme STD
-
1306518330208 Black, RH Rear Bumper. Package 3900 - Color Theme BLACKBlack, RH Rear Bumper. Package 3900 - Color Theme BLACK
-
1306518330210 Black, RH Rear Bumper. Package 4100 - Color Theme BLACKBlack, RH Rear Bumper. Package 4100 - Color Theme BLACK
-
1306518330212 Orange, RH Rear Bumper. Package 4100 - Color Theme STDOrange, RH Rear Bumper. Package 4100 - Color Theme STD
-
1310293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
1315293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
3000515176141 CapCap
