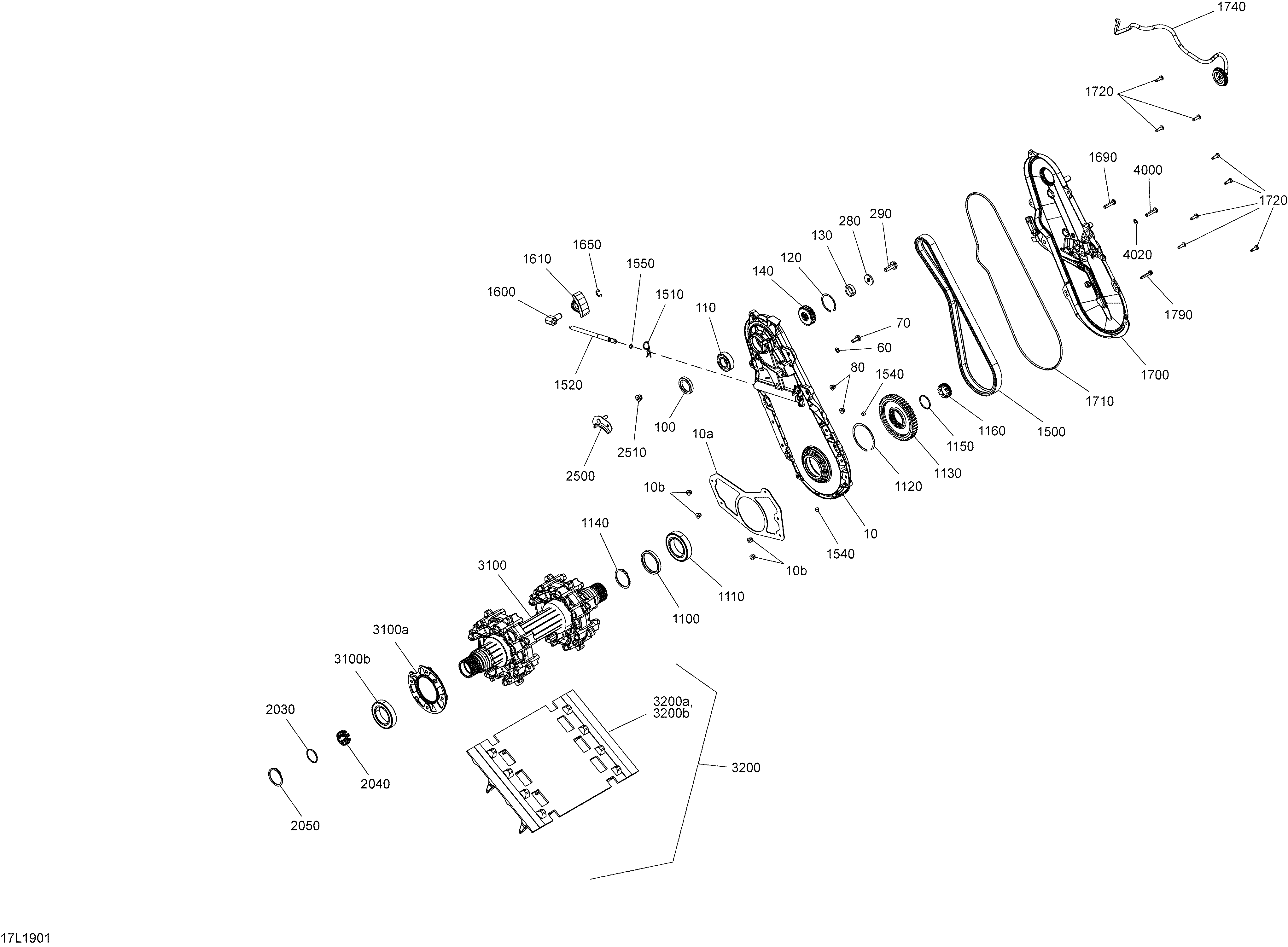

05- Drive Xterrain - 600 E-TEC для BRP Lynx 001 - XTerrain 600R E-TEC - 2019
-
№АртикулНазвание
-
10504153617 Chaincase Ass'y. Includes 10 to 10bChaincase Ass'y. Includes 10 to 10b
-
10a861805514 Kit Plate Ass'yKit Plate Ass'y
-
10b233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
60504082900 WasherWasher
-
70250000740 Torx Screw M8 X 20, Scotch GripTorx Screw M8 X 20, Scotch Grip
-
80233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
100293200168 Oil SealOil Seal
-
110293350115 Ball BearingBall Bearing
-
120504152576 CirclipCirclip
-
130504152628 ShimShim
-
140504096200 Sprocket, 21 Teeth. Except TR16X154X2.5PLWSprocket, 21 Teeth. Except TR16X154X2.5PLW
-
140504153783 Sprocket, 19 Teeth. TR16X154X2.5PLWSprocket, 19 Teeth. TR16X154X2.5PLW
-
280504152784 Spring Washer M10Spring Washer M10
-
290207503046 Hex. Flanged Screw M10 X 30, Scotch GripHex. Flanged Screw M10 X 30, Scotch Grip
-
1100293200159 Oil SealOil Seal
-
1110293350059 Ball BearingBall Bearing
-
1120504152582 CirclipCirclip
-
1130504152581 Sprocket, 49 Teeth. Package Standard 3700Sprocket, 49 Teeth. Package Standard 3700
-
1130504152971 Sprocket, 51 Teeth. Package Standard 3900Sprocket, 51 Teeth. Package Standard 3900
-
1140504152572 CirclipCirclip
-
1150293300201 O-RingO-Ring
-
1160504153696 Magnetic Cap Ass'yMagnetic Cap Ass'y
-
1500504153393 Drive Chain, 114 Links. Package Standard 3700Drive Chain, 114 Links. Package Standard 3700
-
1500504153397 Drive Chain, 116 Links. Package Standard 3900Drive Chain, 116 Links. Package Standard 3900
-
1510414575600 Hair PinHair Pin
-
1520504153760 Adjustment ScrewAdjustment Screw
-
1540250500012 Allen Drive Plug 1/8-27 PTFAllen Drive Plug 1/8-27 PTF
-
1545504153704 Magnetic PlugMagnetic Plug
-
1550293300202 O-RingO-Ring
-
1600504153559 TensionerTensioner
-
1610504153312 Slider ChainSlider Chain
-
1650293370105 CirclipCirclip
-
1690250000764 Hex. Button Head Screw M8 X 1.25 X 35Hex. Button Head Screw M8 X 1.25 X 35
-
1700504153897 Chain Case Cover Ass'yChain Case Cover Ass'y
-
1710293300200 O-RingO-Ring
-
1720250000870 Torx Screw, M6 X 20Torx Screw, M6 X 20
-
1740504153535 Cap Ass'yCap Ass'y
-
1790250000960 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
2030293300201 O-RingO-Ring
-
2040504153697 Magnetic CapMagnetic Cap
-
2050504152572 CirclipCirclip
-
2500504153695 Bearing Housing Ass'yBearing Housing Ass'y
-
2510233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
3100504153836 Axle Drive Ass'y. TR16X154X2.5PLW. Includes 3100 to 3100bAxle Drive Ass'y. TR16X154X2.5PLW. Includes 3100 to 3100b
-
3100504153830 Axle Drive Ass'y. Sku - SDKB - SDKD - SDKE - SDKJ - SDKL. Includes 3100 to 3100bAxle Drive Ass'y. Sku - SDKB - SDKD - SDKE - SDKJ - SDKL. Includes 3100 to 3100b
-
3100504153834 Axle Drive Ass'y. Sku - SDKC. Includes 3100 to 3100bAxle Drive Ass'y. Sku - SDKC. Includes 3100 to 3100b
-
3100a504153426 Retaining RingRetaining Ring
-
3100b293350059 Ball BearingBall Bearing
-
3200504153670 Track Ass'y 16'' X 146'' X 2''. TR16X146X2.0PSH. Includes 3200 to 3200bTrack Ass'y 16'' X 146'' X 2''. TR16X146X2.0PSH. Includes 3200 to 3200b
-
3200a415129528 Track Guide. TR16X146X2.0PSHTrack Guide. TR16X146X2.0PSH
-
3200b415129529 Cleat. TR16X146X2.0PSHCleat. TR16X146X2.0PSH
-
3200504153198 Track Ass'y 16'' X 146'' X 2.50''. TR16X146X2.5PSH. Includes 3200 to 3200bTrack Ass'y 16'' X 146'' X 2.50''. TR16X146X2.5PSH. Includes 3200 to 3200b
-
3200a415129528 Track Guide. TR16X146X2.5PSHTrack Guide. TR16X146X2.5PSH
-
3200b415129529 Cleat. TR16X146X2.5PSHCleat. TR16X146X2.5PSH
-
3200504153173 Track 16'' X 154 '' 2.0''. TR16X154X2.0PSH. Includes 3200 to 3200bTrack 16'' X 154 '' 2.0''. TR16X154X2.0PSH. Includes 3200 to 3200b
-
3200a415129528 Track Guide. TR16X154X2.0PSHTrack Guide. TR16X154X2.0PSH
-
3200b415129529 Cleat. TR16X154X2.0PSHCleat. TR16X154X2.0PSH
-
3200504153791 Track Ass'y 16'' X 154'' X 2.50''. TR16X154X2.5PLW. Includes 3200 to 3200bTrack Ass'y 16'' X 154'' X 2.50''. TR16X154X2.5PLW. Includes 3200 to 3200b
-
3200a415130083 Track Guide. TR16X154X2.5PLWTrack Guide. TR16X154X2.5PLW
-
3200b415130084 Cleat. TR16X154X2.5PLWCleat. TR16X154X2.5PLW
-
4000250000764 Hex. Button Head Screw M8 X 1.25 X 35Hex. Button Head Screw M8 X 1.25 X 35
-
4020504082900 WasherWasher
