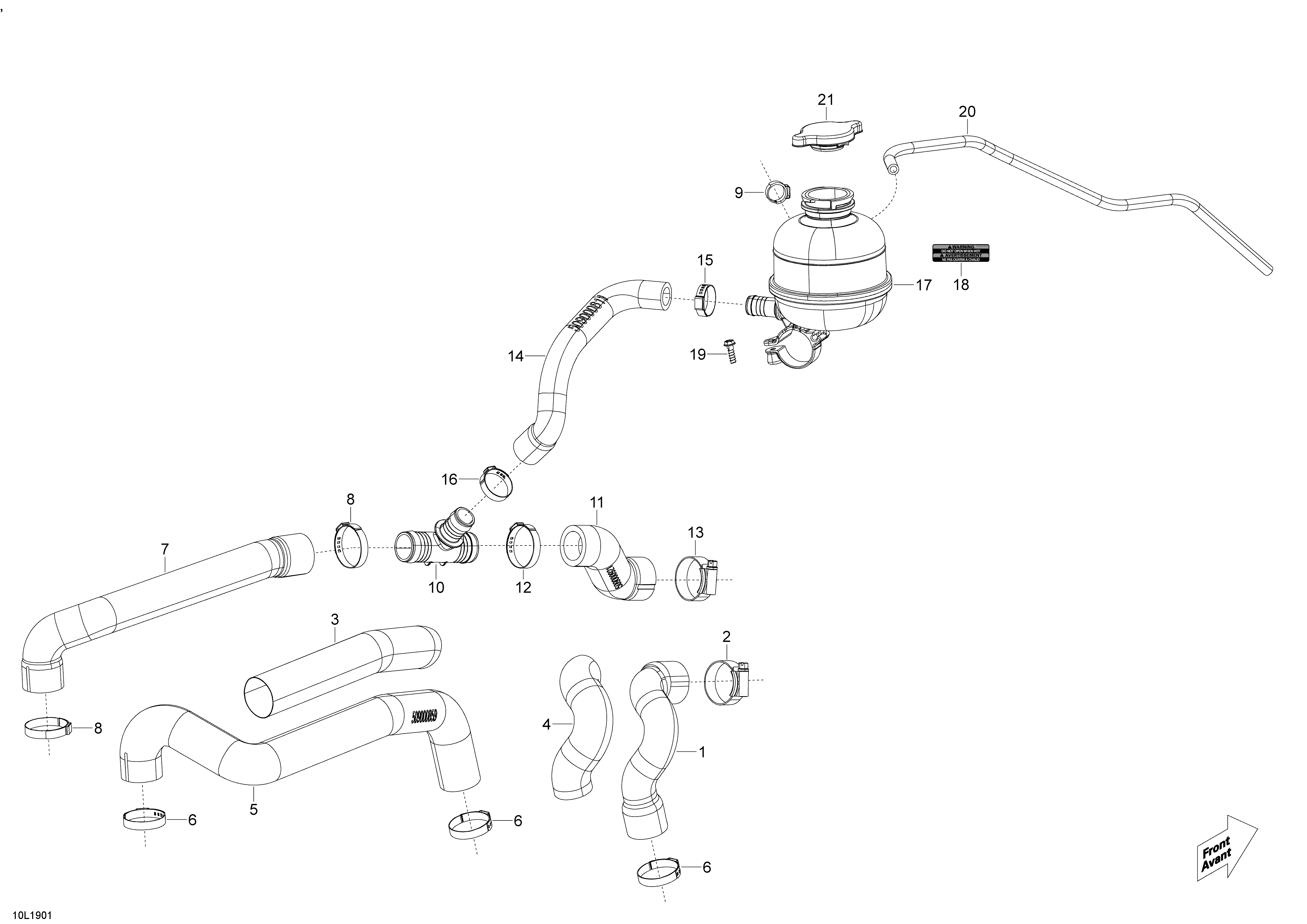

01- Cooling XTRIM - 600 ACE для BRP Lynx 002 - XTRIM 600 ACE - 2019
-
№АртикулНазвание
-
1509000913 Engine Outlet HoseEngine Outlet Hose
-
2509000443 Aba Gear Clamp, 26-38 MMAba Gear Clamp, 26-38 MM
-
3509000513 Protector Tube 32 mmProtector Tube 32 mm
-
4509000513 Protector Tube 32 mmProtector Tube 32 mm
-
5509000859 Radiator HoseRadiator Hose
-
6509000529 Oetiker Gear Clamp, 36.5-706ROetiker Gear Clamp, 36.5-706R
-
7509001062 Radiator Return HoseRadiator Return Hose
-
8509000529 Oetiker Gear Clamp, 36.5-706ROetiker Gear Clamp, 36.5-706R
-
9293650025 Oetiker Gear ClampOetiker Gear Clamp
-
10509000372 T-FittingT-Fitting
-
11509000921 Radiator HoseRadiator Hose
-
12509000529 Oetiker Gear Clamp, 36.5-706ROetiker Gear Clamp, 36.5-706R
-
13509000443 Aba Gear Clamp, 26-38 MMAba Gear Clamp, 26-38 MM
-
14509001063 Filling HoseFilling Hose
-
15509000442 Oeticker Gear Clamp, 25.6-706ROeticker Gear Clamp, 25.6-706R
-
16293650099 Crimp ClampCrimp Clamp
-
17509000881 Cooling TankCooling Tank
-
18516005904 Warning DecalWarning Decal
-
19241151640 Hex. Flanged Screw K50 X 2.24 X 16Hex. Flanged Screw K50 X 2.24 X 16
-
20509000775 HoseHose
-
21509000180 Pressure CapPressure Cap
