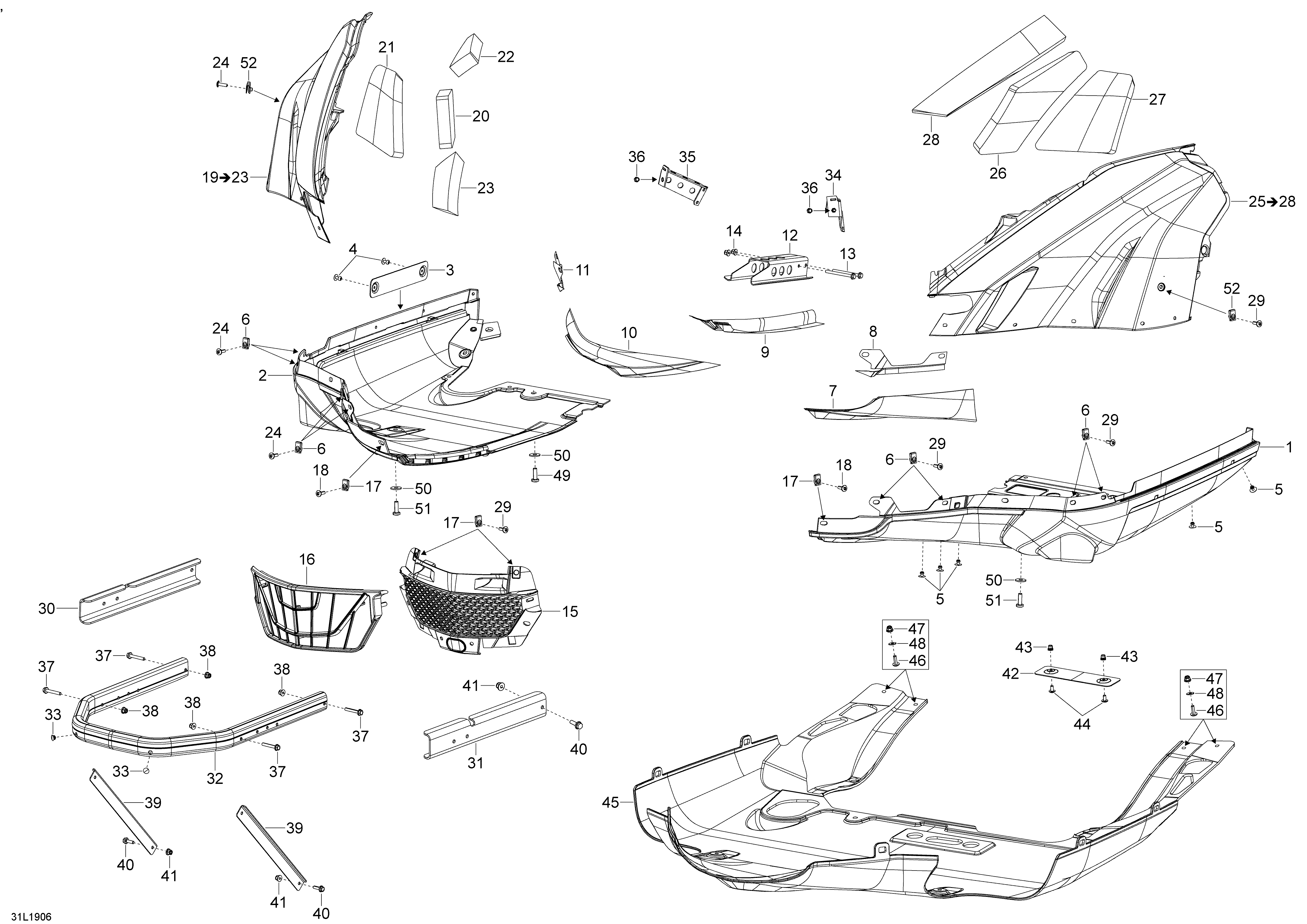

09- Bottom Pan 69 YETI - 600 E-TEC для BRP Lynx 001 - 69 YETI 600 E-TEC - 2019
-
№АртикулНазвание
-
1502007836 LH Lower Bottom PanLH Lower Bottom Pan
-
2502007837 RH Lower Bottom PanRH Lower Bottom Pan
-
3502007255 Heat Isolation PlateHeat Isolation Plate
-
4293150211 RivetRivet
-
5293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
517302785 Edge Clip. Not ShownEdge Clip. Not Shown
-
6250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
7508000918 Heat ShieldHeat Shield
-
8508000919 Heat ShieldHeat Shield
-
9508000920 Heat ShieldHeat Shield
-
10508000921 Heat ShieldHeat Shield
-
11508000922 Heat ShieldHeat Shield
-
12502007688 SupportSupport
-
13207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
14233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
15502007140 Front GrillFront Grill
-
17250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
18250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
19502008015 Deep Black, Bottom Pan RHDeep Black, Bottom Pan RH
-
20502007133 InsulatorInsulator
-
21502007132 InsulatorInsulator
-
23502007009 InsulatorInsulator
-
24250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
25502008017 Deep Black, Bottom Pan LHDeep Black, Bottom Pan LH
-
26502007088 InsulatorInsulator
-
27502007131 InsulatorInsulator
-
28502007185 InsulatorInsulator
-
29250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
30502007379 RH Bumper SupportRH Bumper Support
-
31502007380 LH Bumper SupportLH Bumper Support
-
32502007450 Bumper, Short BlackBumper, Short Black
-
33293730047 Black Dart 8 mmBlack Dart 8 mm
-
34502007535 LH Bottom Pan FastenerLH Bottom Pan Fastener
-
35502007536 RH Bottom Pan FastenerRH Bottom Pan Fastener
-
36605636003 Clinch Nut M6 HexsertClinch Nut M6 Hexsert
-
37207664044 Hex. Flanged Screw M6 X 40Hex. Flanged Screw M6 X 40
-
38233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
39502007382 Bumper Support SWTBumper Support SWT
-
40207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
41233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
42518328879 Oil PlateOil Plate
-
43605636003 Clinch Nut M6 HexsertClinch Nut M6 Hexsert
-
44250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
45860201343 SKID PLATE XU LTS 69_16SKID PLATE XU LTS 69_16
-
46250000807 Torx Truss Screw M6 X 25Torx Truss Screw M6 X 25
-
47233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
4820117 WasherWasher
-
49250000752 Torx Screw M8 X 1.25 X 25, Scotch GripTorx Screw M8 X 1.25 X 25, Scotch Grip
-
50234082410 Flat Washer 8 mmFlat Washer 8 mm
-
51250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
52250000957 Extruded Panel Nut M6Extruded Panel Nut M6
