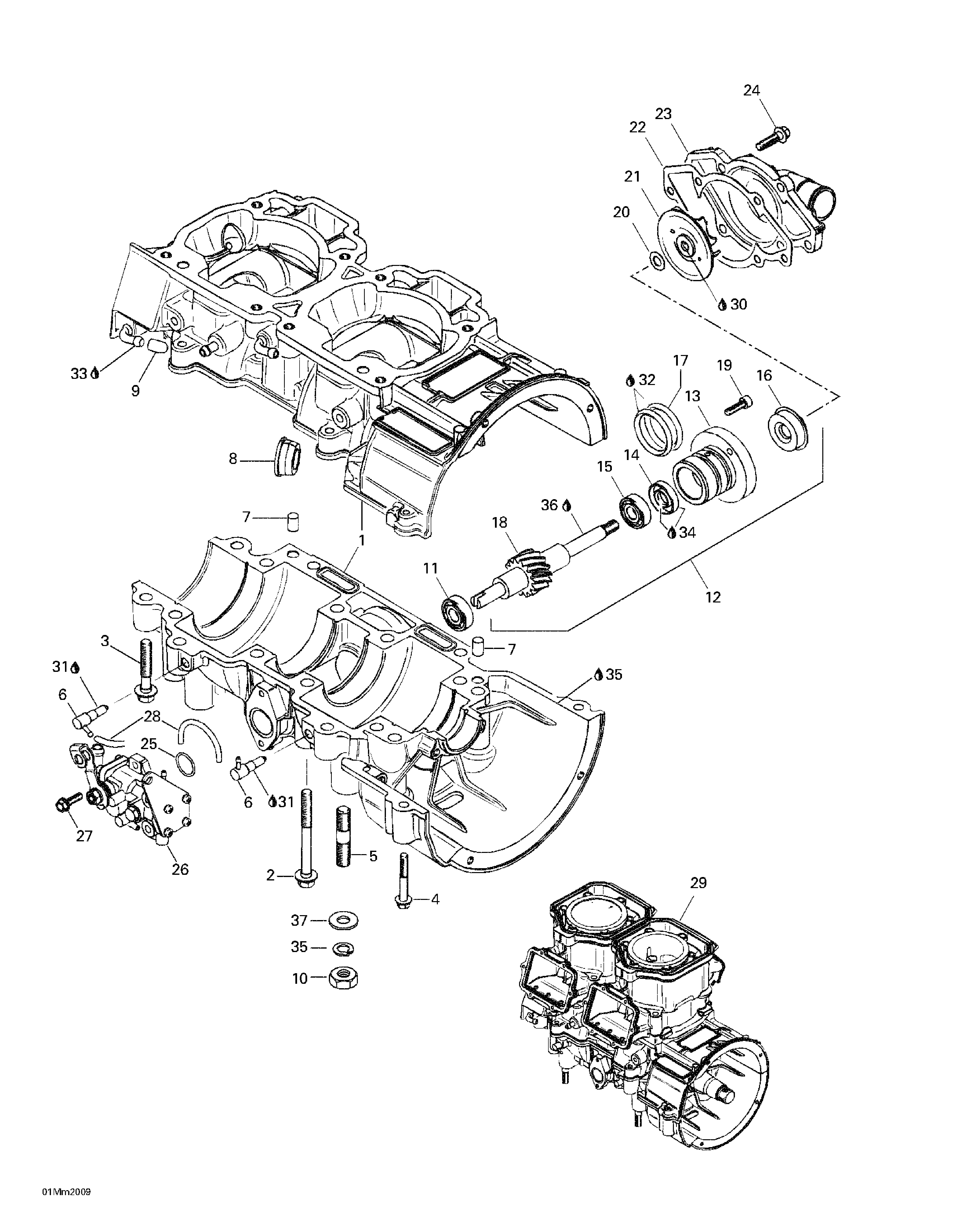

01- Crankcase, Water Pump And Oil Pump для BRP Ski-Doo MX Z 600 SB - 2000
-
№АртикулНазвание
-
1420888208 Crankcase Ass'y. Includes 1 - 9.Crankcase Ass'y. Includes 1 - 9.
-
2420640831 Hex. Collar Screw M8 x 75Hex. Collar Screw M8 x 75
-
3420640436 Hex. Collar Screw M8 x 45Hex. Collar Screw M8 x 45
-
4420640311 Hex. Collar Screw M6 x 45Hex. Collar Screw M6 x 45
-
5420941644 Stud M10 x 23Stud M10 x 23
-
6420956510 Check ValveCheck Valve
-
7420632010 Dowel PinDowel Pin
-
8420860965 Cable GrommetCable Grommet
-
9420960770 CapCap
-
10232006414 Hex. Nut M10Hex. Nut M10
-
11420232100 Ball BearingBall Bearing
-
12420837421 Water Pump Ass'y. Includes 12 - 18.Water Pump Ass'y. Includes 12 - 18.
-
14420230195 Oil SealOil Seal
-
15420232100 Ball BearingBall Bearing
-
16420650370 Rotary SealRotary Seal
-
17420950890 O-RingO-Ring
-
19420840511 Socket Head Screw M5 x 16Socket Head Screw M5 x 16
-
20420227945 WasherWasher
-
21420222505 Water ImpellerWater Impeller
-
22420931810 GasketGasket
-
23420922630 Water Pump HousingWater Pump Housing
-
24420240031 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
25420230400 O'RingO'Ring
-
26420888260 Oil Pump Ass'yOil Pump Ass'y
-
27420941925 Screw M5 x 16Screw M5 x 16
-
28414413800 Oil LineOil Line
-
29420059302 Short Block Ass'yShort Block Ass'y
-
30293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
31413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
32413707000 Molykote 111Molykote 111
-
34420899271 Grease Petamo Ghy 133N, 400gGrease Petamo Ghy 133N, 400g
-
35420297905 Sealing Compound 2290, 310 mlSealing Compound 2290, 310 ml
-
36413802900 Injection Oil (12 x 1 Liter)Injection Oil (12 x 1 Liter)
-
37224001410 Washer 10 mmWasher 10 mm
-
38234100602 Lock Washer 10 mmLock Washer 10 mm
