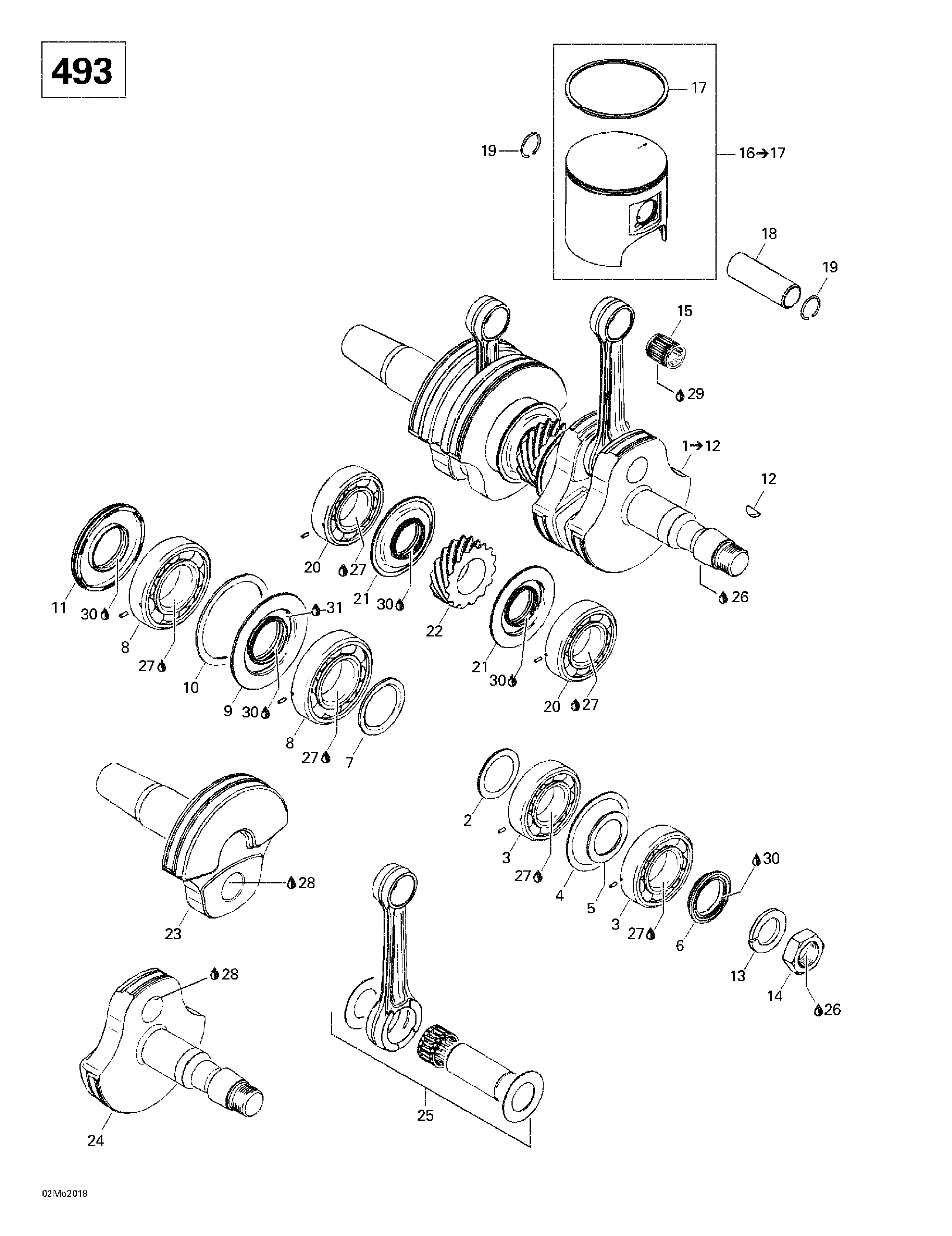

01- Crankshaft And Pistons для BRP Ski-Doo MX Z 700 SB - 2000
-
№АртикулНазвание
-
1420888460 Crankshaft Ass'y. Includes 1 - 12. MX Z 500. MX Z 500 SB (Black).Crankshaft Ass'y. Includes 1 - 12. MX Z 500. MX Z 500 SB (Black).
-
2420827445 Distance Ring. MX Z 500. MX Z 500 SB (Black).Distance Ring. MX Z 500. MX Z 500 SB (Black).
-
3420832590 Ball Bearing 6206. MX Z 500. MX Z 500 SB (Black).Ball Bearing 6206. MX Z 500. MX Z 500 SB (Black).
-
4420827050 Retaining Disk. MX Z 500. MX Z 500 SB (Black).Retaining Disk. MX Z 500. MX Z 500 SB (Black).
-
5420427684 Adjustment Washer. MX Z 500. MX Z 500 SB (Black).Adjustment Washer. MX Z 500. MX Z 500 SB (Black).
-
6420931790 Oil Seal. MX Z 500. MX Z 500 SB (Black).Oil Seal. MX Z 500. MX Z 500 SB (Black).
-
7420827760 Distance Ring. MX Z 500. MX Z 500 SB (Black).Distance Ring. MX Z 500. MX Z 500 SB (Black).
-
8420832575 Ball Bearing 6207. MX Z 500. MX Z 500 SB (Black).Ball Bearing 6207. MX Z 500. MX Z 500 SB (Black).
-
9420931455 Oil Seal. MX Z 500. MX Z 500 SB (Black).Oil Seal. MX Z 500. MX Z 500 SB (Black).
-
10420927710 Retaining Disk. MX Z 500. MX Z 500 SB (Black).Retaining Disk. MX Z 500. MX Z 500 SB (Black).
-
11290831952 Oil Seal. MX Z 500. MX Z 500 SB (Black).Oil Seal. MX Z 500. MX Z 500 SB (Black).
-
12420246015 Woodfuff Key. MX Z 500. MX Z 500 SB (Black).Woodfuff Key. MX Z 500. MX Z 500 SB (Black).
-
13420945759 Lock Washer 22 mm. MX Z 500. MX Z 500 SB (Black).Lock Washer 22 mm. MX Z 500. MX Z 500 SB (Black).
-
14420842230 Hex. Nut M22. MX Z 500. MX Z 500 SB (Black).Hex. Nut M22. MX Z 500. MX Z 500 SB (Black).
-
15420832438 Needle Bearing. MX Z 500. MX Z 500 SB (Black).Needle Bearing. MX Z 500. MX Z 500 SB (Black).
-
16420888442 Piston Ass'y (1 Ring 69.40 mm). Includes 16 - 17. MX Z 500. MX Z 500 SB (Black).Piston Ass'y (1 Ring 69.40 mm). Includes 16 - 17. MX Z 500. MX Z 500 SB (Black).
-
420888443 Oversize Piston Ass'y (1 Ring 69.65 mm). MX Z 500. MX Z 500 SB (Black).Oversize Piston Ass'y (1 Ring 69.65 mm). MX Z 500. MX Z 500 SB (Black).
-
17420815043 Semi-Trapez Ring 69.5 mm. MX Z 500. MX Z 500 SB (Black).Semi-Trapez Ring 69.5 mm. MX Z 500. MX Z 500 SB (Black).
-
420815044 Oversize Semi-Trapez Ring 69.75 mm. MX Z 500. MX Z 500 SB (Black).Oversize Semi-Trapez Ring 69.75 mm. MX Z 500. MX Z 500 SB (Black).
-
18420916186 Gudgeon Pin. MX Z 500. MX Z 500 SB (Black).Gudgeon Pin. MX Z 500. MX Z 500 SB (Black).
-
19420945735 Piston Circlip. MX Z 500. MX Z 500 SB (Black).Piston Circlip. MX Z 500. MX Z 500 SB (Black).
-
20420832590 Ball Bearing 6206. MX Z 500. MX Z 500 SB (Black).Ball Bearing 6206. MX Z 500. MX Z 500 SB (Black).
-
21420931940 Oil Seal. MX Z 500. MX Z 500 SB (Black).Oil Seal. MX Z 500. MX Z 500 SB (Black).
-
22420834350 Central Gear 15 Teeth. MX Z 500. MX Z 500 SB (Black).Central Gear 15 Teeth. MX Z 500. MX Z 500 SB (Black).
-
23420818664 Crankshaft (PTO side). MX Z 500. MX Z 500 SB (Black).Crankshaft (PTO side). MX Z 500. MX Z 500 SB (Black).
-
24420818693 Crankshaft (MAG side). MX Z 500. MX Z 500 SB (Black).Crankshaft (MAG side). MX Z 500. MX Z 500 SB (Black).
-
26293800060 Loctite 243, 10 ml. MX Z 500. MX Z 500 SB (Black).Loctite 243, 10 ml. MX Z 500. MX Z 500 SB (Black).
-
27293800023 Loctite 767, Antiseize Lubricant, 454 g. MX Z 500. MX Z 500 SB (Black).Loctite 767, Antiseize Lubricant, 454 g. MX Z 500. MX Z 500 SB (Black).
-
28413711400 Loctite 648, 10 ml. MX Z 500. MX Z 500 SB (Black).Loctite 648, 10 ml. MX Z 500. MX Z 500 SB (Black).
-
29413802900 Injection Oil (12 x 1 Liter). MX Z 500. MX Z 500 SB (Black).Injection Oil (12 x 1 Liter). MX Z 500. MX Z 500 SB (Black).
-
30420899271 Petamo Grease, GHY133N, 400 g. MX Z 500. MX Z 500 SB (Black).Petamo Grease, GHY133N, 400 g. MX Z 500. MX Z 500 SB (Black).
-
31293550021 Isoflex Grease, 45 g. MX Z 500. MX Z 500 SB (Black).Isoflex Grease, 45 g. MX Z 500. MX Z 500 SB (Black).
