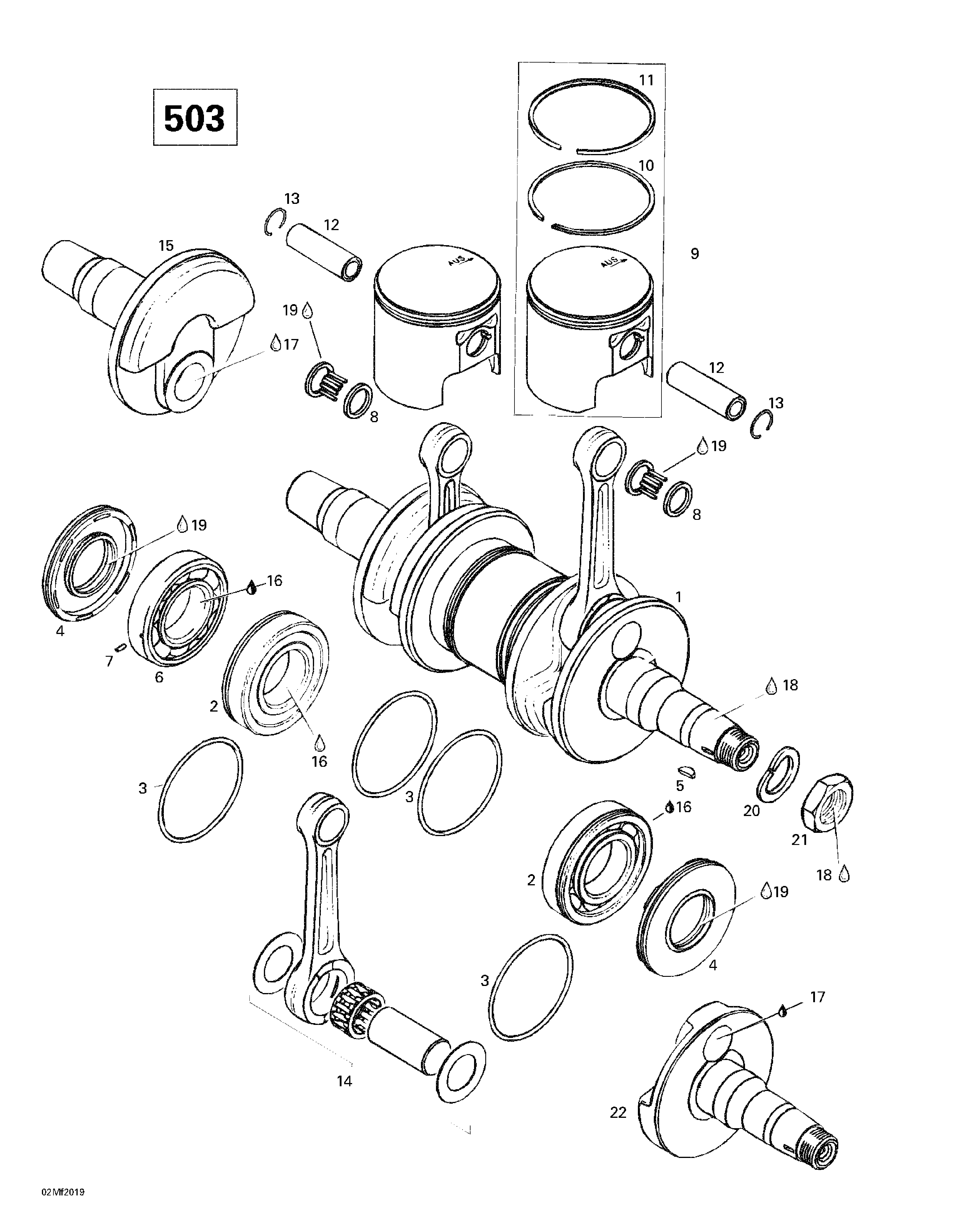

01- Crankshaft And Pistons (503) для BRP Ski-Doo Skandic Wide Track - 2000
-
№АртикулНазвание
-
1420888390 Crankshaft Ass'y. Includes 1 - 7. Skandic WT. Skandic SWT.Crankshaft Ass'y. Includes 1 - 7. Skandic WT. Skandic SWT.
-
2420832570 Ball Bearing 6207. Skandic WT. Skandic SWT.Ball Bearing 6207. Skandic WT. Skandic SWT.
-
3420250165 O-Ring 64 mm. Skandic WT. Skandic SWT.O-Ring 64 mm. Skandic WT. Skandic SWT.
-
4290831952 Oil Seal. Skandic WT. Skandic SWT.Oil Seal. Skandic WT. Skandic SWT.
-
5420246055 Woodruff Key. Skandic WT. Skandic SWT.Woodruff Key. Skandic WT. Skandic SWT.
-
6420832574 Ball Bearing 6207 Ass'y. Includes 6 - 7. Skandic WT. Skandic SWT.Ball Bearing 6207 Ass'y. Includes 6 - 7. Skandic WT. Skandic SWT.
-
7420929972 Dowel Pin. Skandic WT. Skandic SWT.Dowel Pin. Skandic WT. Skandic SWT.
-
8420832320 Needle Bearing. Skandic WT. Skandic SWT.Needle Bearing. Skandic WT. Skandic SWT.
-
9420888175 Piston Ass'y 71.92 mm. Includes 9 - 11. Skandic WT. Skandic SWT.Piston Ass'y 71.92 mm. Includes 9 - 11. Skandic WT. Skandic SWT.
-
420888176 Oversize Piston Ass'y. 72.17 mm. Skandic WT. Skandic SWT.Oversize Piston Ass'y. 72.17 mm. Skandic WT. Skandic SWT.
-
420888177 Oversize Piston Ass'y. 72.42mm. Skandic WT. Skandic SWT.Oversize Piston Ass'y. 72.42mm. Skandic WT. Skandic SWT.
-
10420915850 Rectangular Ring 72.00 mm. Skandic WT. Skandic SWT.Rectangular Ring 72.00 mm. Skandic WT. Skandic SWT.
-
420915851 Rectangular Ring 72.25 mm. Skandic WT. Skandic SWT.Rectangular Ring 72.25 mm. Skandic WT. Skandic SWT.
-
420915852 Rectangular Ring 72.50 mm. Skandic WT. Skandic SWT.Rectangular Ring 72.50 mm. Skandic WT. Skandic SWT.
-
11420815200 Semi-Trapez Ring 72.00 mm. Skandic WT. Skandic SWT.Semi-Trapez Ring 72.00 mm. Skandic WT. Skandic SWT.
-
420815201 Semi-Trapez Ring 72.25 mm. Skandic WT. Skandic SWT.Semi-Trapez Ring 72.25 mm. Skandic WT. Skandic SWT.
-
420815202 Semi-Trapez Ring 72.50 mm. Skandic WT. Skandic SWT.Semi-Trapez Ring 72.50 mm. Skandic WT. Skandic SWT.
-
12420916186 Piston Pin. Skandic WT. Skandic SWT.Piston Pin. Skandic WT. Skandic SWT.
-
13420945735 Circlip. Skandic WT. Skandic SWT.Circlip. Skandic WT. Skandic SWT.
-
14420994564 Crankshaft Repair Kit. Skandic WT. Skandic SWT.Crankshaft Repair Kit. Skandic WT. Skandic SWT.
-
15420818244 Half Crankshaft (P.T.O.). Skandic WT. Skandic SWT.Half Crankshaft (P.T.O.). Skandic WT. Skandic SWT.
-
16413800023 Loctite 767, Antiseize Lubricant, 454 gr. Skandic WT. Skandic SWT.Loctite 767, Antiseize Lubricant, 454 gr. Skandic WT. Skandic SWT.
-
17413711400 Loctite 648, 50ml. Skandic WT. Skandic SWT.Loctite 648, 50ml. Skandic WT. Skandic SWT.
-
18293800060 Loctite 243, 10 ml. Skandic WT. Skandic SWT.Loctite 243, 10 ml. Skandic WT. Skandic SWT.
-
19413802900 Injection Oil, 12 x 1L. Skandic WT. Skandic SWT.Injection Oil, 12 x 1L. Skandic WT. Skandic SWT.
-
20420945759 Lock Washer 22 mm. Skandic WT. Skandic SWT.Lock Washer 22 mm. Skandic WT. Skandic SWT.
-
21420842230 Nut M22. Skandic WT. Skandic SWT.Nut M22. Skandic WT. Skandic SWT.
-
22420819020 Half Crankshaft (M.A.G.). Skandic WT. Skandic SWT.Half Crankshaft (M.A.G.). Skandic WT. Skandic SWT.
