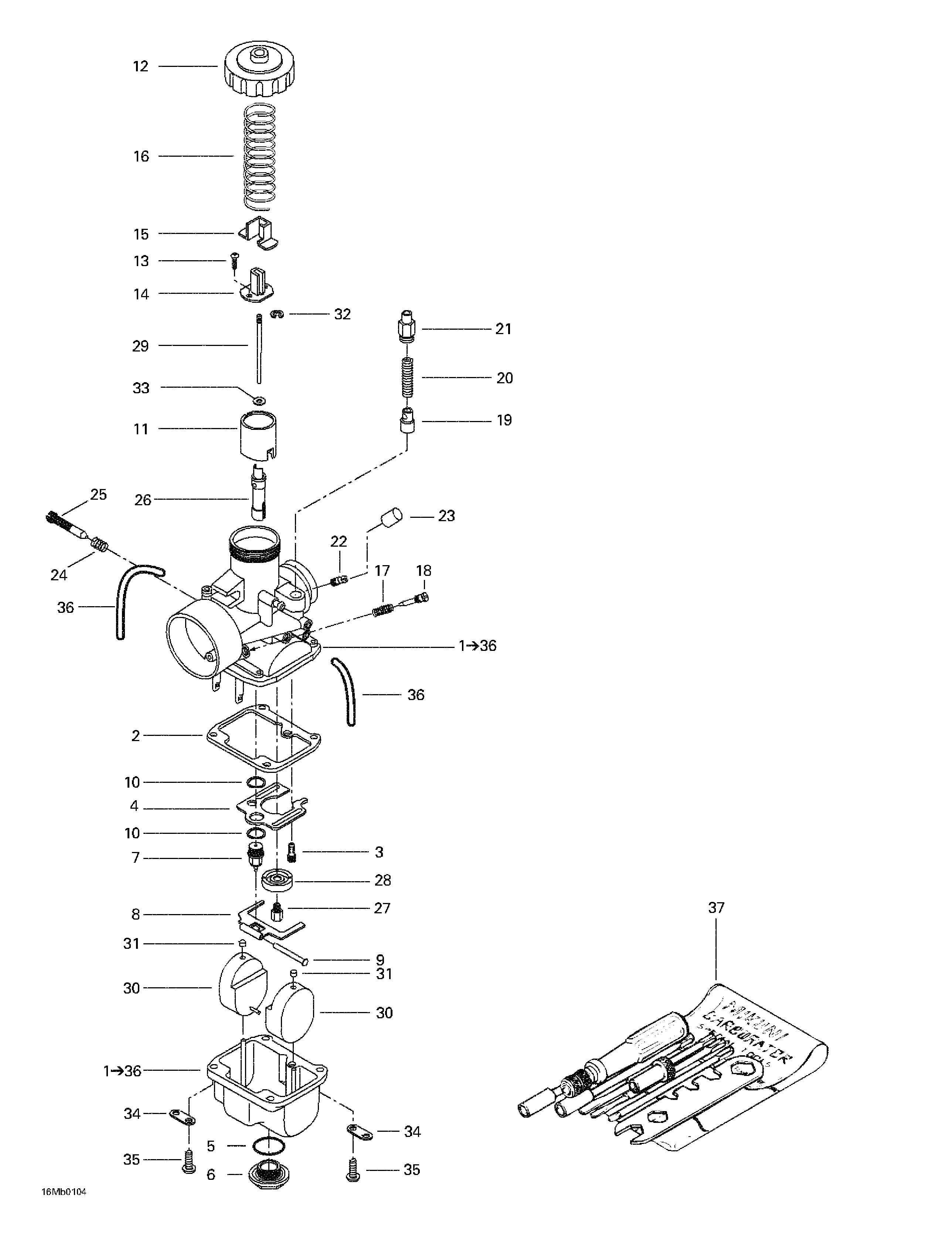

02- Carburetors для BRP Ski-Doo Formula Deluxe 380 F - 2001
-
№АртикулНазвание
-
1403138600 Carburetor VM 30-200. Includes 1 - 36.Carburetor VM 30-200. Includes 1 - 36.
-
2404104200 GasketGasket
-
3404109100 Pilot Jet PJ 40Pilot Jet PJ 40
-
4404109600 BaffleBaffle
-
5404107300 O-RingO-Ring
-
6404107400 Drain Plug ScrewDrain Plug Screw
-
7404103200 Needle Valve 1.5Needle Valve 1.5
-
8404107600 Float LeverFloat Lever
-
9404103300 Lever PinLever Pin
-
10404101600 Seat WasherSeat Washer
-
11404128400 Throttle Valve CA 2.5Throttle Valve CA 2.5
-
12404103700 CoverCover
-
13404121300 Screw with WasherScrew with Washer
-
14404161948 PackingPacking
-
15404122100 CoverCover
-
16404154800 SpringSpring
-
17404101800 Spring (Idle Adjusting Screw)Spring (Idle Adjusting Screw)
-
18404102300 Air ScrewAir Screw
-
19404161000 Plunger Ass'yPlunger Ass'y
-
20404127400 SpringSpring
-
21404161100 Holder GuideHolder Guide
-
22404153400 NippleNipple
-
23404156600 CapCap
-
24404101700 Spring (Idle Speed Screw)Spring (Idle Speed Screw)
-
25404109700 Idle Speed ScrewIdle Speed Screw
-
26404107000 Needle Jet NJ 159-P-0Needle Jet NJ 159-P-0
-
27404126600 Main Jet MJ 140Main Jet MJ 140
-
28404110900 Baffle RingBaffle Ring
-
29404152600 Needle JN 6DP9-3Needle JN 6DP9-3
-
30404107100 FloatFloat
-
31404105800 CapCap
-
32404152400 E-RingE-Ring
-
33404117000 PackingPacking
-
34404103000 PlatePlate
-
35404102000 Screw and Lock WasherScrew and Lock Washer
-
36404161880 Air Vent TubeAir Vent Tube
-
37404112000 Tool KitTool Kit
