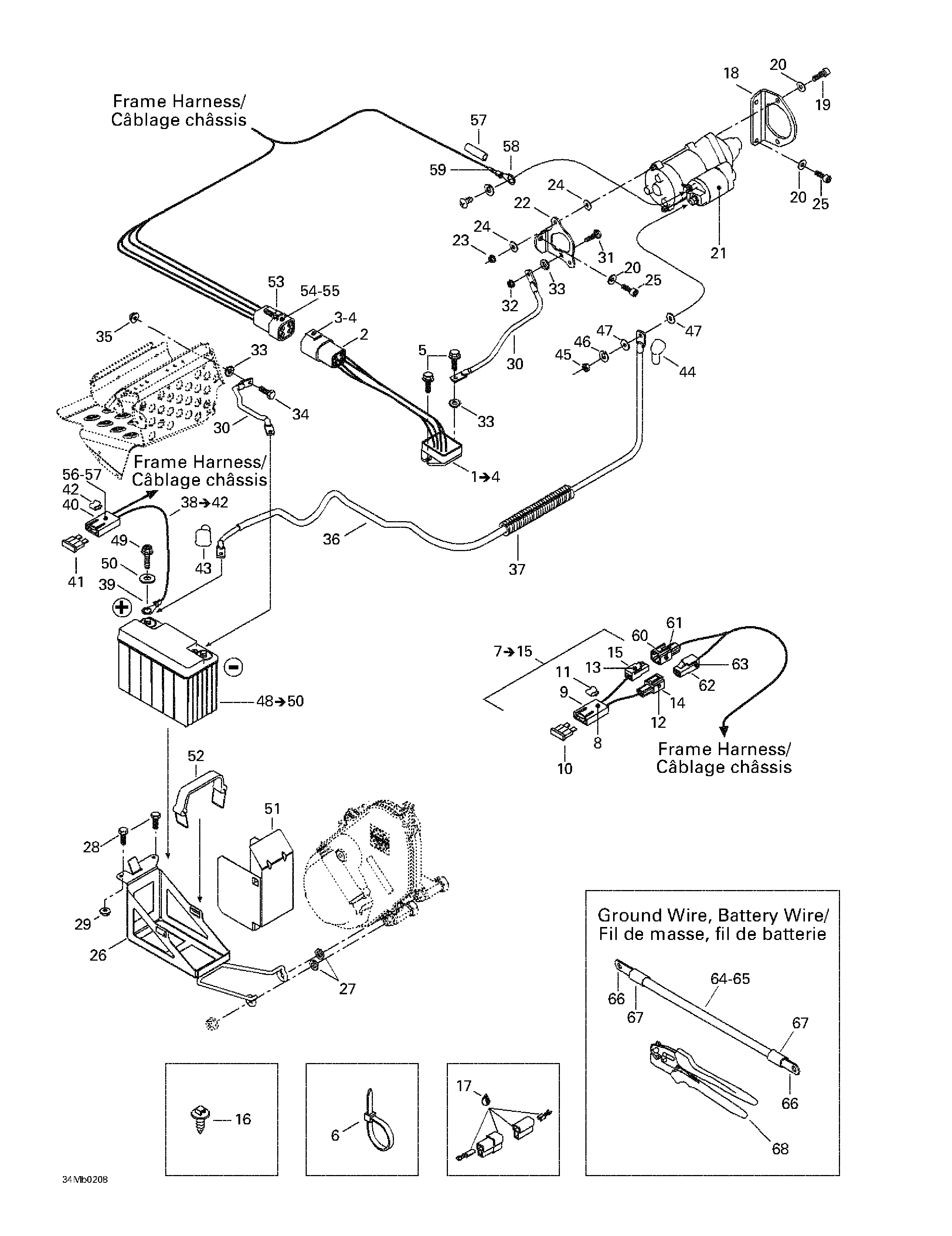

10- Battery And Starter для BRP Ski-Doo Legend 380F/500F - 2002
-
№АртикулНазвание
-
1515175656 Voltage Regulator. Includes 1 - 4. Legend 380 F. Legend 500 F.Voltage Regulator. Includes 1 - 4. Legend 380 F. Legend 500 F.
-
2278001477 Male Terminal Housing (4 Circuits). Legend 380 F. Legend 500 F.Male Terminal Housing (4 Circuits). Legend 380 F. Legend 500 F.
-
4278001478 (Female) Secondary Lock (4 Circuits) (Deutsch). Legend 380 F. Legend 500 F.(Female) Secondary Lock (4 Circuits) (Deutsch). Legend 380 F. Legend 500 F.
-
5210261680 Hex. Forming Screw M6 x 16. Legend 380 F. Legend 500 F.Hex. Forming Screw M6 x 16. Legend 380 F. Legend 500 F.
-
6293750001 Tie Rap 94 mm. Legend 380 F. Legend 500 F.Tie Rap 94 mm. Legend 380 F. Legend 500 F.
-
293750009 Tie Rap 160 mm. Legend 380 F. Legend 500 F.Tie Rap 160 mm. Legend 380 F. Legend 500 F.
-
414115200 Tie Rap 180 mm. Legend 380 F. Legend 500 F.Tie Rap 180 mm. Legend 380 F. Legend 500 F.
-
8409011600 Female Terminal. Legend 380 F. Legend 500 F.Female Terminal. Legend 380 F. Legend 500 F.
-
9409004000 Fuse Holder. Legend 380 F. Legend 500 F.Fuse Holder. Legend 380 F. Legend 500 F.
-
10409003900 Fuse (20 Amperes). Legend 380 F. Legend 500 F.Fuse (20 Amperes). Legend 380 F. Legend 500 F.
-
11409014200 Backward Clip. Legend 380 F. Legend 500 F.Backward Clip. Legend 380 F. Legend 500 F.
-
12515175273 Male Terminal. Legend 380 F. Legend 500 F.Male Terminal. Legend 380 F. Legend 500 F.
-
13515175282 Female Terminal. Legend 380 F. Legend 500 F.Female Terminal. Legend 380 F. Legend 500 F.
-
14515175509 Male Terminal Housing (1 Circuit). Legend 380 F. Legend 500 F.Male Terminal Housing (1 Circuit). Legend 380 F. Legend 500 F.
-
15515175510 Female Terminal Housing (1 Circuit). Legend 380 F. Legend 500 F.Female Terminal Housing (1 Circuit). Legend 380 F. Legend 500 F.
-
16293730018 Dart Mount. Legend 380 F. Legend 500 F.Dart Mount. Legend 380 F. Legend 500 F.
-
17293550004 Dielectric Grease, 150 g. Legend 380 F. Legend 500 F.Dielectric Grease, 150 g. Legend 380 F. Legend 500 F.
-
18515175659 Starter Bracket (PTO). Legend 380 F.Starter Bracket (PTO). Legend 380 F.
-
515175652 Starter Bracket (PTO). Legend 500 F.Starter Bracket (PTO). Legend 500 F.
-
19205082544 Socket Head Screw M8 x 25. Legend 380 F. Legend 500 F.Socket Head Screw M8 x 25. Legend 380 F. Legend 500 F.
-
20234181401 Lock Washer 8 mm. Legend 380 F. Legend 500 F.Lock Washer 8 mm. Legend 380 F. Legend 500 F.
-
21515175795 Starter. Legend 380 F. Legend 500 F.Starter. Legend 380 F. Legend 500 F.
-
22515175660 Starter Bracket (MAG). Legend 380 F.Starter Bracket (MAG). Legend 380 F.
-
515175633 Starter Bracket (MAG). Legend 500 F.Starter Bracket (MAG). Legend 500 F.
-
23232551414 Elastic Stop Nut M5. Legend 380 F. Legend 500 F.Elastic Stop Nut M5. Legend 380 F. Legend 500 F.
-
24391301700 Washer. Legend 380 F. Legend 500 F.Washer. Legend 380 F. Legend 500 F.
-
25205082044 Socket Head Screw M8 x 20. Legend 380 F. Legend 500 F.Socket Head Screw M8 x 20. Legend 380 F. Legend 500 F.
-
26515175625 Battery Support. Legend 380 F. Legend 500 F.Battery Support. Legend 380 F. Legend 500 F.
-
27503175800 Washer. Legend 380 F. Legend 500 F.Washer. Legend 380 F. Legend 500 F.
-
28207151444 Hex. Screw M5 x 14. Legend 380 F. Legend 500 F.Hex. Screw M5 x 14. Legend 380 F. Legend 500 F.
-
29233251414 Elastic Flanged Nut M5. Legend 380 F. Legend 500 F.Elastic Flanged Nut M5. Legend 380 F. Legend 500 F.
-
31207762044 Carriage Bolt M6 x 20. Legend 380 F. Legend 500 F.Carriage Bolt M6 x 20. Legend 380 F. Legend 500 F.
-
32233261414 Elastic Flanged Nut M6. Legend 380 F. Legend 500 F.Elastic Flanged Nut M6. Legend 380 F. Legend 500 F.
-
33250200000 Serrated Lock Washer 6 mm. Legend 380 F. Legend 500 F.Serrated Lock Washer 6 mm. Legend 380 F. Legend 500 F.
-
34207161644 Hex. Screw M6 x 16. Legend 380 F. Legend 500 F.Hex. Screw M6 x 16. Legend 380 F. Legend 500 F.
-
35233261414 Elastic Flanged Nut M6. Legend 380 F. Legend 500 F.Elastic Flanged Nut M6. Legend 380 F. Legend 500 F.
-
37409901700 Tubing. Legend 380 F. Legend 500 F.Tubing. Legend 380 F. Legend 500 F.
-
38515175489 Battery Fuse Wire. Includes 38 - 42. Legend 380 F. Legend 500 F.Battery Fuse Wire. Includes 38 - 42. Legend 380 F. Legend 500 F.
-
39278000992 Ring Terminal. Legend 380 F. Legend 500 F.Ring Terminal. Legend 380 F. Legend 500 F.
-
40409004000 Fuse Holder. Legend 380 F. Legend 500 F.Fuse Holder. Legend 380 F. Legend 500 F.
-
41410917200 Fuse (30 Amperes). Legend 380 F. Legend 500 F.Fuse (30 Amperes). Legend 380 F. Legend 500 F.
-
42409014200 Backward Clip. Legend 380 F. Legend 500 F.Backward Clip. Legend 380 F. Legend 500 F.
-
43570151000 Protector Cap. Legend 380 F. Legend 500 F.Protector Cap. Legend 380 F. Legend 500 F.
-
44278000020 Protector Cap. Legend 380 F. Legend 500 F.Protector Cap. Legend 380 F. Legend 500 F.
-
45232081414 Hex. Nut M8. Legend 380 F. Legend 500 F.Hex. Nut M8. Legend 380 F. Legend 500 F.
-
46234181401 Lock Washer 8 mm. Legend 380 F. Legend 500 F.Lock Washer 8 mm. Legend 380 F. Legend 500 F.
-
47234081410 Flat Washer 8 mm. Legend 380 F. Legend 500 F.Flat Washer 8 mm. Legend 380 F. Legend 500 F.
-
48515175642 Battery (18 Amperes). Includes 48 - 50. Legend 380 F.Battery (18 Amperes). Includes 48 - 50. Legend 380 F.
-
515175759 Battery (18 Amperes). Legend 500 F.Battery (18 Amperes). Legend 500 F.
-
51515175643 Deflector. Legend 380 F. Legend 500 F.Deflector. Legend 380 F. Legend 500 F.
-
52515175475 Battery Strap. Legend 380 F. Legend 500 F.Battery Strap. Legend 380 F. Legend 500 F.
-
53278001473 Female Terminal Housing (4 Circuits). Legend 380 F. Legend 500 F.Female Terminal Housing (4 Circuits). Legend 380 F. Legend 500 F.
-
54278001474 Female Lock (4 Circuits). Legend 380 F. Legend 500 F.Female Lock (4 Circuits). Legend 380 F. Legend 500 F.
-
55515175567 Female Terminal. Legend 380 F. Legend 500 F.Female Terminal. Legend 380 F. Legend 500 F.
-
57415079200 Hose. Legend 380 F. Legend 500 F.Hose. Legend 380 F. Legend 500 F.
-
58515175504 Ring Terminal. Legend 380 F. Legend 500 F.Ring Terminal. Legend 380 F. Legend 500 F.
-
59515175608 Tubing (Thermo). Legend 380 F. Legend 500 F.Tubing (Thermo). Legend 380 F. Legend 500 F.
-
60515175510 Female Terminal Housing (1 Circuit). Legend 380 F. Legend 500 F.Female Terminal Housing (1 Circuit). Legend 380 F. Legend 500 F.
-
61515175273 Male Terminal. Legend 380 F. Legend 500 F.Male Terminal. Legend 380 F. Legend 500 F.
-
62515175509 Male Terminal Housing (1 Circuit). Legend 380 F. Legend 500 F.Male Terminal Housing (1 Circuit). Legend 380 F. Legend 500 F.
-
63515175282 Female Terminal. Legend 380 F. Legend 500 F.Female Terminal. Legend 380 F. Legend 500 F.
-
64278001680 Ground Cable Battery (no. 6) (Meter)Ground Cable Battery (no. 6) (Meter)
-
278001681 Ground Cable Battery (no. 4) (Meter)Ground Cable Battery (no. 4) (Meter)
-
65278001690 Red Cable Battery (no. 6) (Meter)Red Cable Battery (no. 6) (Meter)
-
66278001682 Flat Terminal (Small Hole)Flat Terminal (Small Hole)
-
278001683 Terminal 45 Deg. (Small Hole)Terminal 45 Deg. (Small Hole)
-
278001684 Terminal 90 Deg. (Small Hole)Terminal 90 Deg. (Small Hole)
-
278001685 Flat Terminal (Big Hole)Flat Terminal (Big Hole)
-
278001686 Terminal 45 Deg. (Big Hole)Terminal 45 Deg. (Big Hole)
-
278001687 Terminal 90 Deg. (Big Hole)Terminal 90 Deg. (Big Hole)
-
278001688 Flat TerminalFlat Terminal
-
67278001692 Heat ShrinkHeat Shrink
-
68529035730 Crimp PlierCrimp Plier
