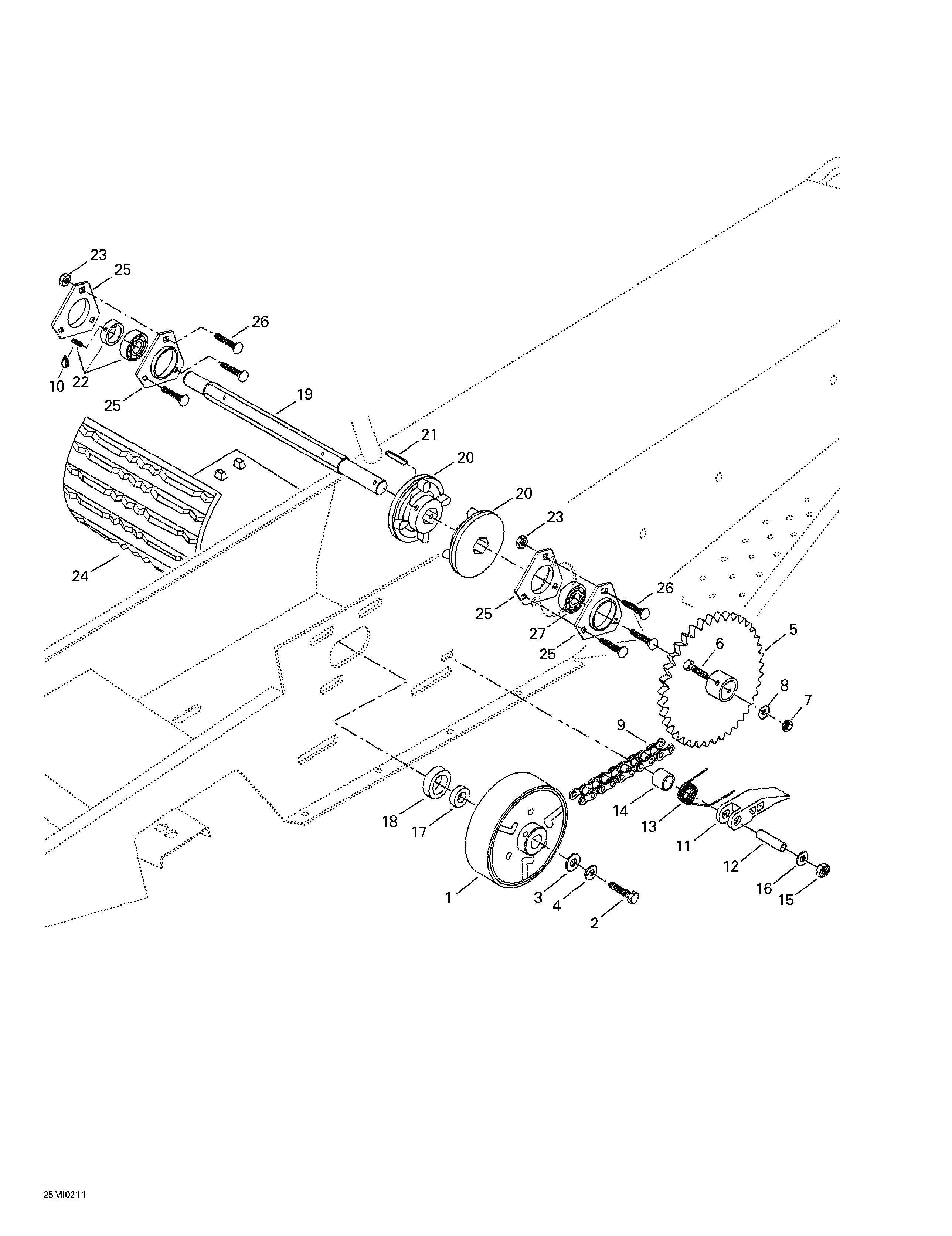

05- Drive Axle And Track для BRP Ski-Doo Mini Z - 2002
-
№АртикулНазвание
-
1417217200 Drive Pulley Ass'yDrive Pulley Ass'y
-
2309808900 Hex. Screw 5/16-24Hex. Screw 5/16-24
-
3234082410 Flat Washer 8 mmFlat Washer 8 mm
-
4234181401 Lock Washer 8 mmLock Washer 8 mm
-
5504149500 Sprocket (48 Tooth-Large)Sprocket (48 Tooth-Large)
-
6417126304 Hex. Screw M8 x 60Hex. Screw M8 x 60
-
7232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
8234081410 Flat Washer 8 mmFlat Washer 8 mm
-
9412107500 ChainChain
-
10293800060 Loctite 243, 10 ccLoctite 243, 10 cc
-
11572041600 Chain TensionerChain Tensioner
-
12504051600 SpacerSpacer
-
13415123000 SpringSpring
-
14504018200 SpacerSpacer
-
15232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
16224061121 Flat WasherFlat Washer
-
17504150500 ExtensionExtension
-
18504150600 SpacerSpacer
-
19504152025 Drive AxleDrive Axle
-
20504151794 4 Tooth Sprocket4 Tooth Sprocket
-
21211400016 Rolled Pin M6 x 40Rolled Pin M6 x 40
-
22504152072 Ball BearingBall Bearing
-
23232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
24570211900 TrackTrack
-
25501025000 FlangeFlange
-
26207781644 Carriage Bolt M8 x 16Carriage Bolt M8 x 16
-
27504152073 Ball BearingBall Bearing
