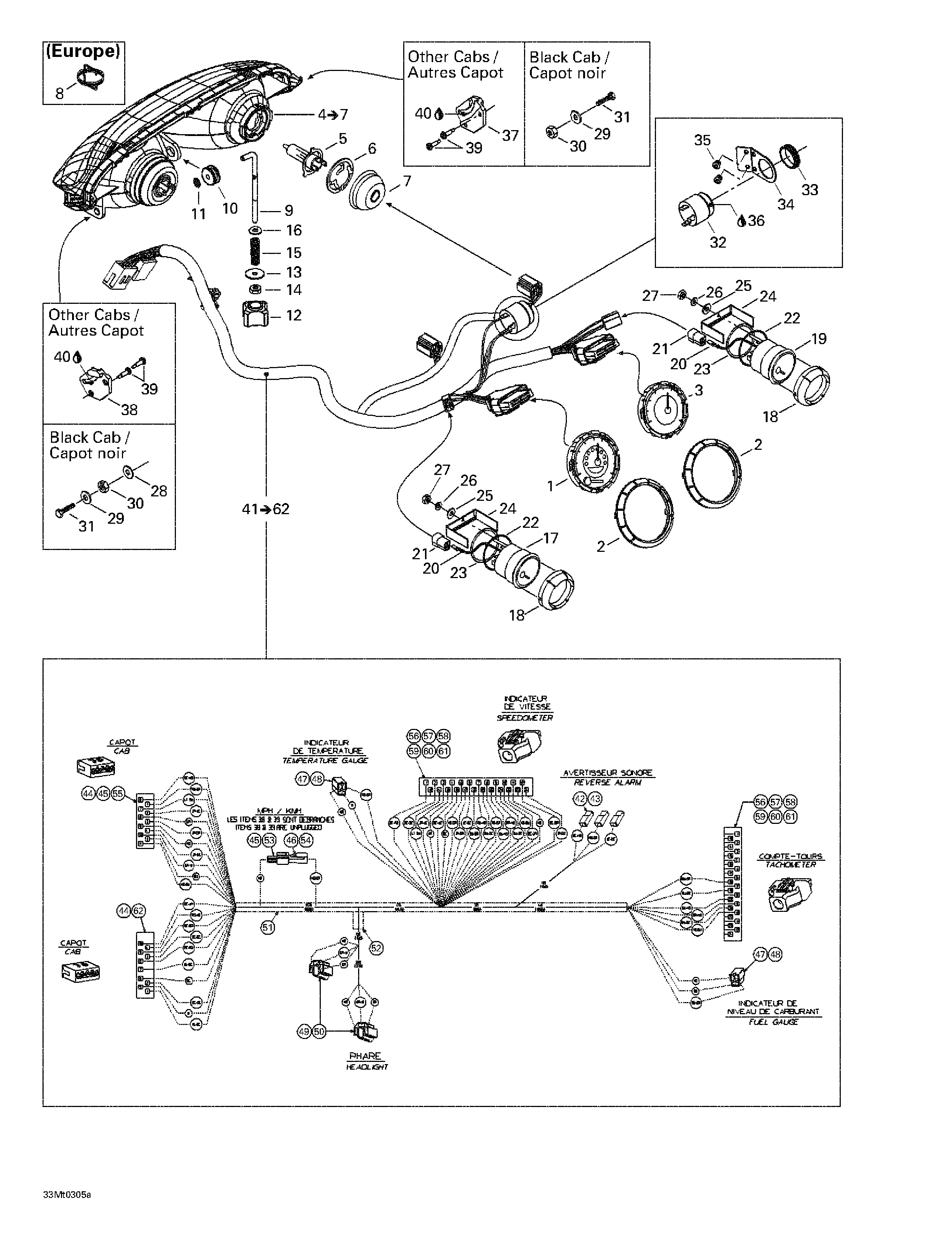

10- Electrical System - Hood для BRP Ski-Doo Grand Touring SE 800 SDI - 2003
-
№АртикулНазвание
-
1515175828 Speedometer (SE)Speedometer (SE)
-
1515175747 Speedometer (SE-AIR)Speedometer (SE-AIR)
-
2515175651 Gauge ringGauge ring
-
3515175943 TachometerTachometer
-
4515175909 Halogen headlamp. Includes 4 - 7.Halogen headlamp. Includes 4 - 7.
-
5410504401 Halogen bulb (60/55 W, 12 V)Halogen bulb (60/55 W, 12 V)
-
6515175910 Bulb holderBulb holder
-
7515175911 CoverCover
-
8515175324 Spring (Europe, 2 tones cab). Grand Touring SE 800 SDI.Spring (Europe, 2 tones cab). Grand Touring SE 800 SDI.
-
9517295800 Adjuster rodAdjuster rod
-
10415100800 GrommetGrommet
-
11732610072 Push nutPush nut
-
12515175548 HandleHandle
-
13224060251 WasherWasher
-
14232561414 Elastis stop nut M6Elastis stop nut M6
-
15415100600 SpringSpring
-
16234061410 Flat washer 6 mmFlat washer 6 mm
-
17515175601 Temperature GaugeTemperature Gauge
-
18515175711 Ring GaugeRing Gauge
-
19515175529 Fuel GaugeFuel Gauge
-
20409210000 Male TerminalMale Terminal
-
21409204200 Male Terminal Housing (3 Circuits)Male Terminal Housing (3 Circuits)
-
22414807200 O-RingO-Ring
-
23517258600 Formed WasherFormed Washer
-
24415099800 Case HolderCase Holder
-
25391301700 Flat WasherFlat Washer
-
26414833700 Lock WasherLock Washer
-
27414833600 NutNut
-
28234001410 Flat washer M10 (Black Cab). Legend SE 800 SDI.Flat washer M10 (Black Cab). Legend SE 800 SDI.
-
29234051410 Flat washer M5 (Black Cab). Legend SE 800 SDI.Flat washer M5 (Black Cab). Legend SE 800 SDI.
-
30250100018 Cushion nut M5 x 0.8mm (Black Cab). Legend SE 800 SDI.Cushion nut M5 x 0.8mm (Black Cab). Legend SE 800 SDI.
-
31207053544 Hex screw M5 x 35 (Black Cab). Legend SE 800 SDI.Hex screw M5 x 35 (Black Cab). Legend SE 800 SDI.
-
32515175931 HornHorn
-
33414805101 Plastic nutPlastic nut
-
34515175688 PlatePlate
-
35390402200 Pop rivet 3/16''Pop rivet 3/16''
-
36296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
37517289300 R.H. supportR.H. support
-
38517289400 L.H. supportL.H. support
-
39732601315 Headlamp screwHeadlamp screw
-
40413707500 Grease tube LMZ, 400 gGrease tube LMZ, 400 g
-
41515175614 Hood harness. Includes 41 - 62.Hood harness. Includes 41 - 62.
-
42409010100 Female terminalFemale terminal
-
43409010400 Female terminal housing (1 circuit)Female terminal housing (1 circuit)
-
44515175232 Male terminalMale terminal
-
45515175273 Male terminalMale terminal
-
46515175282 Female terminalFemale terminal
-
47561503100 Female terminalFemale terminal
-
48409204300 Female terminal housing (3 circuit)Female terminal housing (3 circuit)
-
49515175321 Female terminalFemale terminal
-
50409202700 Female terminal housing (3 circuit)Female terminal housing (3 circuit)
-
51415080000 Tubing (16 mm)Tubing (16 mm)
-
52415079900 Tubing (10 mm)Tubing (10 mm)
-
53515175509 Male terminal housing (1 Circuit)Male terminal housing (1 Circuit)
-
54515175510 Female terminal housing (1 Circuit)Female terminal housing (1 Circuit)
-
55515175720 Male terminal housing (11 Circuit)Male terminal housing (11 Circuit)
-
56515175812 PlugPlug
-
57515175801 Female terminal housing (24 circuits)Female terminal housing (24 circuits)
-
58515175802 RetainerRetainer
-
59515175803 Wire sealWire seal
-
60515175804 BlockBlock
-
61515175806 Female terminalFemale terminal
-
62415128526 Male terminal housing (10 Circuit)Male terminal housing (10 Circuit)
