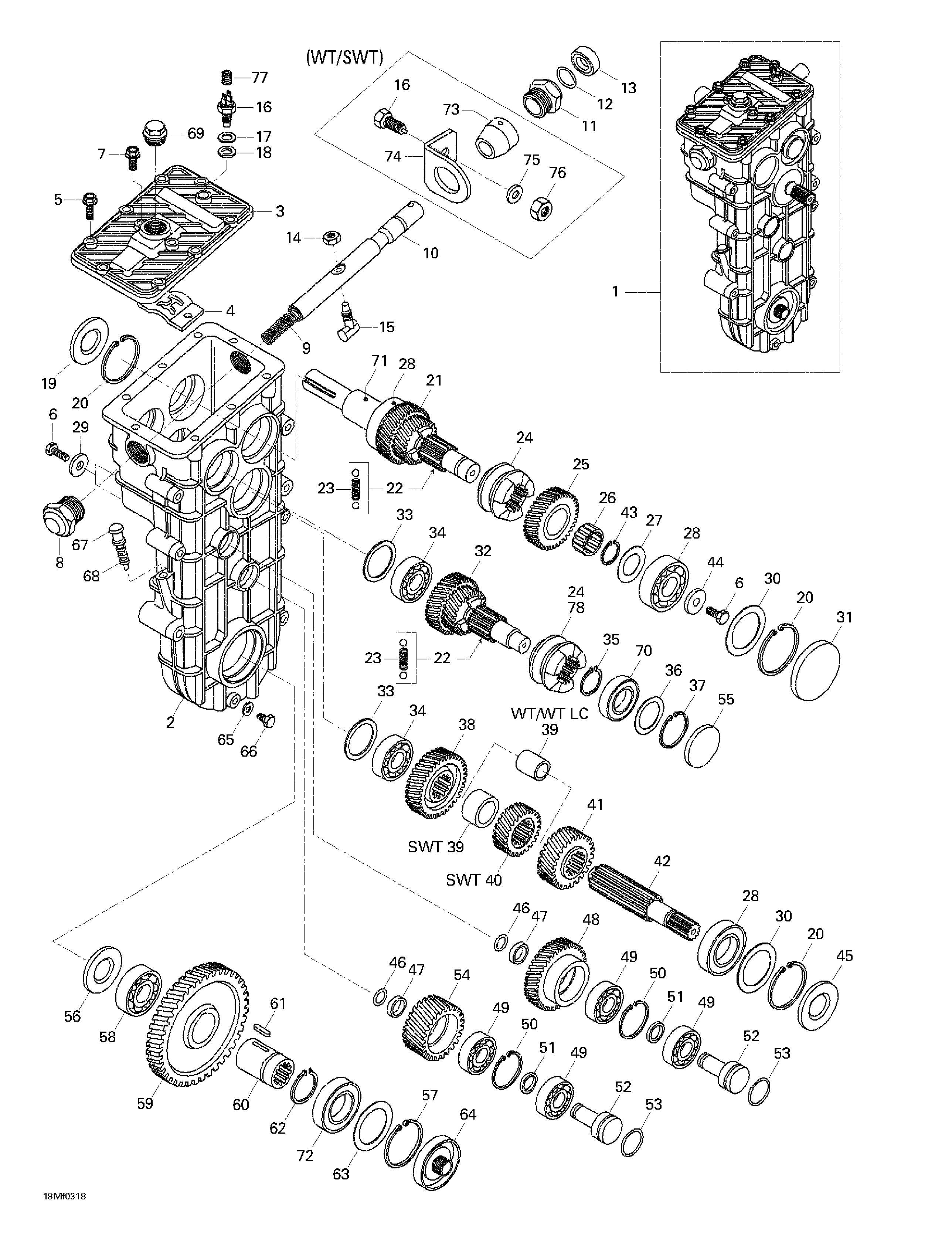

05- Transmission для BRP Ski-Doo Skandic Super Wide Track 500 F - 2003
-
№АртикулНазвание
-
2M875156138 ChaincaseChaincase
-
3M875156043 CoverCover
-
4M875156111 H-SchemeH-Scheme
-
5M537001402 ScrewScrew
-
6207182044 Hex. Screw M8 x 20Hex. Screw M8 x 20
-
7M534801362 ScrewScrew
-
8M875156076 Sleeve NutSleeve Nut
-
9M875156078 Spring. Skandic 500F. Skandic 600.Spring. Skandic 500F. Skandic 600.
-
10M875156072 ShaftShaft
-
11M875156077 Sleeve NutSleeve Nut
-
12M614601523 O-RingO-Ring
-
13M614102031 Ring LockRing Lock
-
14M510611002 NutNut
-
15M875156073 PinPin
-
16M654100225 SenderSender
-
17M875156225 Shim. Skandic 600.Shim. Skandic 600.
-
18M617391218 Sealing Ring. Skandic 600.Sealing Ring. Skandic 600.
-
19M614103562 Oil SealOil Seal
-
20M617330062 Ring LockRing Lock
-
21M875156063 Shaft. Skandic 500F. Skandic 600.Shaft. Skandic 500F. Skandic 600.
-
M875156155 Shaft. Skandic 500F (SWT).Shaft. Skandic 500F (SWT).
-
22M616810064 BallBall
-
23M875156105 SpringSpring
-
24M875156005 Wheel ClutchWheel Clutch
-
25M875156052 Sprocket (27 Tooth). Skandic 500F.Sprocket (27 Tooth). Skandic 500F.
-
M875156135 Sprocket (29 Tooth). Skandic 500F (SWT). Skandic 600.Sprocket (29 Tooth). Skandic 500F (SWT). Skandic 600.
-
26M611002529 Needle BearingNeedle Bearing
-
27M616092542 WasherWasher
-
28M610063050 Ball BearingBall Bearing
-
29M875156099 Washer. Skandic 500F. Skandic 600.Washer. Skandic 500F. Skandic 600.
-
M501150902 Washer. Skandic 500F (SWT).Washer. Skandic 500F (SWT).
-
30M617395065 ShimShim
-
31M614100062 PlugPlug
-
32M875156068 Reverse ShaftReverse Shaft
-
33M875152953 PlugPlug
-
34M610063044G Ball BearingBall Bearing
-
35M617450028 CirclipCirclip
-
36M617394252 ShimShim
-
37M617330052G CirclipCirclip
-
38M875156054 Sprocket (34 Tooth)Sprocket (34 Tooth)
-
39M875156087 Sleeve. Skandic 500F.Sleeve. Skandic 500F.
-
M875156088 Sleeve. Skandic 500F (SWT). Skandic 600.Sleeve. Skandic 500F (SWT). Skandic 600.
-
40M875156060 Sprocket (24 Tooth). Skandic 500F (SWT).Sprocket (24 Tooth). Skandic 500F (SWT).
-
M875156151 Sprocket (29 Tooth). Skandic 600.Sprocket (29 Tooth). Skandic 600.
-
41M875156051 Sprocket (29 Tooth). Skandic 500F.Sprocket (29 Tooth). Skandic 500F.
-
M875156136 Sprocket (27 Tooth). Skandic 500F (SWT). Skandic 600.Sprocket (27 Tooth). Skandic 500F (SWT). Skandic 600.
-
42M875156069 ShaftShaft
-
43M617450025 CirclipCirclip
-
44M875156112 WasherWasher
-
45M614102562 Oil SealOil Seal
-
46M614601224 O-RingO-Ring
-
47M875156094 RingRing
-
48M875156050 Sprocket (28 Tooth). Skandic 500F.Sprocket (28 Tooth). Skandic 500F.
-
M875156059 Sprocket (33 Tooth). Skandic 500F (SWT).Sprocket (33 Tooth). Skandic 500F (SWT).
-
M875156206 Sprocket (28 Tooth). Skandic 600.Sprocket (28 Tooth). Skandic 600.
-
49M610063035 Ball Bearing. Skandic 500F. Skandic 600.Ball Bearing. Skandic 500F. Skandic 600.
-
M610063036 Ball Bearing. Skandic 500F (SWT).Ball Bearing. Skandic 500F (SWT).
-
50M617330047 CirclipCirclip
-
51M875147205 WasherWasher
-
52M875147204 ShaftShaft
-
53M614602431 O-RingO-Ring
-
54M875156049 Sprocket (31 Tooth). Skandic 500F.Sprocket (31 Tooth). Skandic 500F.
-
M875156058 Sprocket (26 Tooth). Skandic 500F (SWT).Sprocket (26 Tooth). Skandic 500F (SWT).
-
M875156156 Sprocket (31 Tooth). Skandic 600.Sprocket (31 Tooth). Skandic 600.
-
55M614100052 PlugPlug
-
56M2652101 Oil Seal. Skandic 500F.Oil Seal. Skandic 500F.
-
M614102852 Oil Seal. Skandic 500F (SWT). Skandic 600.Oil Seal. Skandic 500F (SWT). Skandic 600.
-
57M617330068 CirclipCirclip
-
58M6008 Ball BearingBall Bearing
-
59M875156048 Sprocket (55 Tooth). Skandic 500F.Sprocket (55 Tooth). Skandic 500F.
-
M875156057 Sprocket (59 Tooth). Skandic 500F (SWT).Sprocket (59 Tooth). Skandic 500F (SWT).
-
M875156114 Sprocket (53 Tooth). Skandic 600.Sprocket (53 Tooth). Skandic 600.
-
60M875136962 Lower Shaft. Skandic 500F. Skandic 500F (SWT).Lower Shaft. Skandic 500F. Skandic 500F (SWT).
-
M875156218 Lower Shaft. Skandic 600.Lower Shaft. Skandic 600.
-
61M603345070 Key. Skandic 500F. Skandic 500F (SWT).Key. Skandic 500F. Skandic 500F (SWT).
-
M603345080 Key. Skandic 600.Key. Skandic 600.
-
62M617300040 CirclipCirclip
-
63M617395568 ShimShim
-
64M875156104 PlugPlug
-
65M615580812 Ring GasketRing Gasket
-
66M528801342 PlugPlug
-
67M875156097 Filler CapFiller Cap
-
68M614600725 O-RingO-Ring
-
69M875156098 PlugPlug
-
70M610063040 Ball BearingBall Bearing
-
71M875156153 Sleeve. Skandic 500F (SWT).Sleeve. Skandic 500F (SWT).
-
M875156089 Sleeve. Skandic 500F. Skandic 600.Sleeve. Skandic 500F. Skandic 600.
-
72M610060084 Ball BearingBall Bearing
-
73M5446699 Sleeve. Skandic 500F. Skandic 500F (SWT).Sleeve. Skandic 500F. Skandic 500F (SWT).
-
74M5346698 Bracket. Skandic 500F. Skandic 500F (SWT).Bracket. Skandic 500F. Skandic 500F (SWT).
-
75M20016 Washer. Skandic 500F. Skandic 500F (SWT).Washer. Skandic 500F. Skandic 500F (SWT).
-
76M33021 Nut. Skandic 500F. Skandic 500F (SWT).Nut. Skandic 500F. Skandic 500F (SWT).
-
77M640025012S Plug. Skandic 500F. Skandic 500F (SWT).Plug. Skandic 500F. Skandic 500F (SWT).
-
78M875156005 Wheel Clutch. Skandic 500F (SWT).Wheel Clutch. Skandic 500F (SWT).
