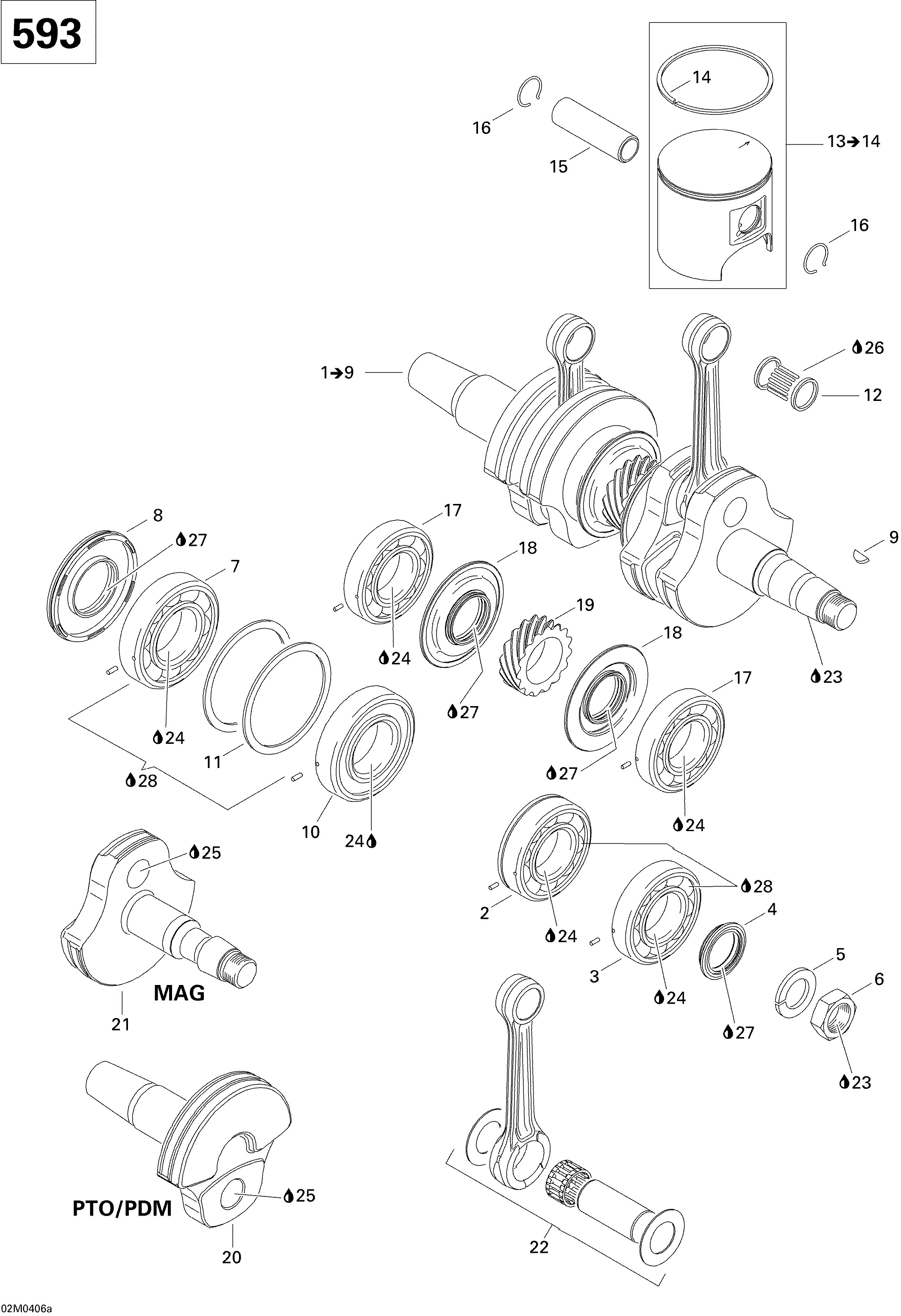

01- Crankshaft And Pistons (593) для BRP Ski-Doo GSX 500SS - 2004
-
№АртикулНазвание
-
1420888759 Crankshaft Ass'Y. INCLUDES ITEMS 1 TO 9Crankshaft Ass'Y. INCLUDES ITEMS 1 TO 9
-
2420832596 Ball BearingBall Bearing
-
3420832590 Ball Bearing 6206Ball Bearing 6206
-
4420931792 Oil SealOil Seal
-
5420945759 Lock Washer 22 mmLock Washer 22 mm
-
6420842234 Hex Nut M22Hex Nut M22
-
7420832575 Ball Bearing 6207Ball Bearing 6207
-
8420831952 Oil SealOil Seal
-
9420246015 Woodfuff KeyWoodfuff Key
-
10420832636 Ball Bearing With Oil Seal 6207Ball Bearing With Oil Seal 6207
-
11420927710 Retaining DiskRetaining Disk
-
12420832425 Needle BearingNeedle Bearing
-
13420889170 Piston Ass'Y With Rings 75.88 mm (Standard). INCLUDES ITEMS 13 TO 14Piston Ass'Y With Rings 75.88 mm (Standard). INCLUDES ITEMS 13 TO 14
-
420889171 Piston Ass'Y With Rings 76.13 mm (Oversize). INCLUDES ITEMS 13 TO 14Piston Ass'Y With Rings 76.13 mm (Oversize). INCLUDES ITEMS 13 TO 14
-
14420815155 Semi-Trapez Ring 76 mm (Standard)Semi-Trapez Ring 76 mm (Standard)
-
420815156 Semi-Trapez Ring 76.25 mm (Oversize)Semi-Trapez Ring 76.25 mm (Oversize)
-
15420916410 Gudgeon PinGudgeon Pin
-
16420845106 Piston CirclipPiston Circlip
-
17420832590 Ball Bearing 6206Ball Bearing 6206
-
18420931940 Oil SealOil Seal
-
19420834350 Central Gear 15 TeethCentral Gear 15 Teeth
-
20420818664 Crankshaft (PTO)Crankshaft (PTO)
-
21420818693 Crankshaft (Mag Side)Crankshaft (Mag Side)
-
22420888753 Rod Repair Kit (Mag Side)Rod Repair Kit (Mag Side)
-
420888754 Rod Repair Kit (PTO Side)Rod Repair Kit (PTO Side)
-
23293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
24293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
25413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
26413707000 Molykote 111Molykote 111
-
27420899271 Petamo Grease, Ghy133N, 400 GPetamo Grease, Ghy133N, 400 G
-
28293550021 Isoflex Grease, 50 GIsoflex Grease, 50 G
