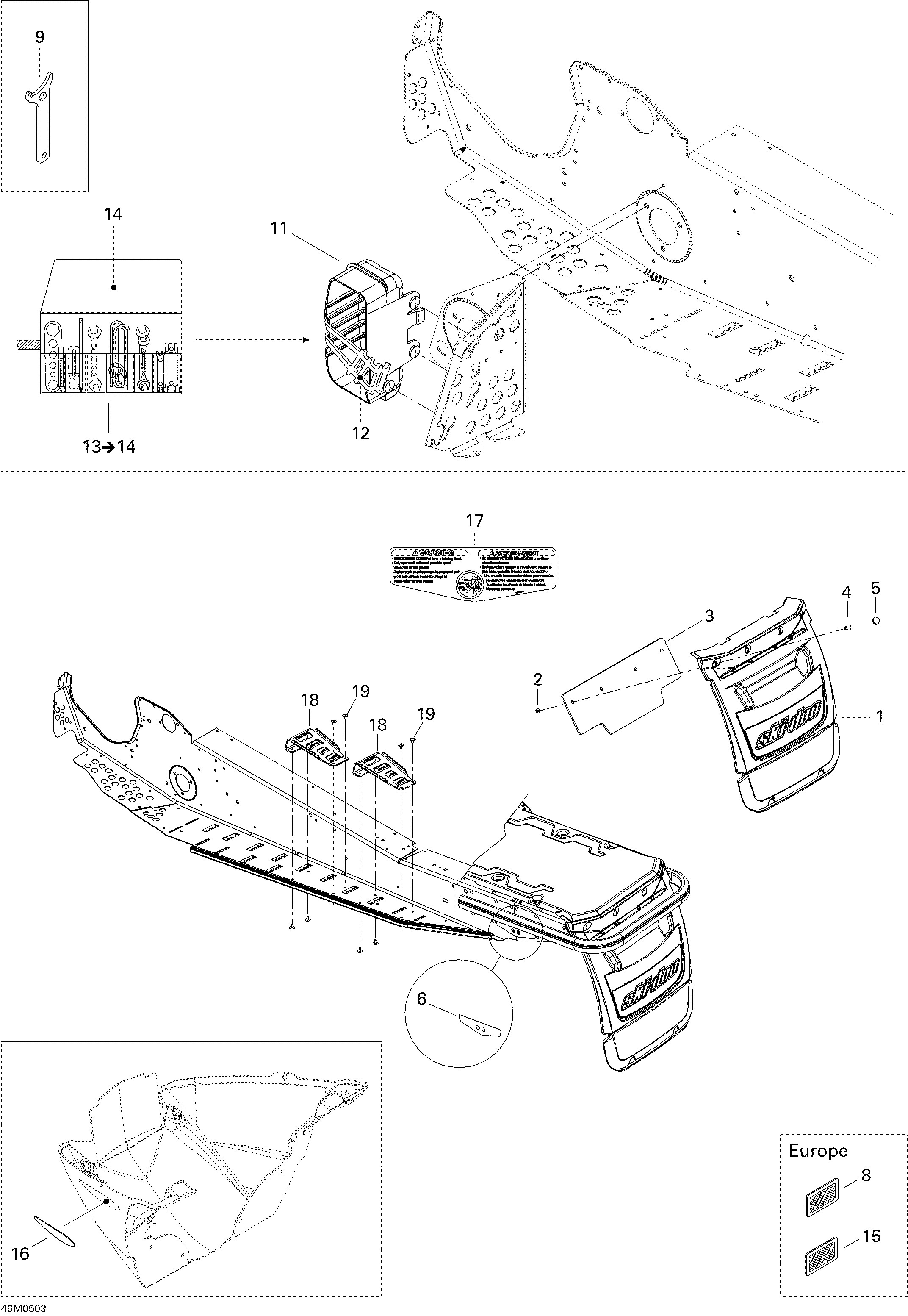

09- Utilities 550F для BRP Ski-Doo GTX 550F - 2005
-
№АртикулНазвание
-
1520000502 Snow GuardSnow Guard
-
2517225900 Flat WasherFlat Washer
-
3520000423 Snow Guard ReinforcementSnow Guard Reinforcement
-
4390906800 Pop Rivet 3/16''Pop Rivet 3/16''
-
5277000203 Cap (Black)Cap (Black)
-
6520000382 Rear ReflectorRear Reflector
-
6520000383 Rear Reflector. EuropeRear Reflector. Europe
-
8520000271 Reflector Amber (Europe). EuropeReflector Amber (Europe). Europe
-
9520000126 Adjustment WrenchAdjustment Wrench
-
11520000322 TrunkTrunk
-
12570069700 LatchLatch
-
13529035596 Tool KitTool Kit
-
14520000047 Tool BagTool Bag
-
15415037900 White Reflector, Europe. EuropeWhite Reflector, Europe. Europe
-
16516001336 Front ReflectorFront Reflector
-
17516002832 Warning Label, TrackWarning Label, Track
-
18520000492 Footrest. GTX 550FFootrest. GTX 550F
-
19390406500 Pop Rivet 3/16''. GTX 550FPop Rivet 3/16''. GTX 550F
