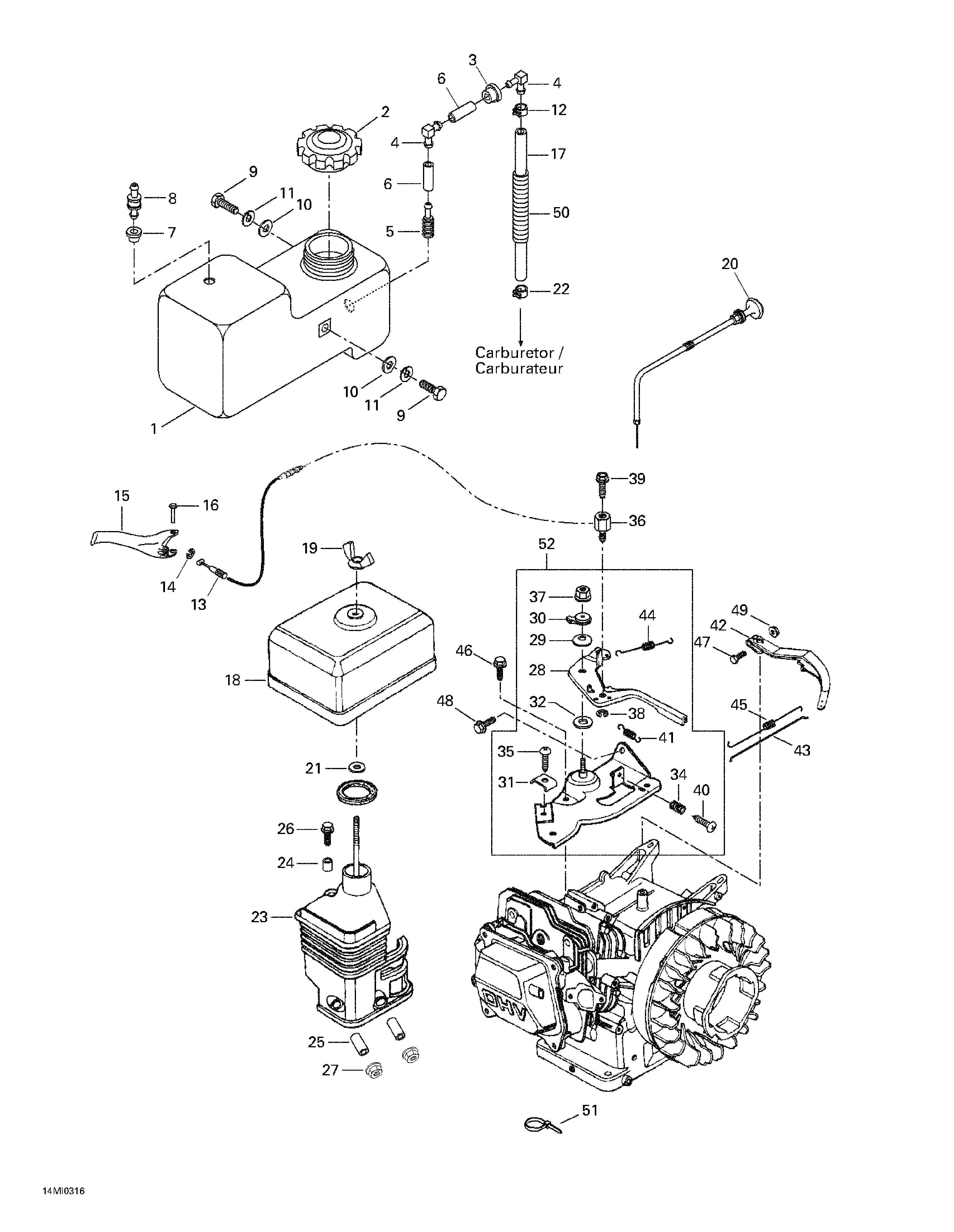

02- Fuel System для BRP Ski-Doo Mini Z - 2005
-
№АртикулНазвание
-
1571009800 Fuel TankFuel Tank
-
2572039600 CapCap
-
3570045500 GrommetGrommet
-
4414580600 Elbow Male ConnectorElbow Male Connector
-
5414865700 Fuel FilterFuel Filter
-
6415080200 LineLine
-
7570027700 GrommetGrommet
-
8275500398 Check ValveCheck Valve
-
9207161044 Hex. Screw M6 x 10Hex. Screw M6 x 10
-
10224061121 Flat WasherFlat Washer
-
11234161471 Lock Washer 6 mmLock Washer 6 mm
-
12414554800 Spring ClampSpring Clamp
-
13512060024 Throttle CableThrottle Cable
-
14414274500 CirclipCirclip
-
15506151227 Throttle HandleThrottle Handle
-
16390502000 Tubular RivetTubular Rivet
-
17513032924 LineLine
-
18H17230ZE0820 Intake CoverIntake Cover
-
19H90325044000 Wing NutWing Nut
-
20415108600 Choke CableChoke Cable
-
21234461608 Lock WasherLock Washer
-
22415127453 Spring ClampSpring Clamp
-
23H17410ZE0030 Air Cleaner Elbow Ass'y. Includes 23 - 25.Air Cleaner Elbow Ass'y. Includes 23 - 25.
-
24H17239ZE1000 Collar BCollar B
-
25H17238ZE0010 CollarCollar
-
26H957010602000 Flanged Bolt 6 x 20Flanged Bolt 6 x 20
-
27H9405006080 Flanged Nut 6 mmFlanged Nut 6 mm
-
28H16500ZH7810 Control Ass'y. Includes 28 - 40.Control Ass'y. Includes 28 - 40.
-
28H16571ZH7000 Control LeverControl Lever
-
29H16574ZE1000 Spring LeverSpring Lever
-
30H16575ZH8000 WasherWasher
-
31H16576891000 Cable HolderCable Holder
-
32H16578ZE1000 SpacerSpacer
-
33H16580ZH7810 BaseBase
-
34H16584883300 SpringSpring
-
35H93500050160B Pan Screw 5 x 16Pan Screw 5 x 16
-
36H16594883010 Cable HolderCable Holder
-
37H90114SA0000 NutNut
-
38H90605230000 CirclipCirclip
-
39H93500040060H ScrewScrew
-
40H93500050250H ScrewScrew
-
41512059048 Release SpringRelease Spring
-
42H16551ZE1010 Governor ArmGovernor Arm
-
43H16555ZE0000 Governor RodGovernor Rod
-
44H16561ZE0020 Governor SpringGovernor Spring
-
45H16562ZE0020 Throttle Return SpringThrottle Return Spring
-
46H90013883000 ScrewScrew
-
47H90015ZE5010 BoltBolt
-
48H90022888010 Flanged Bolt 6 x 20Flanged Bolt 6 x 20
-
49H9405006080 Flanged Nut 6 mmFlanged Nut 6 mm
-
50415079900 HousingHousing
-
51293750002 Tie Rap 130 mmTie Rap 130 mm
-
52H16500ZK7U50 Control Ass'yControl Ass'y
