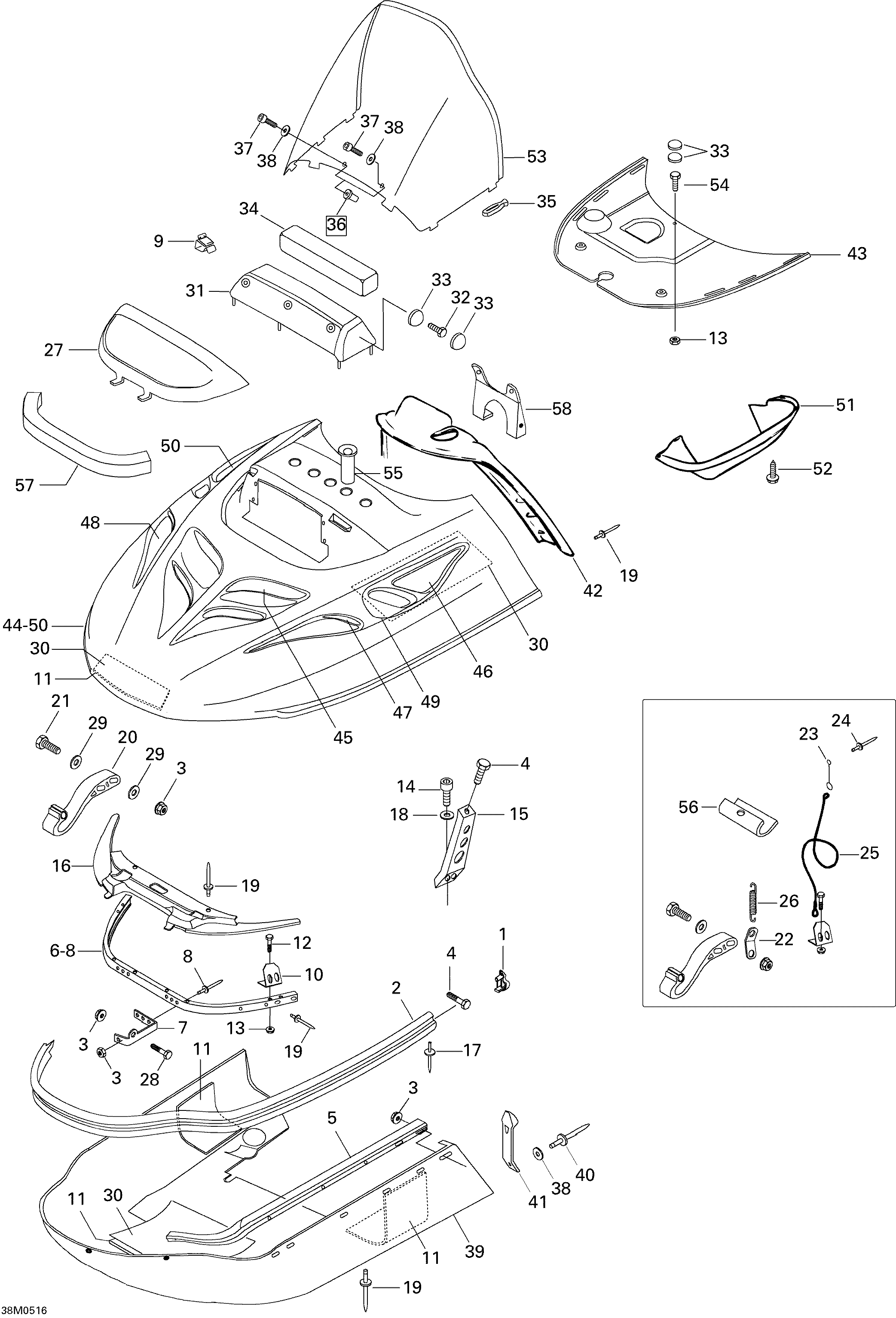

09- Cab And Console 550F SWT для BRP Ski-Doo Skandic SWT 550F - 2005
-
№АртикулНазвание
-
1M549096R RH CapRH Cap
-
1M549096L LH CapLH Cap
-
2M5242798 Front BumperFront Bumper
-
3M33200 Nut M6Nut M6
-
4M40078 ScrewScrew
-
5M5242804 RH Hood GuideRH Hood Guide
-
5M5242803 LH Hood GuideLH Hood Guide
-
6M5246120 Front Support. Includes 6 to 8Front Support. Includes 6 to 8
-
7M5342234 HingeHinge
-
7M5342345 HingeHinge
-
8M36083 RivetRivet
-
9414227300 ClipClip
-
10M5443217 Hood GuideHood Guide
-
11414631900 Acoustic FoamAcoustic Foam
-
12M40247 Screw M5 X 16Screw M5 X 16
-
13M33062 Nut M5Nut M5
-
14M40332 ScrewScrew
-
15M5342509 Bumper SupportBumper Support
-
16M5148319 Hinge ProtectorHinge Protector
-
17M36097 RivetRivet
-
18234161471 Lock Washer 6 mmLock Washer 6 mm
-
19M36036 Rivet-BlackRivet-Black
-
20M5343075 HingeHinge
-
21M40193 ScrewScrew
-
22M5443123 Spring PlateSpring Plate
-
23605449395 Cable Keeper. SWT 550Cable Keeper. SWT 550
-
24M36005 RivetRivet
-
25M5346947 Retainer Cable. SWT 550Retainer Cable. SWT 550
-
26M5442675 SpringSpring
-
27M5246396 Molding LampMolding Lamp
-
28M40084 Screw M6 X 45Screw M6 X 45
-
29M20009 Washer 6.4 Din 9021Washer 6.4 Din 9021
-
30M44001 Sheet ReflectionSheet Reflection
-
31605149010 Intake CoverIntake Cover
-
32M40901 Hex ScrewHex Screw
-
33M282000 CoverCover
-
34605349056 FilterFilter
-
35570023800 Windshield LatchWindshield Latch
-
36M28055 Welded NutWelded Nut
-
37M40156 ScrewScrew
-
38M20008 Washer 5 mmWasher 5 mm
-
39M5146314 Bottom Pan. SWT 550Bottom Pan. SWT 550
-
40M36037 Rivet. SWT 550Rivet. SWT 550
-
41570027100 Hood Latch. SWT 550Hood Latch. SWT 550
-
42605148419 Dash. SWT 550Dash. SWT 550
-
43M5246742 Air DuctAir Duct
-
44605149586 Hood Ass'y. SWT 550, Includes 44 to 50Hood Ass'y. SWT 550, Includes 44 to 50
-
45M5142669 Front GrillFront Grill
-
46M5242671 RH Upper GrillRH Upper Grill
-
47M5242672 RH Lower GrillRH Lower Grill
-
47M5342673 LH Lower GrillLH Lower Grill
-
51M5146986 Air Duct. SWT 550Air Duct. SWT 550
-
52414644300 Dart. SWT 550Dart. SWT 550
-
53M5147892 WindshieldWindshield
-
54M40179 Screw M5X25Screw M5X25
-
58M5347795 Support. SWT 550Support. SWT 550
