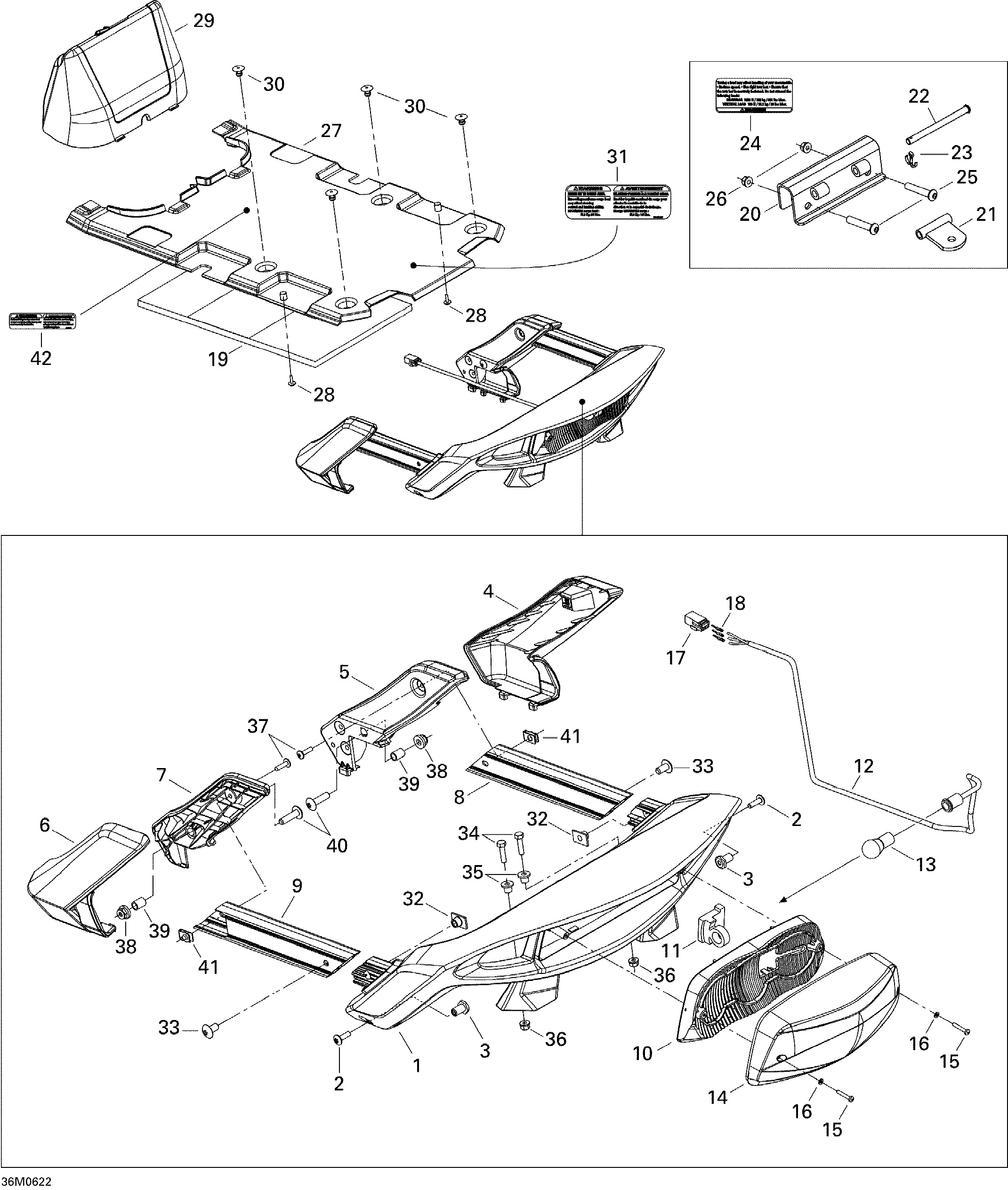

09- Luggage Rack для BRP Ski-Doo Expedition 550F - 2006
-
№АртикулНазвание
-
1511000317 RackRack
-
2250000128 Torx Screw M6 X 20Torx Screw M6 X 20
-
3511000398 InsertInsert
-
4511000322 RH Outside ArmRH Outside Arm
-
5511000326 RH Inside ArmRH Inside Arm
-
6511000323 LH Outside ArmLH Outside Arm
-
7511000327 LH Inside ArmLH Inside Arm
-
8511000321 RH Side BarRH Side Bar
-
9511000345 LH Side BarLH Side Bar
-
10510004442 ReflectorReflector
-
11511000431 Bulb SupportBulb Support
-
12511000466 Bulb SocketBulb Socket
-
13410504100 Tail Lamp BulbTail Lamp Bulb
-
14511000315 LensLens
-
15209632580 Phillips Tapping Screw 3.9 X 25Phillips Tapping Screw 3.9 X 25
-
16414516400 WasherWasher
-
17515175494 Male Terminal Housing, 3 CircuitsMale Terminal Housing, 3 Circuits
-
18515175232 Male TerminalMale Terminal
-
19511000364 Radiator Cover ShimRadiator Cover Shim
-
20511000391 Hitch, BlackHitch, Black
-
21517008700 Welded Hitch PlateWelded Hitch Plate
-
22505001700 Clevis PinClevis Pin
-
23371800200 Cotter PinCotter Pin
-
24516003037 Security LabelSecurity Label
-
24516003038 Security Label, FrenchSecurity Label, French
-
25205484546 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
26233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
27511000440 Radiator CoverRadiator Cover
-
28250000113 Screw M4 X 16, Type K-40Screw M4 X 16, Type K-40
-
29511000357 Tank CoverTank Cover
-
30293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
31516002960 Warning Label, Maximum Cargo LoadWarning Label, Maximum Cargo Load
-
32511000341 Thread InsertThread Insert
-
33250000198 Torx Screw M8 X 16Torx Screw M8 X 16
-
34207162544 Hex Screw M6 X 25Hex Screw M6 X 25
-
35511000340 Flanged BushingFlanged Bushing
-
36233261414 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
37250000197 Torx Screw M8 X 30Torx Screw M8 X 30
-
38233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
39511000325 BushingBushing
-
40250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
41250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
42516003035 Clenching DecalClenching Decal
