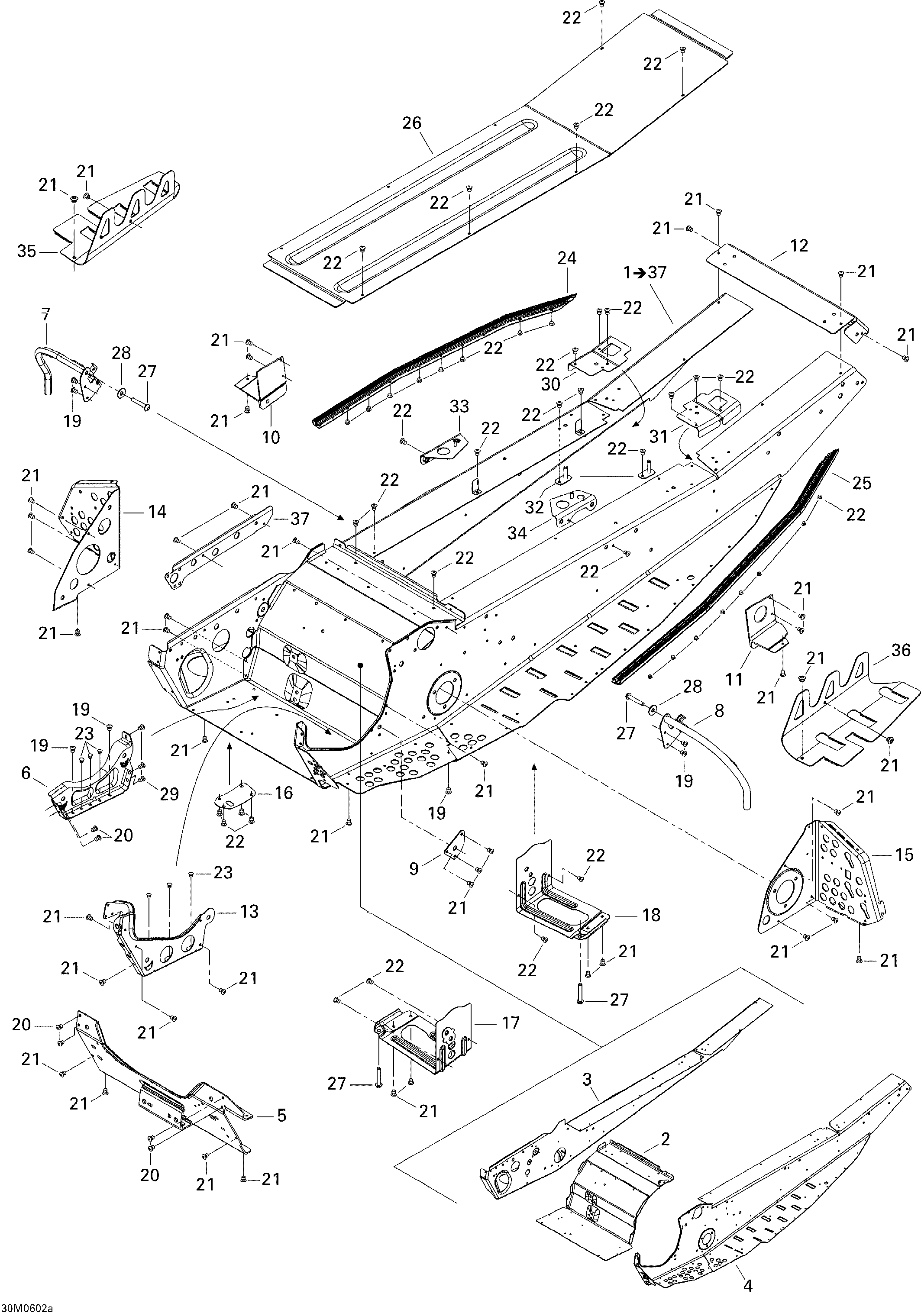

09- Frame GSX для BRP Ski-Doo GSX 380F - 2006
-
№АртикулНазвание
-
1518324766 Frame. Includes 1 to 37Frame. Includes 1 to 37
-
4518324486 LH FrameLH Frame
-
5518324114 Front Pan WeldFront Pan Weld
-
6518323346 Engine Support, BlackEngine Support, Black
-
7518324162 RH Toe Hold SupportRH Toe Hold Support
-
8518324163 LH Toe Hold SupportLH Toe Hold Support
-
9518323507 Outer ReinforcementOuter Reinforcement
-
10518324488 RH Slide BracketRH Slide Bracket
-
11518324489 LH Slide BracketLH Slide Bracket
-
12518324279 Rear CapRear Cap
-
13518323241 Inner Reinforcement, BlackInner Reinforcement, Black
-
14518323805 RH Footrest ReinforcementRH Footrest Reinforcement
-
15518324527 LH Footrest ReinforcementLH Footrest Reinforcement
-
16518324169 PlatePlate
-
17518324634 RH Reinforcement, BlackRH Reinforcement, Black
-
18518324635 LH Reinforcement, BlackLH Reinforcement, Black
-
19390909200 Avex RivetAvex Rivet
-
20390909100 Avex RivetAvex Rivet
-
21390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
22390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
23390910300 Rivet HenrobRivet Henrob
-
24518324953 RH RollerRH Roller
-
25518324954 LH RollerLH Roller
-
26518324088 Center PlateCenter Plate
-
27205982086 Socket Head Screw M8 X 20, Scotch GripSocket Head Screw M8 X 20, Scotch Grip
-
28234082410 Flat Washer M8Flat Washer M8
-
29293150096 RivetRivet
-
30518324431 RH Frame ReinforcementRH Frame Reinforcement
-
31518324432 LH Frame ReinforcementLH Frame Reinforcement
-
32518322791 Tank BracketTank Bracket
-
33518324385 RH Frame Reinforcement, BlackRH Frame Reinforcement, Black
-
34518324386 LH Frame Reinforcement, BlackLH Frame Reinforcement, Black
-
35518323307 RH Tunnel LinerRH Tunnel Liner
-
36518323309 LH Tunnel LinerLH Tunnel Liner
-
37518323328 RH Tunnel StiffenerRH Tunnel Stiffener
