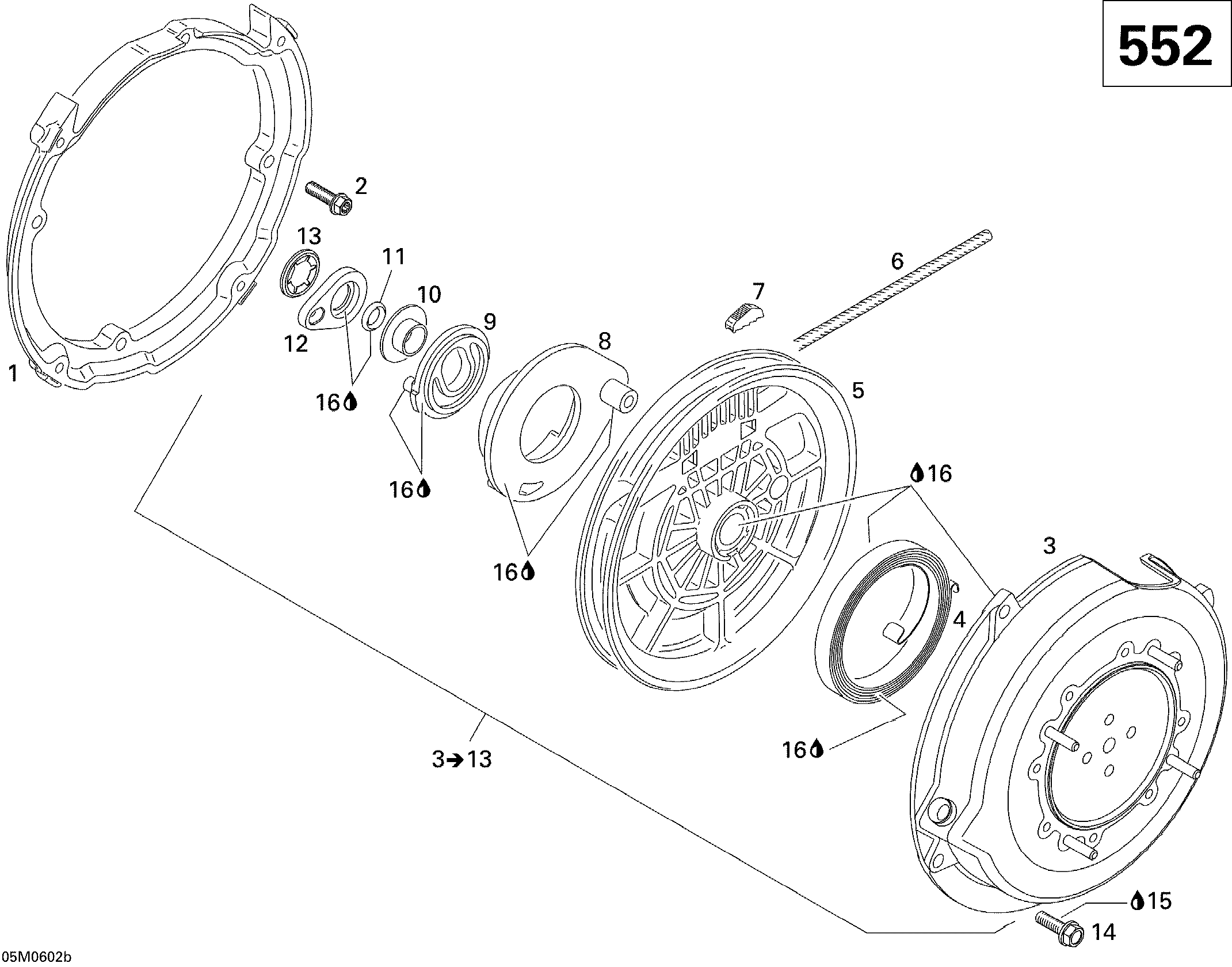

04- Rewind Starter GSX 552 для BRP Ski-Doo GSX 550F - 2006
-
№АртикулНазвание
-
1420810952 Flange ConnectorFlange Connector
-
2420440202 Flanged Torx Screw M6x 20Flanged Torx Screw M6x 20
-
3420890170 Rewing Starter Ass'y. Includes 3 to 13Rewing Starter Ass'y. Includes 3 to 13
-
3420812570 Starter HousingStarter Housing
-
4420939115 Rewind SpringRewind Spring
-
5420852480 Rope SheaveRope Sheave
-
6412500200 Starter RopeStarter Rope
-
7420852070 Key ClampKey Clamp
-
8420852296 PawlPawl
-
9420852307 Pawl LockPawl Lock
-
10420847925 Stage SleeveStage Sleeve
-
11420250400 O-RingO-Ring
-
12420845560 Locking ElementLocking Element
-
13420852520 Lock RingLock Ring
-
14420941250 Hex Tapping Screw M6 X 20Hex Tapping Screw M6 X 20
-
15293800060 Loctite 243, 250 mlLoctite 243, 250 ml
-
16420899763 Molykote Pg 54, 10 GMolykote Pg 54, 10 G
