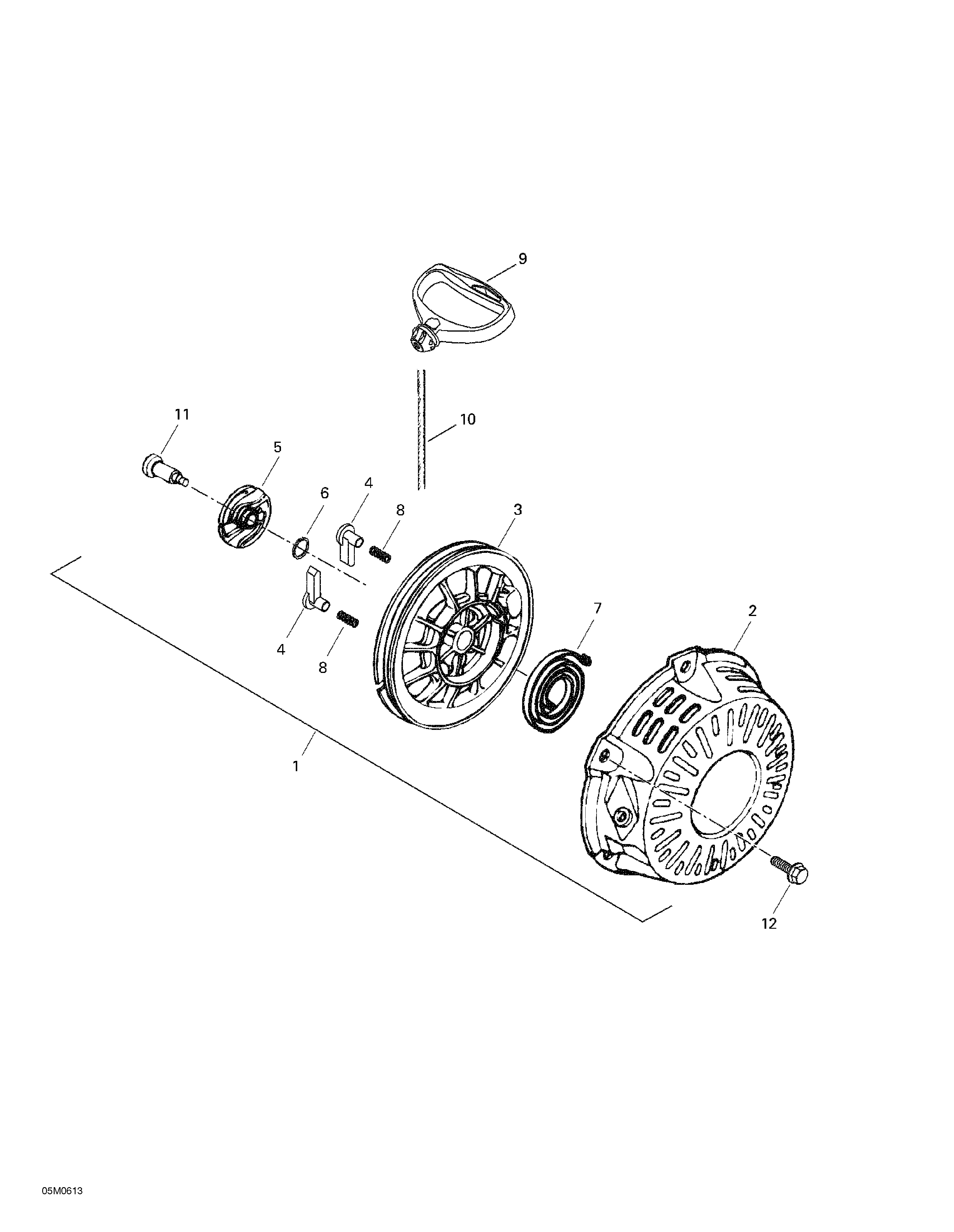

04- Rewind Starter для BRP Ski-Doo Mini Z - 2006
-
№АртикулНазвание
-
1H28400ZH8013ZV Rewind Starter Ass'y. Includes 1 - 11.Rewind Starter Ass'y. Includes 1 - 11.
-
2H28410ZH8003ZV Starter HousingStarter Housing
-
3H28420ZH8013 Rope SheaveRope Sheave
-
4H28422ZH8013 RatchetRatchet
-
5H28433ZH8003 Rachet GuideRachet Guide
-
6H28441ZH8003 Friction SpringFriction Spring
-
7H28442ZH8003 Recoil Starter SpringRecoil Starter Spring
-
8H28443ZH8003 Return SpringReturn Spring
-
9H28461ZH8003 HandleHandle
-
10412500100 Starter RopeStarter Rope
-
11H90003ZH8003 ScrewScrew
-
12H957010600800 Flanged Bolt 6 x 8Flanged Bolt 6 x 8
