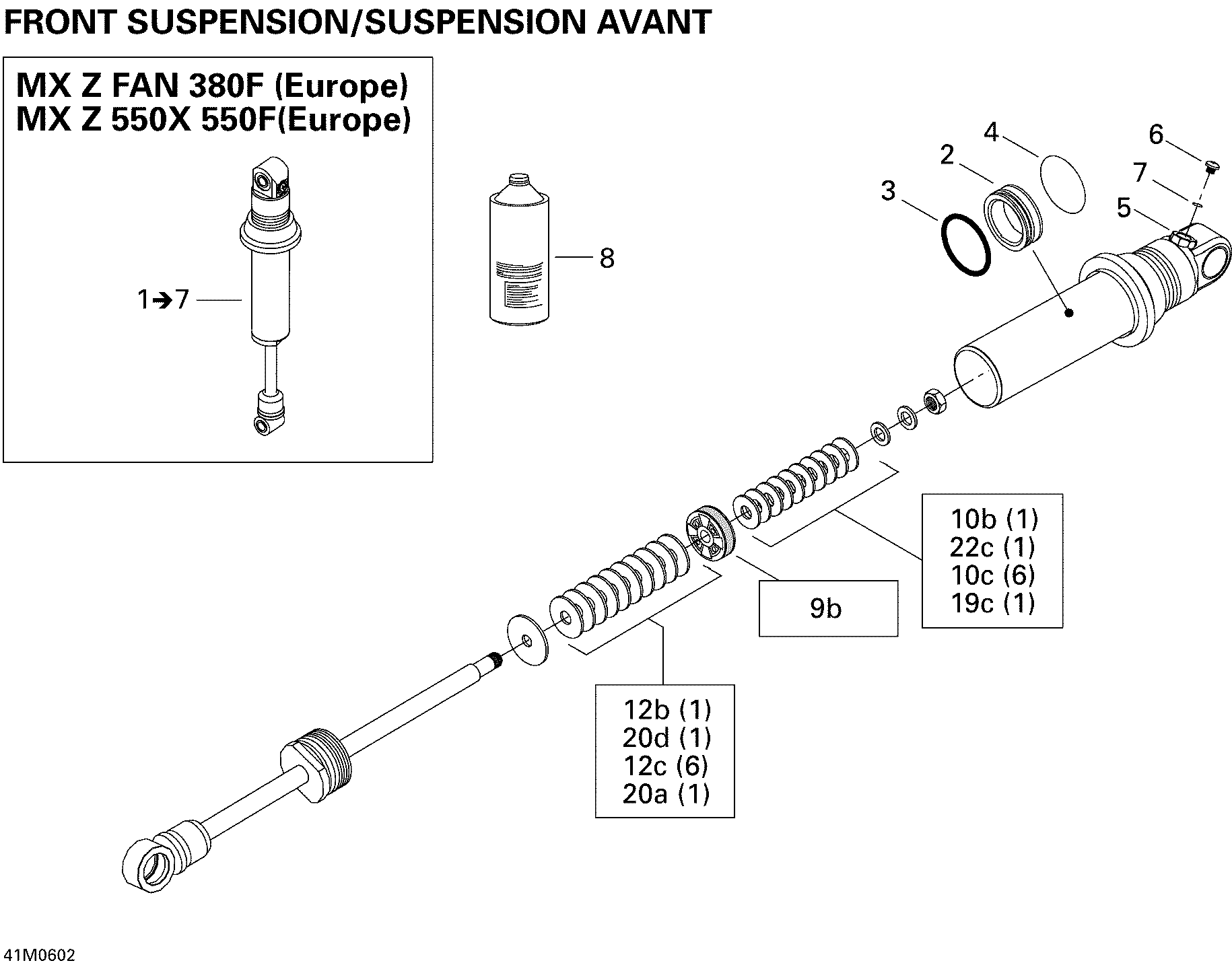

07- Take Apart Shock, Front Europe для BRP Ski-Doo MX Z 380F - 2006
-
№АртикулНазвание
-
1505071951 Front Shock. Includes 1 to 7, 380F (Europe)Front Shock. Includes 1 to 7, 380F (Europe)
-
2503189309 Free PistonFree Piston
-
3414888312 O-RingO-Ring
-
4503189308 Piston RingPiston Ring
-
5505070398 Air Valve RingAir Valve Ring
-
6505070399 ScrewScrew
-
7505070400 O-RingO-Ring
-
8293600035 Shock Oil, 1 LiterShock Oil, 1 Liter
-
9a414888304 Piston (C36)Piston (C36)
-
9c414888305 Piston (2 X 0.3-2) (C36)Piston (2 X 0.3-2) (C36)
-
9e414888306 Piston (2 X 0.3-4) (C36)Piston (2 X 0.3-4) (C36)
-
9g414888307 Piston (2 X 0.3-6) (C36)Piston (2 X 0.3-6) (C36)
-
10a415039100 Leaf Valve O30 X 0.254 (C36)Leaf Valve O30 X 0.254 (C36)
-
10b414888318 Leaf Valve O30 X 0.203 (C36)Leaf Valve O30 X 0.203 (C36)
-
10c414888319 Leaf Valve O30 X 0.152 (C36)Leaf Valve O30 X 0.152 (C36)
-
11b414888320 Leaf Valve O28 X 0.203 (C36)Leaf Valve O28 X 0.203 (C36)
-
11c414888321 Leaf Valve O28 X 0.152 (C36)Leaf Valve O28 X 0.152 (C36)
-
12a415039000 Leaf Valve O26 X 0.254 (C36)Leaf Valve O26 X 0.254 (C36)
-
12b414888322 Leaf Valve O26 X 0.203 (C36)Leaf Valve O26 X 0.203 (C36)
-
12c414888323 Leaf Valve O26 X 0.152 (C36)Leaf Valve O26 X 0.152 (C36)
-
14b414888324 Leaf Valve O22 X 0.203 (C36)Leaf Valve O22 X 0.203 (C36)
-
14c414888325 Leaf Valve O22 X 0.152 (C36)Leaf Valve O22 X 0.152 (C36)
-
15d414888340 Leaf Valve O21 X 0.114 (C36)Leaf Valve O21 X 0.114 (C36)
-
16b414888326 Leaf Valve O20 X 0.203 (C36)Leaf Valve O20 X 0.203 (C36)
-
16c414888327 Leaf Valve O20 X 0.152 (C36)Leaf Valve O20 X 0.152 (C36)
-
16d414888328 Leaf Valve O20 X 0.114 (C36)Leaf Valve O20 X 0.114 (C36)
-
18b414888329 Leaf Valve O18 X 0.203 (C36)Leaf Valve O18 X 0.203 (C36)
-
18c414888330 Leaf Valve O18 X 0.152 (C36)Leaf Valve O18 X 0.152 (C36)
-
20a414888331 Leaf Valve O16 X 0.254 (C36)Leaf Valve O16 X 0.254 (C36)
-
20b414888332 Leaf Valve O16 X 0.203 (C36)Leaf Valve O16 X 0.203 (C36)
-
20c414888333 Leaf Valve O16 X 0.152 (C36)Leaf Valve O16 X 0.152 (C36)
-
20d415038900 Leaf Valve O16 X 0.114 (C36)Leaf Valve O16 X 0.114 (C36)
-
21a414888334 Leaf Valve O15 X 0.254 (C36)Leaf Valve O15 X 0.254 (C36)
-
21b414888335 Leaf Valve O15 X 0.203 (C36)Leaf Valve O15 X 0.203 (C36)
-
21c414888336 Leaf Valve O15 X 0.152 (C36)Leaf Valve O15 X 0.152 (C36)
-
21d414888337 Leaf Valve O15 X 0.114 (C36)Leaf Valve O15 X 0.114 (C36)
-
24a503189538 Leaf Valve O12 X 0.254 (C36)Leaf Valve O12 X 0.254 (C36)
-
24b414888338 Leaf Valve O12 X 0.203 (C36)Leaf Valve O12 X 0.203 (C36)
-
24c414888339 Leaf Valve O12 X 0.152 (C36)Leaf Valve O12 X 0.152 (C36)
-
24d415038800 Leaf Valve O12 X 0.114 (C36)Leaf Valve O12 X 0.114 (C36)
