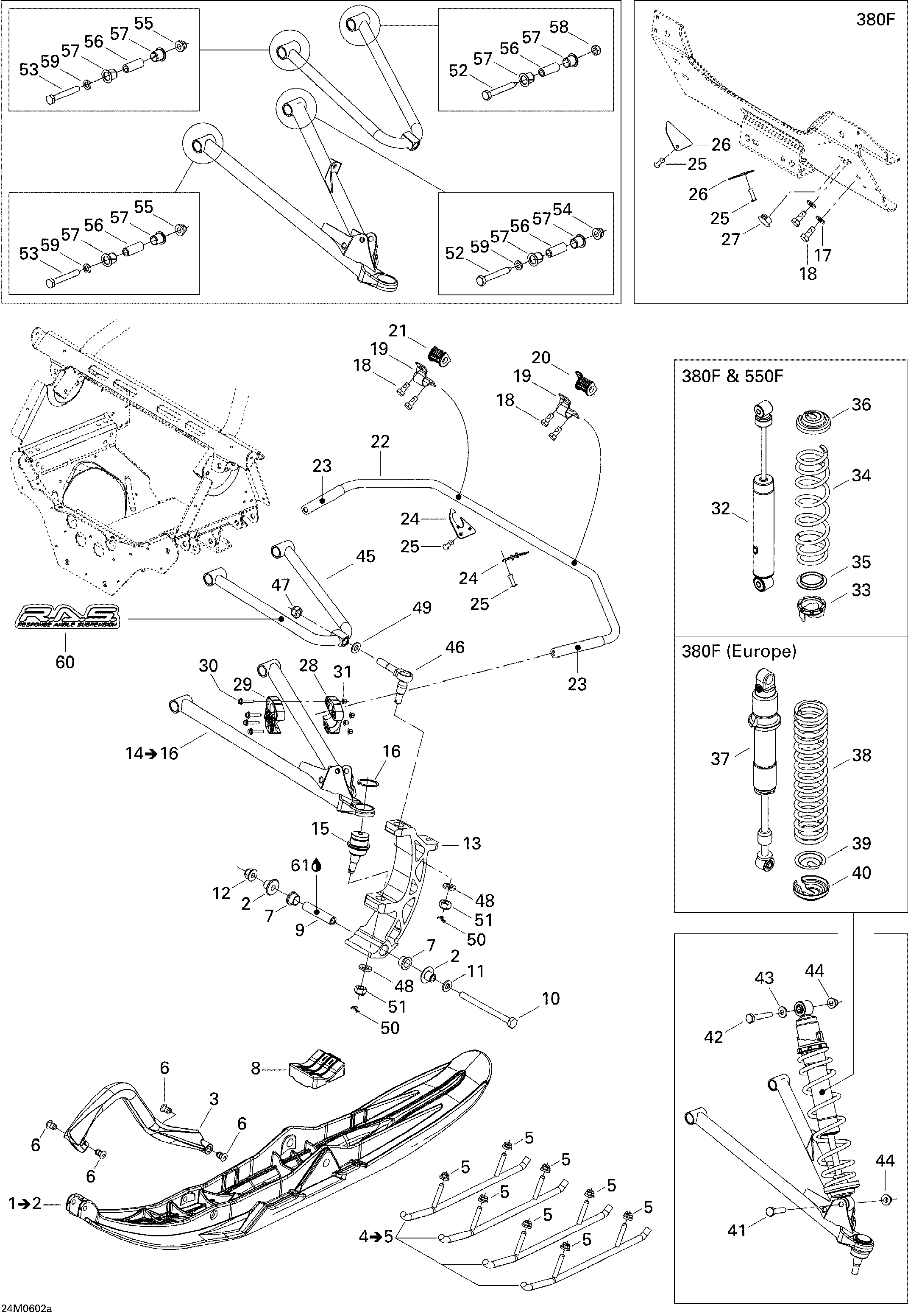

07- Front Suspension And Ski MX Z 550F для BRP Ski-Doo MX Z 550F - 2006
-
№АртикулНазвание
-
1505071790 RH Pilot Ski Ass'y, Black. Includes 1 to 2RH Pilot Ski Ass'y, Black. Includes 1 to 2
-
1505071791 LH Pilot Ski Ass'y, Black. Includes 1 to 2LH Pilot Ski Ass'y, Black. Includes 1 to 2
-
2505071781 CushionCushion
-
3505070917 Handle, YellowHandle, Yellow
-
4860511400 Carbide Runner Kit. Includes 4 to 5Carbide Runner Kit. Includes 4 to 5
-
5233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
6505071812 RetainerRetainer
-
7505070954 CushionCushion
-
8505071779 Ski StopperSki Stopper
-
9506133300 SpacerSpacer
-
10230003044 Hex Screw M10 X 130Hex Screw M10 X 130
-
11732900049 WasherWasher
-
12732610084 Hex Flanged Nut M10Hex Flanged Nut M10
-
13505071232 Ski LegSki Leg
-
14860512400 LH Lower Arm Ass'y. Includes 14 to 16LH Lower Arm Ass'y. Includes 14 to 16
-
14860512500 RH Lower Arm Ass'y. Includes 14 to 16RH Lower Arm Ass'y. Includes 14 to 16
-
15505071891 Ball JointBall Joint
-
16293370035 CirclipCirclip
-
18250000118 Hex Screw With NylonHex Screw With Nylon
-
19506095800 ClampClamp
-
20505070664 LH Torsion Bar BushingLH Torsion Bar Bushing
-
21505070912 RH Torsion Bar BushingRH Torsion Bar Bushing
-
22505070948 StabilisatorStabilisator
-
23505071039 Sway Bar EndSway Bar End
-
24505071253 PlugPlug
-
25293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
28505071268 RH Slider HalfRH Slider Half
-
29505071269 LH Slider HalfLH Slider Half
-
30207652544 Hex Flange Screw M5 X 25Hex Flange Screw M5 X 25
-
31233251414 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
32505071662 Front ShockFront Shock
-
33503183700 Cam 45°Cam 45°
-
34505071833 SpringSpring
-
35503187500 Spring GuideSpring Guide
-
36503140600 Spring StopperSpring Stopper
-
41207006044 Hex Screw M10 X 60Hex Screw M10 X 60
-
42207006044 Hex Screw M10 X 60Hex Screw M10 X 60
-
43503189564 WasherWasher
-
44233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
45505071756 Upper ArmUpper Arm
-
46505071863 Upper Ball JointUpper Ball Joint
-
47250000047 Elastic Stop Nut M12Elastic Stop Nut M12
-
48234021410 Flat Washer 12 mmFlat Washer 12 mm
-
49503189276 WasherWasher
-
50211400017 Cotter PinCotter Pin
-
51250000047 Elastic Stop Nut M12Elastic Stop Nut M12
-
52250000216 Cone Screw M10 X 75Cone Screw M10 X 75
-
53250000218 Hex Screw M10 X 75Hex Screw M10 X 75
-
54250100073 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
55250100073 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
56505070567 BushingBushing
-
57505070566 Arm BushingArm Bushing
-
58232501416 Elastic Stop Nut M10Elastic Stop Nut M10
-
59503189564 WasherWasher
-
60516002747 R.a.s. Suspension DecalR.a.s. Suspension Decal
-
61219700417 Synthetic Grease, 400 GSynthetic Grease, 400 G
