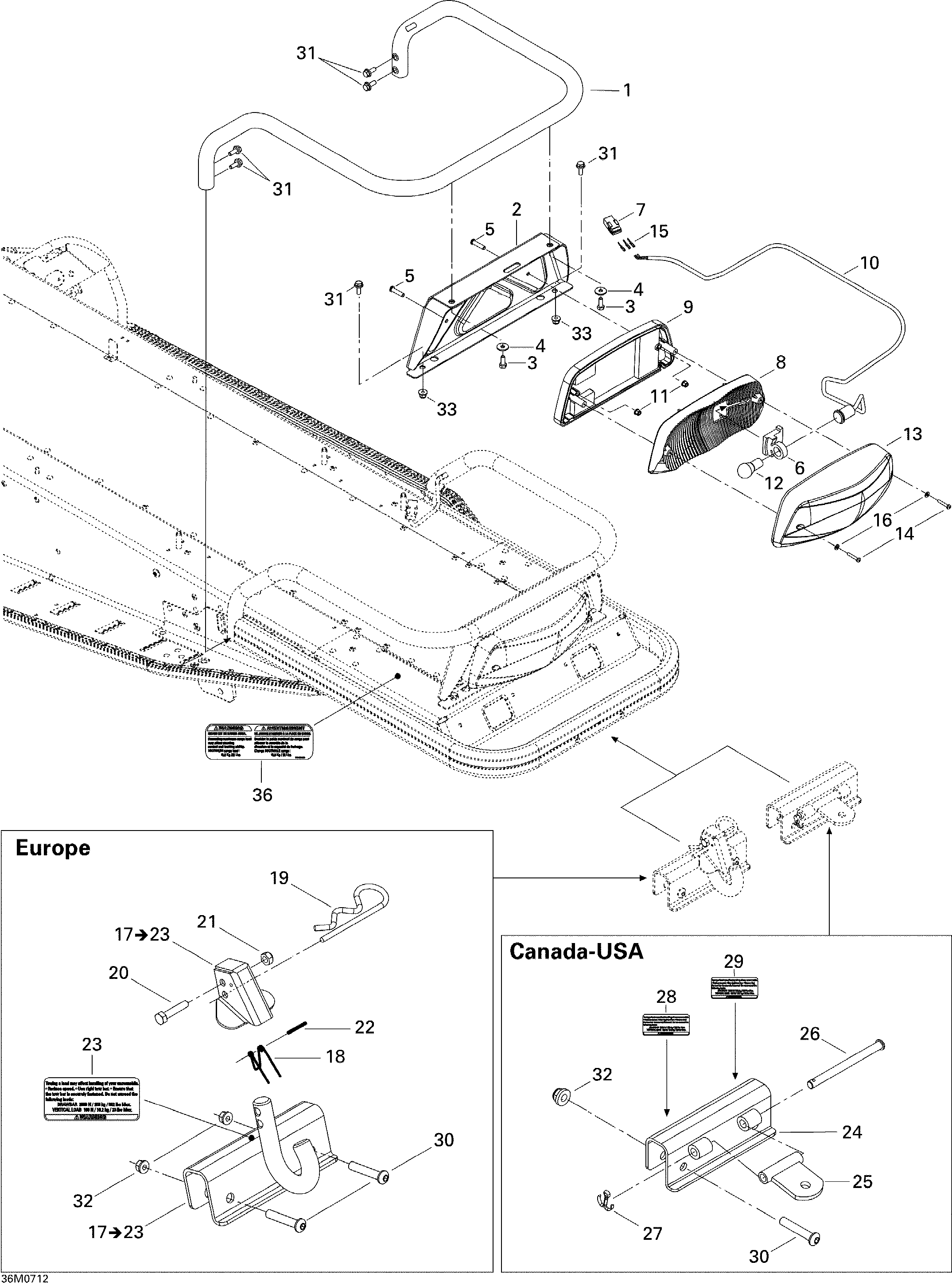

09- Luggage Rack для BRP Ski-Doo Expedition Sport 550F - 2007
-
№АртикулНазвание
-
1511000422 Luggage RackLuggage Rack
-
2511000187 Rear Light SupportRear Light Support
-
3207161644 Hex Screw M6 X 16Hex Screw M6 X 16
-
4391302000 Flat WasherFlat Washer
-
5205452560 Socket Screw M5 X 25Socket Screw M5 X 25
-
6511000431 Bulb SupportBulb Support
-
7515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
8510004442 ReflectorReflector
-
9515176272 Rear Light HousingRear Light Housing
-
10511000448 Bulb SocketBulb Socket
-
11233251414 Hex Flanged Elastic Nut M5Hex Flanged Elastic Nut M5
-
12410504100 Tail Light BulbTail Light Bulb
-
13511000315 LensLens
-
14209632580 Phillips Tapping Screw 3.9 X 25Phillips Tapping Screw 3.9 X 25
-
15515175232 Male TerminalMale Terminal
-
16414516400 WasherWasher
-
17511000509 Hitch Ass'y. Europe, Includes 17 to 23Hitch Ass'y. Europe, Includes 17 to 23
-
18517152800 Spring. EuropeSpring. Europe
-
19114045200 Hair Pin. EuropeHair Pin. Europe
-
20207063544 Hex. Flanged Screw M6 X 35. EuropeHex. Flanged Screw M6 X 35. Europe
-
21232561414 Elastic Stop Nut M6. EuropeElastic Stop Nut M6. Europe
-
22732804000 Spring Pin M3 X 24. EuropeSpring Pin M3 X 24. Europe
-
23516003037 Security Label. EuropeSecurity Label. Europe
-
24511000524 hitch, black. Canada-USAhitch, black. Canada-USA
-
25517008700 Welded Hitch Plate. Canada-USAWelded Hitch Plate. Canada-USA
-
26511000520 clevis pin. Canada-USAclevis pin. Canada-USA
-
27371800200 Cotter Pin. Canada-USACotter Pin. Canada-USA
-
28516003037 Security Label. Canada-USASecurity Label. Canada-USA
-
29516003038 Security Label, French. Canada-USASecurity Label, French. Canada-USA
-
30205484546 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
31207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
32233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
33233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
36516003039 Maximum Cargo Load LabelMaximum Cargo Load Label
