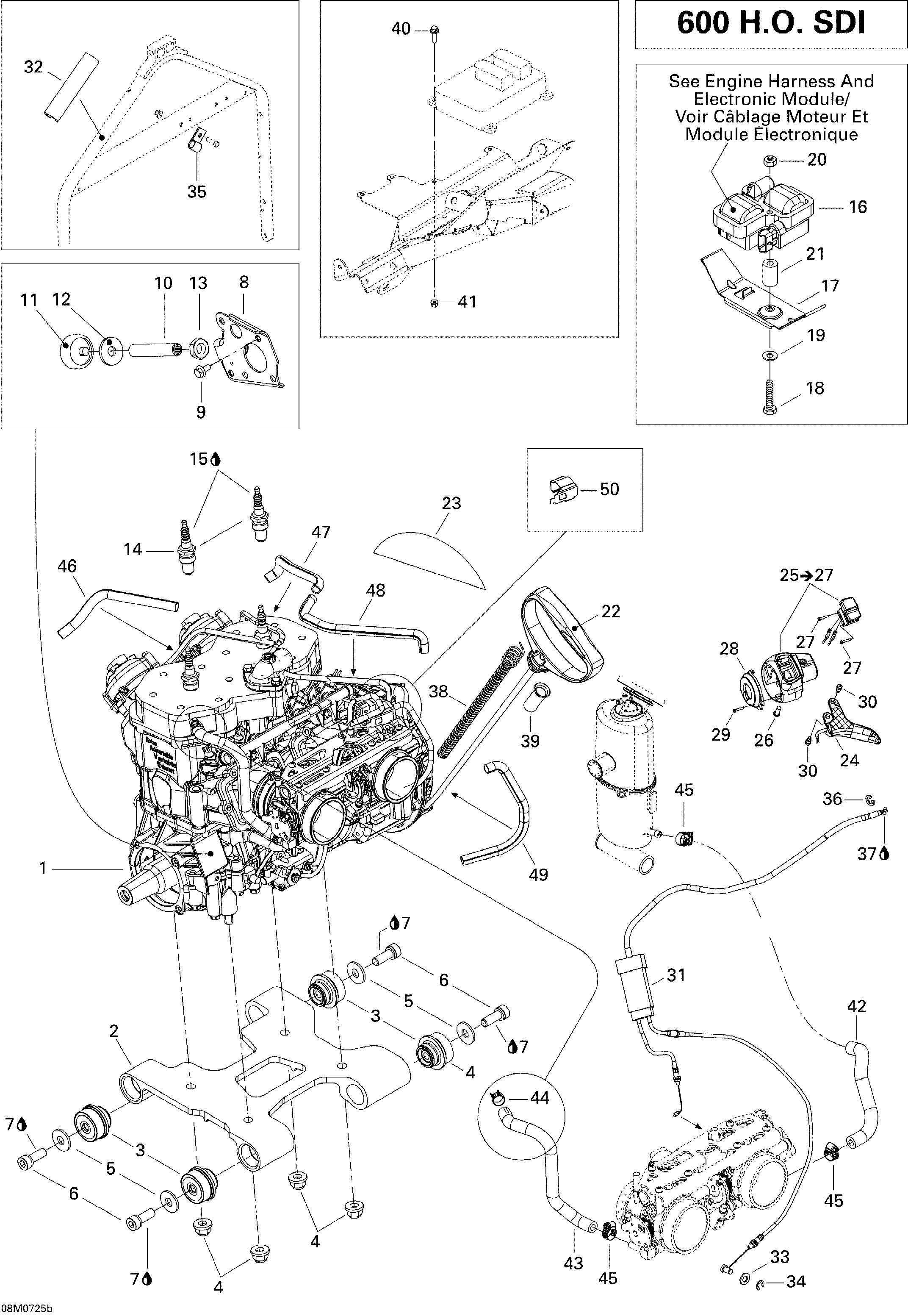

01- Engine 600HOSDI для BRP Ski-Doo GSX LTD 600 HO SDI - 2007
-
№АртикулНазвание
-
1400509773 Engine 593 H.O. SDIEngine 593 H.O. SDI
-
2512060051 Engine SupportEngine Support
-
3512059691 Rubber MountRubber Mount
-
4233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
5506151251 WasherWasher
-
6235202544 Torx Low Head Socket Screw M10 X 25Torx Low Head Socket Screw M10 X 25
-
7413703400 Loctite 222, 10 CcLoctite 222, 10 Cc
-
8512059840 PlatePlate
-
9207561244 Hex Flanged Screw M6 X 12, Scotch GripHex Flanged Screw M6 X 12, Scotch Grip
-
10250500007 Stopper ScrewStopper Screw
-
11512059610 StopperStopper
-
12512059057 WasherWasher
-
13232170411 Hex. Jam Nut M14Hex. Jam Nut M14
-
14512060029 Spark Plug BR8ECSSpark Plug BR8ECS
-
15293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
16420266070 Ignition CoilIgnition Coil
-
17512059865 Coil SupportCoil Support
-
18207064544 Hex Screw M6 X 45Hex Screw M6 X 45
-
19234061410 Flat Washer 6 mmFlat Washer 6 mm
-
20232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
21512059812 SpacerSpacer
-
22572084400 Starter GripStarter Grip
-
23512059893 Reflective SheetReflective Sheet
-
24512060302 Throttle Handle Ass'yThrottle Handle Ass'y
-
25512060121 Housing Throttle Ass'y. Includes 25 to 27Housing Throttle Ass'y. Includes 25 to 27
-
26250000036 Socket Head Screw M6 X 16Socket Head Screw M6 X 16
-
27250000098 Phillips Screw M2.9 X 16Phillips Screw M2.9 X 16
-
28512059698 CoverCover
-
29250000265 Torx Screw M2.9 X 12Torx Screw M2.9 X 12
-
30732601143 Flanged ScrewFlanged Screw
-
31512060087 Throttle CableThrottle Cable
-
32512059750 ProtectorProtector
-
33234081100 Flat Washer 8 mmFlat Washer 8 mm
-
34414753500 CirclipCirclip
-
35293750042 Tie ClampTie Clamp
-
36414274500 CirclipCirclip
-
37293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
38512059535 Rope GuideRope Guide
-
39512059536 TubeTube
-
40207652044 Flanged Hex Screw M5 X 20Flanged Hex Screw M5 X 20
-
41233251414 Hex Flanged Elastic Nut M5Hex Flanged Elastic Nut M5
-
42512059563 Formed HoseFormed Hose
-
43512059990 Formed HoseFormed Hose
-
44513033029 Spring ClampSpring Clamp
-
45293650170 Hose ClampHose Clamp
-
46409901700 Tubing 9 mmTubing 9 mm
-
47409901700 Tubing 9 mmTubing 9 mm
-
48409901700 Tubing 9 mmTubing 9 mm
-
49409901700 Tubing 9 mmTubing 9 mm
-
50512059809 Heating Element BracketHeating Element Bracket
