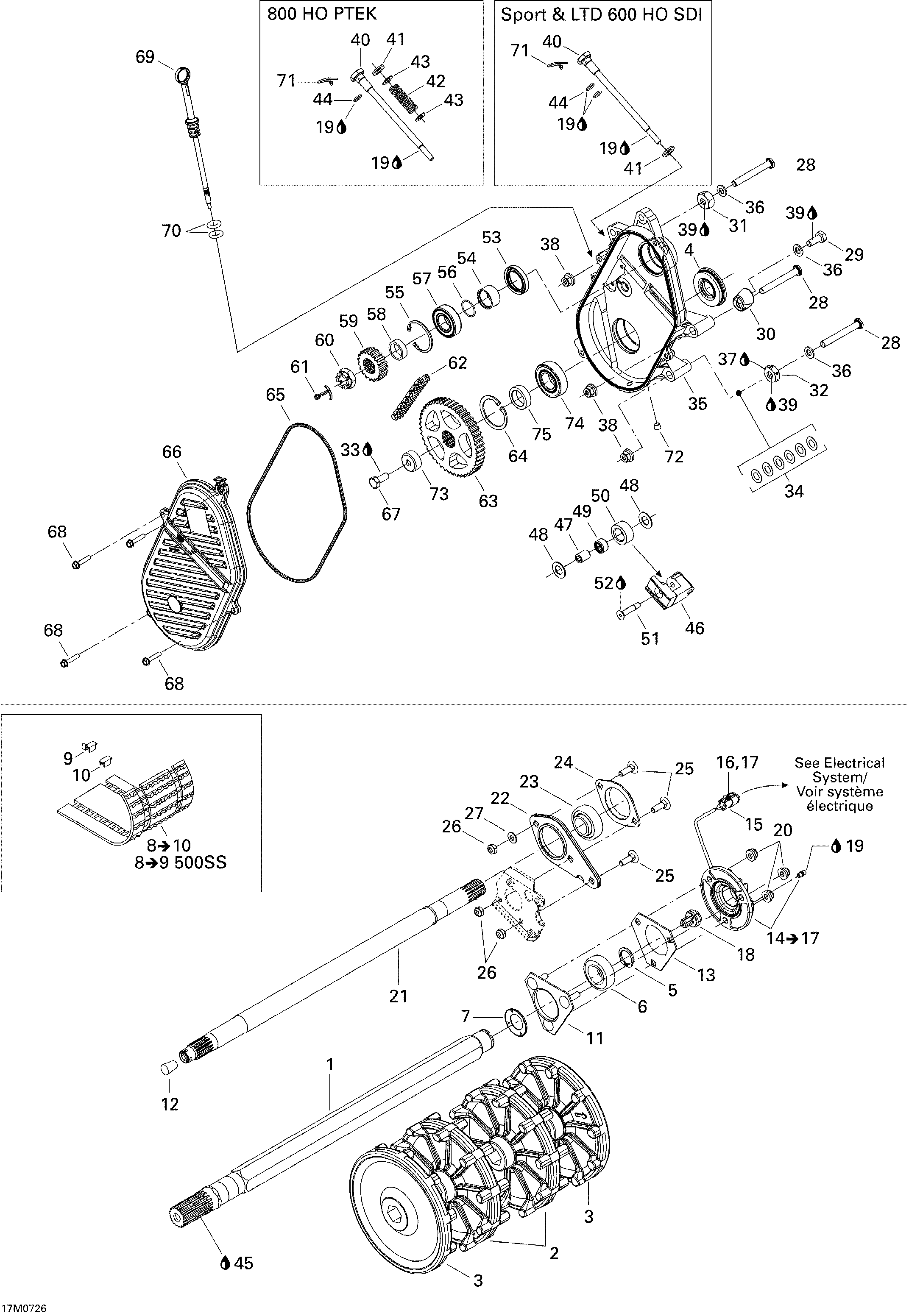

05- Drive System 800 HO PTEK для BRP Ski-Doo GTX LTD 800 HO PTEK - 2007
-
№АртикулНазвание
-
1501027400 Drive AxleDrive Axle
-
2504152198 Sprocket, 10 TeethSprocket, 10 Teeth
-
3504152199 Half Sprocket, 10 TeethHalf Sprocket, 10 Teeth
-
4504151918 Oil Seal Ass'yOil Seal Ass'y
-
5371910200 CirclipCirclip
-
6504152009 Ball BearingBall Bearing
-
7501017400 Bearing ProtectorBearing Protector
-
8504152455 Track 15'' X 136'' X 0.88'' Ass'y. Includes 8 to 10Track 15'' X 136'' X 0.88'' Ass'y. Includes 8 to 10
-
8504152665 Track Ass'y 16''x136''x1.2''. Europe, Includes 8 to 10Track Ass'y 16''x136''x1.2''. Europe, Includes 8 to 10
-
9504152410 GuideGuide
-
10504152651 CleatCleat
-
11504151860 Bearing HousingBearing Housing
-
12414784800 CorkCork
-
13501025000 FlangeFlange
-
14504152345 Rotation Sensor. Includes 14 to 17Rotation Sensor. Includes 14 to 17
-
15515175671 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
16278000632 Female TerminalFemale Terminal
-
17515175676 Female Lock, 3 CircuitsFemale Lock, 3 Circuits
-
18504152040 Magnetic AdaptorMagnetic Adaptor
-
19219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
20233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
21504152018 Counter ShaftCounter Shaft
-
22504151968 SpacerSpacer
-
23504152535 Ball BearingBall Bearing
-
24501026900 FlangeFlange
-
25207782544 Carriage Bolt, M8 X 25Carriage Bolt, M8 X 25
-
26232581414 Hex Elastic Nut M8Hex Elastic Nut M8
-
27234081410 Flat Washer 8 mmFlat Washer 8 mm
-
28250000151 Hex Screw M10 X 80Hex Screw M10 X 80
-
29207102544 Hex Screw M10 X 25Hex Screw M10 X 25
-
30504152252 SpacerSpacer
-
31504083800 SpacerSpacer
-
32504152237 SpacerSpacer
-
33293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
34504073700 WasherWasher
-
35504152482 ChaincaseChaincase
-
36503175800 WasherWasher
-
37293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
38233201414 Hex Flanged Elastic Nut M10Hex Flanged Elastic Nut M10
-
39293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
40504151946 Adjustment ScrewAdjustment Screw
-
41503189148 WasherWasher
-
42504151945 SpringSpring
-
43503189564 WasherWasher
-
44504151954 O-RingO-Ring
-
45219700417 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
46504151940 Chain TensionerChain Tensioner
-
47504080200 SpacerSpacer
-
48504080300 WasherWasher
-
49405403000 Needle BearingNeedle Bearing
-
50414531300 RollerRoller
-
51732601144 ScrewScrew
-
52293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
53415049300 SealSeal
-
54507031500 SpacerSpacer
-
55371901700 CirclipCirclip
-
56414876700 O-RingO-Ring
-
57504152006 Ball BearingBall Bearing
-
58504152587 ShimShim
-
59504091000 Sprocket, 23 TeethSprocket, 23 Teeth
-
60250000012 Hex Castle Nut M20 X 1.5Hex Castle Nut M20 X 1.5
-
61371006300 Pin CotterPin Cotter
-
62504151856 Drive Chain Large, 76 LinksDrive Chain Large, 76 Links
-
63504152238 45 Tooth Sprocket45 Tooth Sprocket
-
64415064300 Circlip, InteriorCirclip, Interior
-
65415046400 O-RingO-Ring
-
66504152471 Chaincase CoverChaincase Cover
-
67207102544 Hex Screw M10 X 25Hex Screw M10 X 25
-
68210263080 Hex Screw M6 X 30Hex Screw M6 X 30
-
69504151703 Filler Cap Ass'yFiller Cap Ass'y
-
70414969400 O-RingO-Ring
-
71414575600 Hair PinHair Pin
-
72504151921 Plug 1/8''-27Plug 1/8''-27
-
73504152460 CapCap
-
74504152005 Ball BearingBall Bearing
-
75504152649 ShimShim
