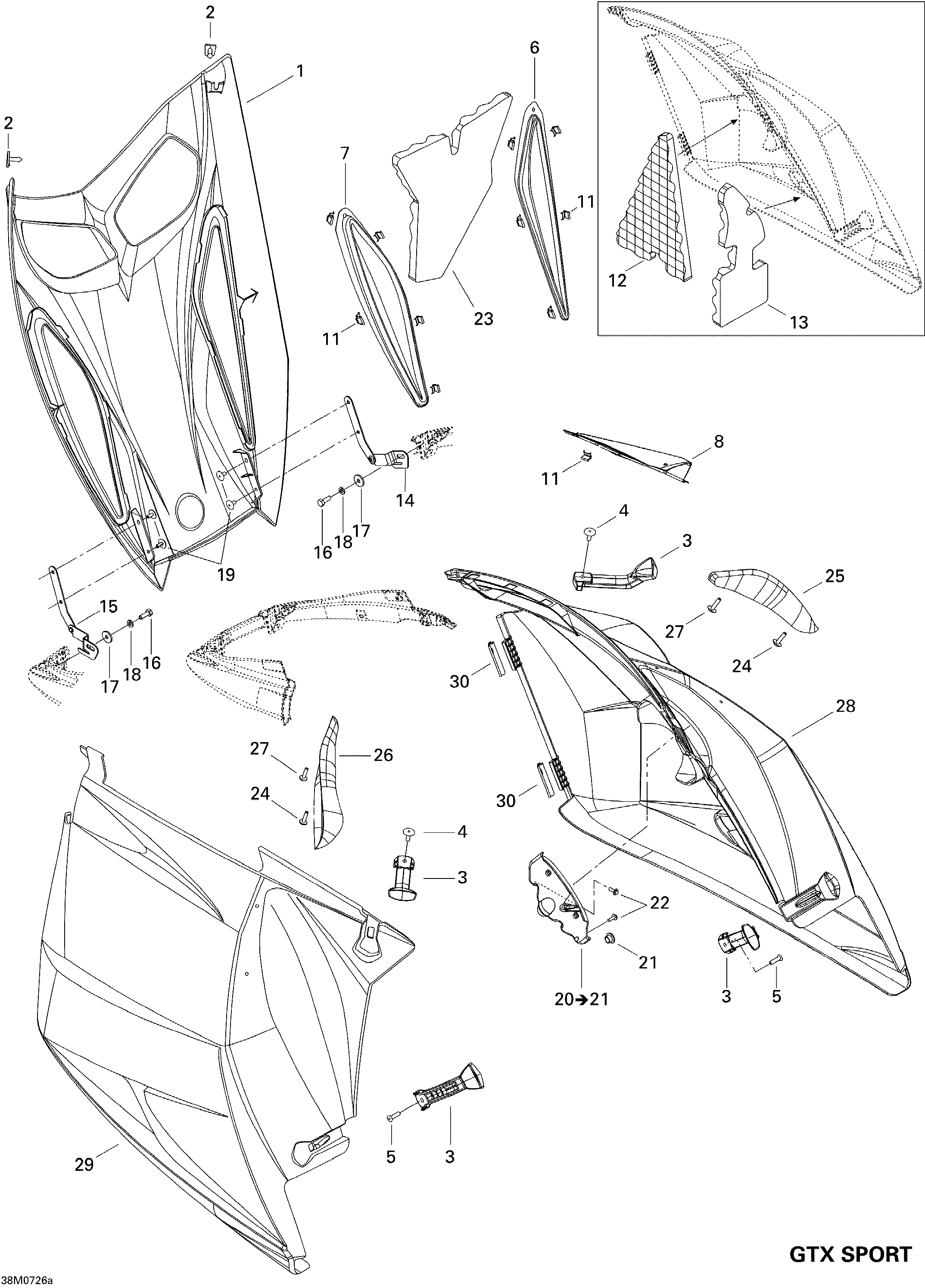

09- Hood SPORT для BRP Ski-Doo GTX Sport 600 HO SDI - 2007
-
№АртикулНазвание
-
1517302788 Hood, Black, B-160. Black/BlackHood, Black, B-160. Black/Black
-
1517303666 Hood, Bright White, B-229. White/BlueHood, Bright White, B-229. White/Blue
-
2517302543 PinPin
-
3517302448 Panel LatchPanel Latch
-
4293150087 Pop Rivet 3/16''Pop Rivet 3/16''
-
5390410100 Pop Rivet 3/16''Pop Rivet 3/16''
-
6517302936 RH Hood GrillRH Hood Grill
-
7517302937 LH Hood GrillLH Hood Grill
-
8517302938 RH Panel GrillRH Panel Grill
-
11517302789 ClipClip
-
12517303082 RH Panel Front FoamRH Panel Front Foam
-
13517303492 RH Panel Rear FoamRH Panel Rear Foam
-
14517303668 RH Hinge Ass'yRH Hinge Ass'y
-
15517303669 LH Hinge Ass'yLH Hinge Ass'y
-
16207161844 Hex Screw M6 X 18Hex Screw M6 X 18
-
17224061121 Flat WasherFlat Washer
-
18234161471 Lock Washer M6, BlackLock Washer M6, Black
-
19390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
20517303482 RH Console. Includes 20 to 21RH Console. Includes 20 to 21
-
21275500241 Cap, BlackCap, Black
-
22241151640 Hex Flanged Screw K50 X 16Hex Flanged Screw K50 X 16
-
23517303081 Hood FoamHood Foam
-
24250000084 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
25517302800 RH Air DeflectorRH Air Deflector
-
26517302801 LH Air DeflectorLH Air Deflector
-
27250000101 Plastite Screw Type K-40, M4 X 25Plastite Screw Type K-40, M4 X 25
-
28517303179 RH Panel, Black, B-160. Black/BlackRH Panel, Black, B-160. Black/Black
-
28517303181 RH Panel, Labrador Blue, B-226. White/BlueRH Panel, Labrador Blue, B-226. White/Blue
-
29517302803 LH Panel, Black, B-160. Black/BlackLH Panel, Black, B-160. Black/Black
-
29517303042 LH Panel, Labrador Blue, B-226. White/BlueLH Panel, Labrador Blue, B-226. White/Blue
-
30517302823 Hinge LockHinge Lock
