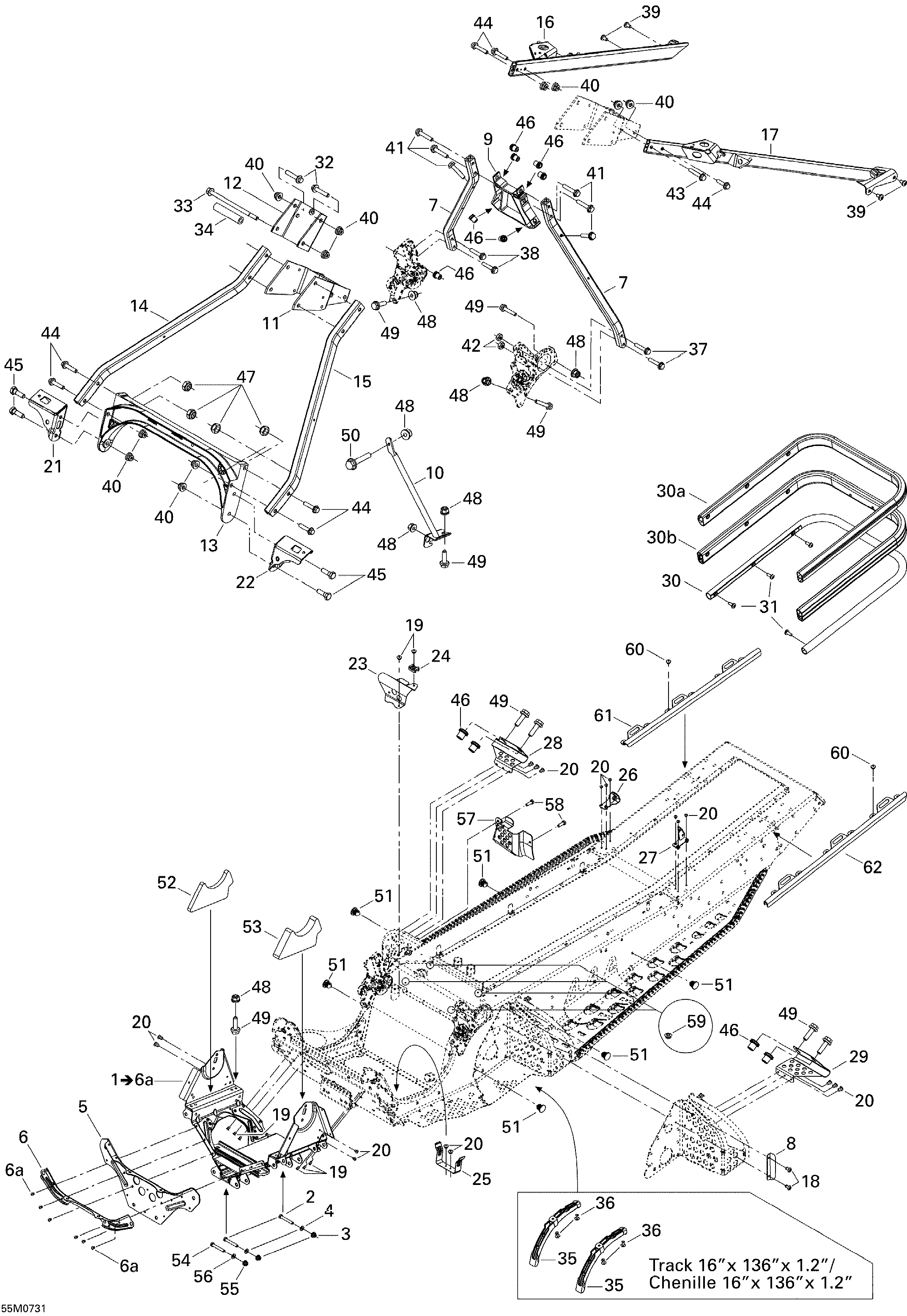

09- Frame and Components для BRP Ski-Doo MX Z 1000 SDI Renegade RT - 2007
-
№АртикулНазвание
-
1518325433 Front MemberFront Member
-
2207085544 Hex. Screw M8 X 55Hex. Screw M8 X 55
-
3233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
4234081410 Flat Washer 8 mmFlat Washer 8 mm
-
5518325422 Front PlateFront Plate
-
6518324727 Front Plate ReinforcementFront Plate Reinforcement
-
6a390909100 Avex RivetAvex Rivet
-
7518324228 Handle SupportHandle Support
-
8518317504 Cable ProtectorCable Protector
-
9518323811 Handle Support ReinforcementHandle Support Reinforcement
-
10518324080 Brace, BlackBrace, Black
-
11518323676 Attachment BracketAttachment Bracket
-
12518324046 Steering Column SupportSteering Column Support
-
13518324265 Upper Cross MemberUpper Cross Member
-
14518324285 RH Front BraceRH Front Brace
-
15518324286 LH Front BraceLH Front Brace
-
16518323352 RH Member. RenegadeRH Member. Renegade
-
16518324182 RH Member. Renegade XRH Member. Renegade X
-
17518323354 LH Member. RenegadeLH Member. Renegade
-
17518324183 LH Member. Renegade XLH Member. Renegade X
-
18390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
19390909100 Avex RivetAvex Rivet
-
20390909200 Avex RivetAvex Rivet
-
21518324148 RH Shock BracketRH Shock Bracket
-
22518324150 LH Shock BracketLH Shock Bracket
-
23518323584 Hose SupportHose Support
-
24293750031 Tie Rap MountTie Rap Mount
-
25518202100 Belt Guard BracketBelt Guard Bracket
-
26518323769 RH Bracket, BlackRH Bracket, Black
-
27518323770 LH Bracket, BlackLH Bracket, Black
-
28518323948 RH Toe HoldRH Toe Hold
-
29518324392 LH Toe HoldLH Toe Hold
-
30518324832 Rear Bumper. Renegade X C/URear Bumper. Renegade X C/U
-
30a518325218 Rear Bumper. RenegadeRear Bumper. Renegade
-
30b518325228 Rear Bumper. Renegade X EuropeRear Bumper. Renegade X Europe
-
31236282084 Hex Screw M8 X 20Hex Screw M8 X 20
-
32207684044 Hex Flanged Screw M8 X 40Hex Flanged Screw M8 X 40
-
33230684044 Hex. Flanged Screw M8 X 140Hex. Flanged Screw M8 X 140
-
34518324048 SpacerSpacer
-
35518324287 Front Radiator Protector. Track 16'' X 136'' X 1,2''Front Radiator Protector. Track 16'' X 136'' X 1,2''
-
36390906800 Pop Rivet 3/16''. Track 16'' X 136'' X 1,2''Pop Rivet 3/16''. Track 16'' X 136'' X 1,2''
-
37250000253 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
38207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
39250000154 Torx Screw M8 X 13Torx Screw M8 X 13
-
40233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
41250000253 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
42232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
43207685044 Hex Flanged Screw M8 X 50Hex Flanged Screw M8 X 50
-
44207683544 Hex Flanged Screw M8 X 35Hex Flanged Screw M8 X 35
-
45207182544 Hex Screw M8 X 25Hex Screw M8 X 25
-
46415107300 InsertInsert
-
47232581414 Hex Elastic Nut M8Hex Elastic Nut M8
-
48233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
49207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
50207663544 Hex Flanged Screw M6 X 35Hex Flanged Screw M6 X 35
-
51518321954 Fastener PanelFastener Panel
-
52518324372 RH Front FoamRH Front Foam
-
53518323007 LH Front FoamLH Front Foam
-
54207085544 Hex. Screw M8 X 55Hex. Screw M8 X 55
-
55233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
56234081410 Flat Washer 8 mmFlat Washer 8 mm
-
57518324701 Footrest ExtensionFootrest Extension
-
58207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
59390402400 Pop Rivet 3/16''. Track 16'' X 136'' X 1,7''Pop Rivet 3/16''. Track 16'' X 136'' X 1,7''
-
60390402400 Pop Rivet 3/16''. Renegade XPop Rivet 3/16''. Renegade X
-
61518325199 RH Wire Protector. Renegade XRH Wire Protector. Renegade X
-
62518325200 LH Wire Protector. Renegade XLH Wire Protector. Renegade X
