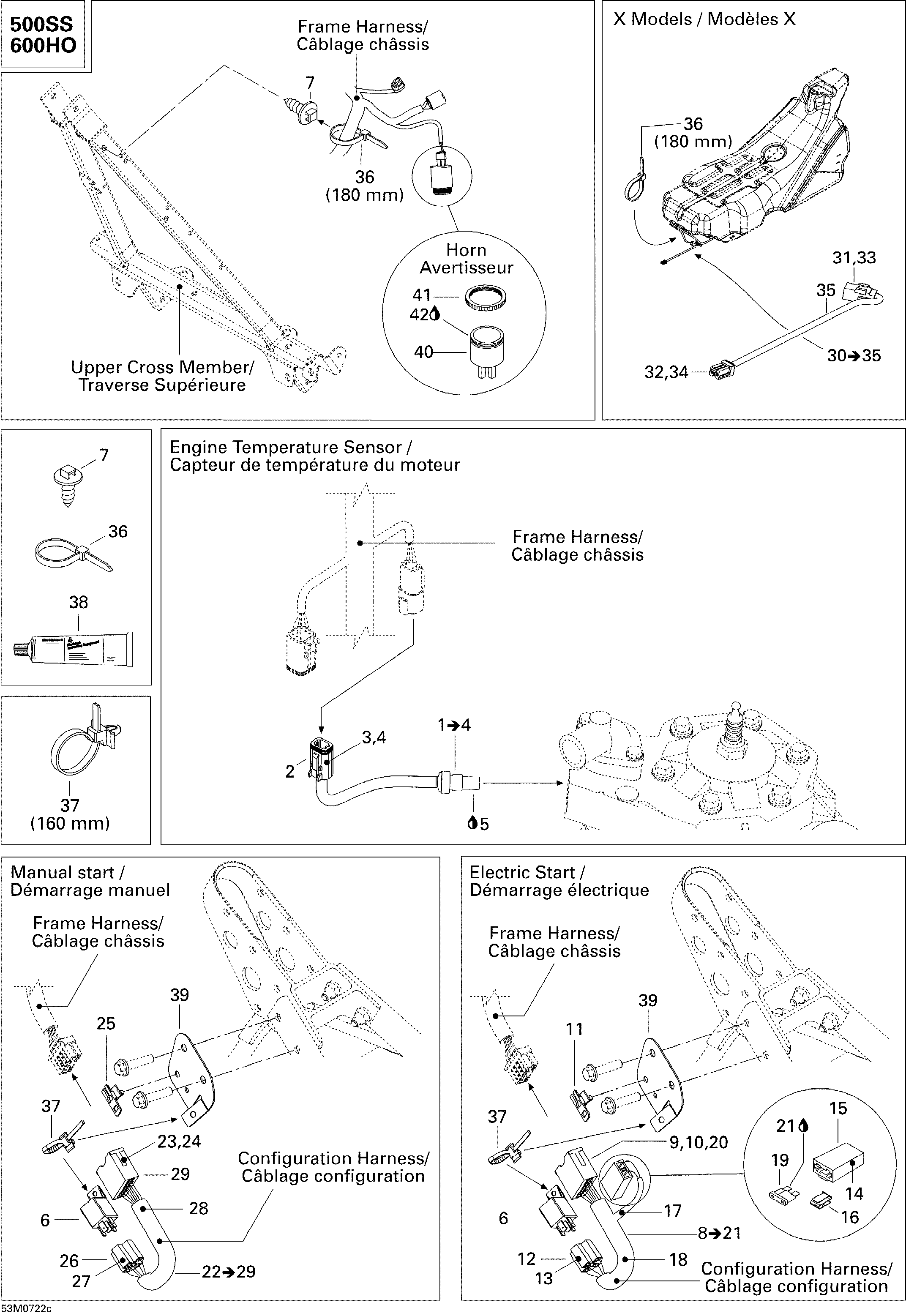

10- Electrical Accessories 2, 500SS, 600HO для BRP Ski-Doo MX Z Adrenaline 600 HO - 2007
-
№АртикулНазвание
-
1515176043 Temperature Sensor. Includes 1 to 4Temperature Sensor. Includes 1 to 4
-
2278000739 Female Terminal Housing, 4 CircuitsFemale Terminal Housing, 4 Circuits
-
3278000632 Female TerminalFemale Terminal
-
4515175677 Male Wedge, 4 CircuitsMale Wedge, 4 Circuits
-
5293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
6410113200 RelayRelay
-
7293730018 Mount DartMount Dart
-
8515175721 Configuration Harness Ass'y. Electric Start, Includes 8 to 21Configuration Harness Ass'y. Electric Start, Includes 8 to 21
-
9515175232 Male Terminal. Electric StartMale Terminal. Electric Start
-
10515175273 Male Terminal. Electric StartMale Terminal. Electric Start
-
11515175283 Housing Support. Electric StartHousing Support. Electric Start
-
12409209900 Female Housing, 5 Circuits. Electric StartFemale Housing, 5 Circuits. Electric Start
-
13561503100 Female Terminal. Electric StartFemale Terminal. Electric Start
-
14409011600 Female Terminal. Electric StartFemale Terminal. Electric Start
-
15409004000 Fuse Holder. Electric StartFuse Holder. Electric Start
-
16409014200 Clip. Electric StartClip. Electric Start
-
17515175442 Tubing 6 mm. Electric StartTubing 6 mm. Electric Start
-
18409901800 Tubing 13 mm. Electric StartTubing 13 mm. Electric Start
-
19278000344 Fuse, 5 Amperes. Electric StartFuse, 5 Amperes. Electric Start
-
20515175720 Male Terminal Housing, 11 Circuits. Electric StartMale Terminal Housing, 11 Circuits. Electric Start
-
21293550004 Dielectric Grease, 150 g. Electric StartDielectric Grease, 150 g. Electric Start
-
22515176175 Configuration Harness. Manual Start, Includes 22 to 29Configuration Harness. Manual Start, Includes 22 to 29
-
23515175232 Male Terminal. Manual StartMale Terminal. Manual Start
-
24515175273 Male Terminal. Manual StartMale Terminal. Manual Start
-
25515175283 Housing Support. Manual StartHousing Support. Manual Start
-
26409209900 Female Housing, 5 Circuits. Manual StartFemale Housing, 5 Circuits. Manual Start
-
27561503100 Female Terminal. Manual StartFemale Terminal. Manual Start
-
28409901800 Tubing 13 mm. Manual StartTubing 13 mm. Manual Start
-
29515175720 Male Terminal Housing, 11 Circuits. Manual StartMale Terminal Housing, 11 Circuits. Manual Start
-
36414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
36293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
36293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
37293750009 Tie-Rap 160 mmTie-Rap 160 mm
-
38293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
39515176020 Harness SupportHarness Support
-
40515176035 HornHorn
-
41414805101 Plastic NutPlastic Nut
-
42296000309 Sealant Silicone, ClearSealant Silicone, Clear
