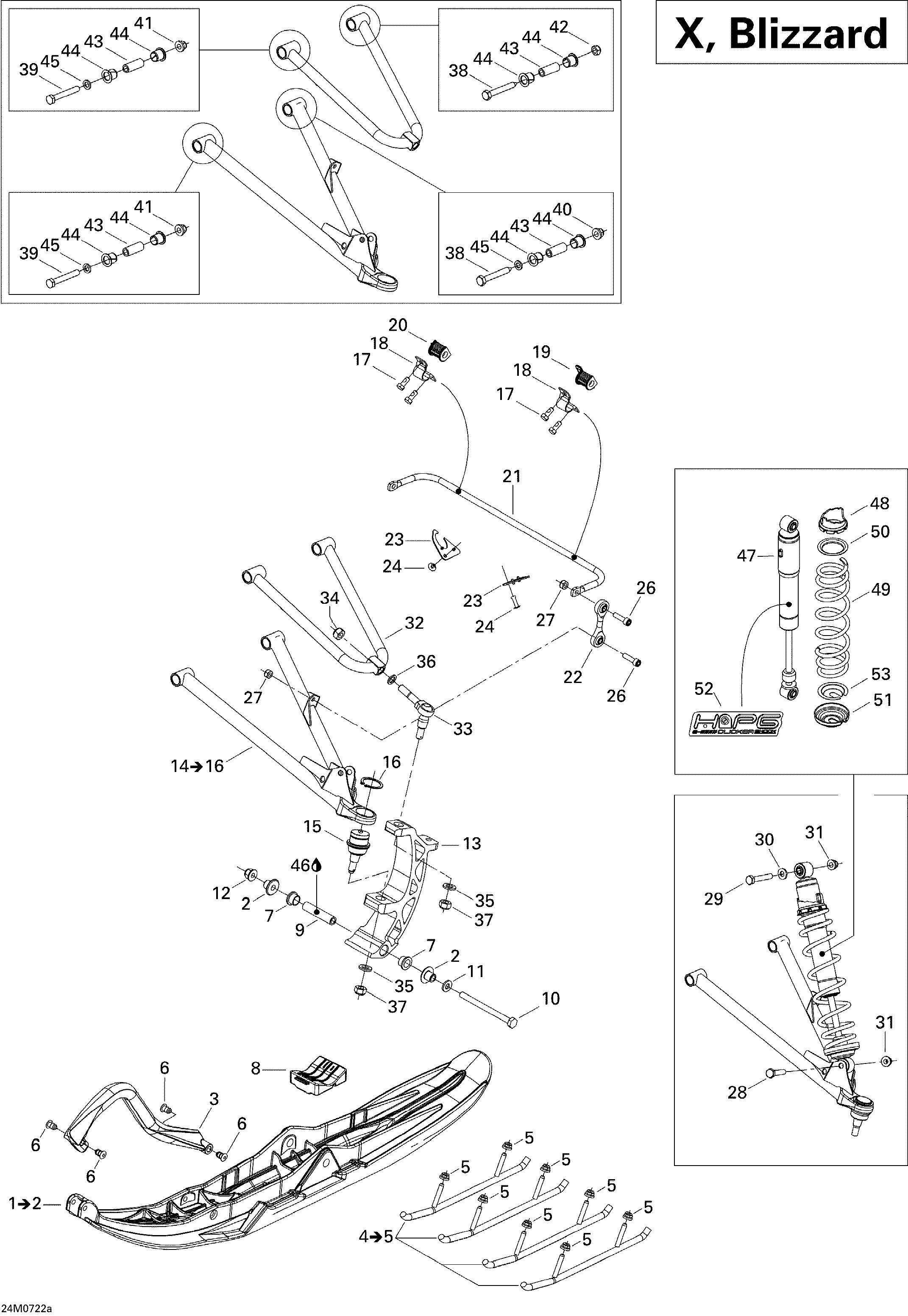

07- Front Suspension And Ski Blizzard для BRP Ski-Doo MX Z Blizzard 600 HO SDI - 2007
-
№АртикулНазвание
-
1505072154 RH Pilot SKI 5.7, Black. Includes 1 to 2RH Pilot SKI 5.7, Black. Includes 1 to 2
-
1505072155 LH Pilot SKI 5.7, Black. Includes 1 to 2LH Pilot SKI 5.7, Black. Includes 1 to 2
-
2505071781 CushionCushion
-
3505070917 Handle, Yellow. White/Black ModelHandle, Yellow. White/Black Model
-
3505070963 Handle, Black, B-160. Black/Yellow ModelHandle, Black, B-160. Black/Yellow Model
-
4860511400 Carbide Runner Kit. Includes 4 to 5Carbide Runner Kit. Includes 4 to 5
-
5233281414 Elastic Flanged Nut M8Elastic Flanged Nut M8
-
6505071812 RetainerRetainer
-
7505070954 CushionCushion
-
8505071779 Ski StopperSki Stopper
-
9506133300 SpacerSpacer
-
10230003044 Hex Screw M10 X 130Hex Screw M10 X 130
-
11732900049 WasherWasher
-
12732610084 Hex Flanged Nut M10Hex Flanged Nut M10
-
13505071232 Ski LegSki Leg
-
14860512300 RH Lower Arm Ass'y. Includes 14 to 16RH Lower Arm Ass'y. Includes 14 to 16
-
14860512200 LH Lower Arm Ass'y. Includes 14 to 16LH Lower Arm Ass'y. Includes 14 to 16
-
15505071891 Ball JointBall Joint
-
16293370035 CirclipCirclip
-
17250000118 Hex Screw With NylonHex Screw With Nylon
-
18506095800 ClampClamp
-
19505071475 LH BushingLH Bushing
-
20505071476 RH BushingRH Bushing
-
21505071477 StabilisatorStabilisator
-
22505071479 Ball JointBall Joint
-
23505071253 PlugPlug
-
24293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
26205083044 Socket Head Screw M8 X 30Socket Head Screw M8 X 30
-
27232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
28207006044 Hex Screw M10 X 60Hex Screw M10 X 60
-
29207006044 Hex Screw M10 X 60Hex Screw M10 X 60
-
30503189564 WasherWasher
-
31233201414 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
32505071756 Upper ArmUpper Arm
-
33505072047 Upper Ball JointUpper Ball Joint
-
34250000047 Elastic Stop Nut M12Elastic Stop Nut M12
-
35234021410 Flat Washer 12 mmFlat Washer 12 mm
-
36503189276 WasherWasher
-
37250000047 Elastic Stop Nut M12Elastic Stop Nut M12
-
38250000216 Cone Screw M10 X 75Cone Screw M10 X 75
-
39250000218 Hex Screw M10 X 75Hex Screw M10 X 75
-
40250100073 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
41250100073 Elastic Flanged Nut M10Elastic Flanged Nut M10
-
42250100073 Elastic Flanged Nut M10. RightElastic Flanged Nut M10. Right
-
42232501416 Elastic Stop Nut M10. LeftElastic Stop Nut M10. Left
-
43505070567 BushingBushing
-
44505070566 Arm BushingArm Bushing
-
45503189564 WasherWasher
-
46219700417 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
47505072070 Front ShockFront Shock
-
48505070150 Cam 45°Cam 45°
-
49505071833 SpringSpring
-
50517184300 Spring GuideSpring Guide
-
51503140600 Spring StopperSpring Stopper
-
52505072222 HPG DecalHPG Decal
-
53503141600 CapCap
