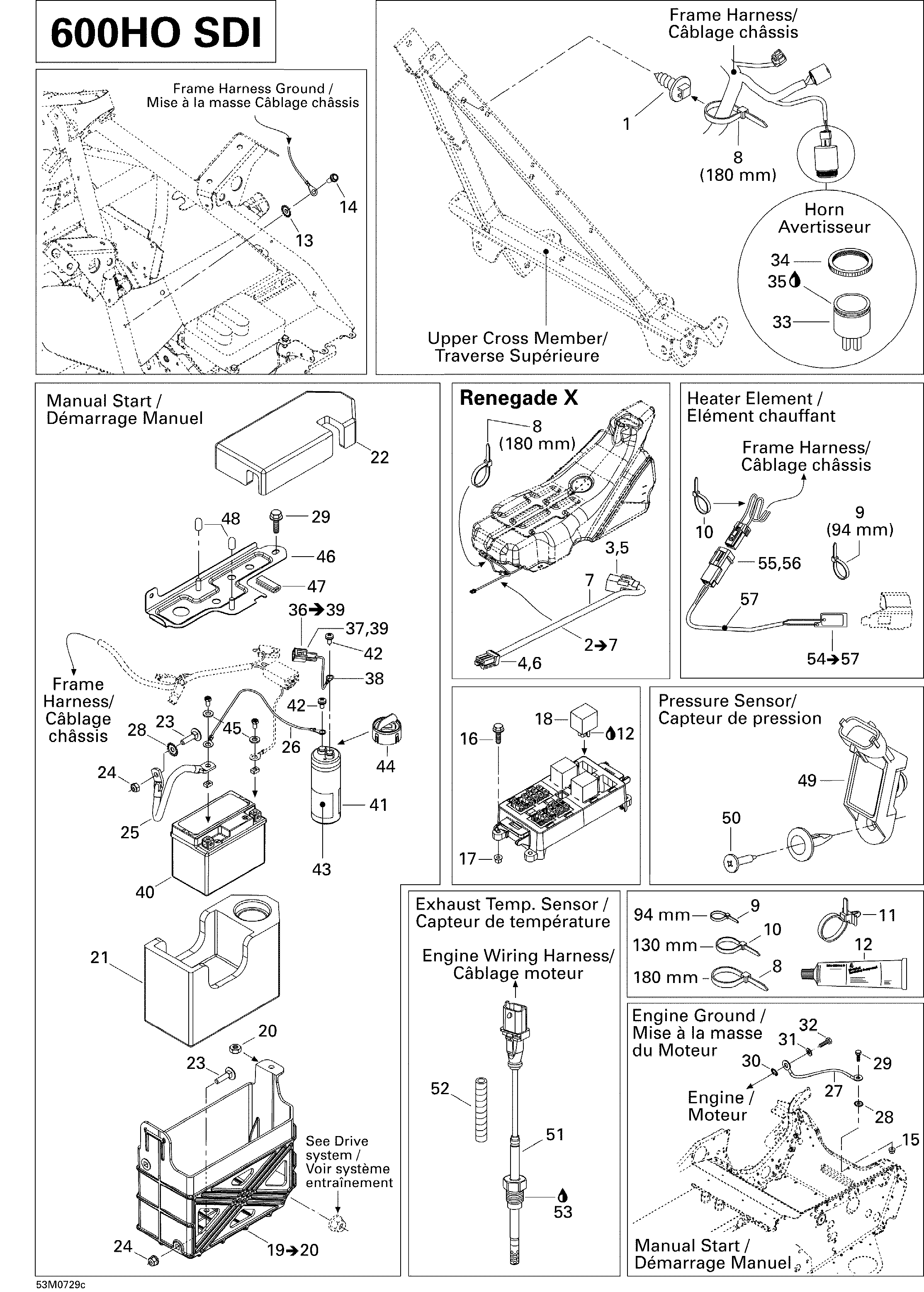

10- Electrical Accessories 2, REN 600 для BRP Ski-Doo MX Z Renegade 600 HO SDI - 2007
-
№АртикулНазвание
-
1293730018 Mount DartMount Dart
-
8414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
9293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
10293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
11293750009 Tie-Rap 160 mmTie-Rap 160 mm
-
12293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
13394001900 External Tooth Lock WasherExternal Tooth Lock Washer
-
14210261280 Hex Flanged Screw M6 X 12Hex Flanged Screw M6 X 12
-
15232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
16207652044 Flanged Hex Screw M5 X 20Flanged Hex Screw M5 X 20
-
17233251414 Hex Flanged Elastic Nut M5Hex Flanged Elastic Nut M5
-
18410113604 Relay. Manual StartRelay. Manual Start
-
19515176423 Battery Support. Manual Start, Includes 19 to 20Battery Support. Manual Start, Includes 19 to 20
-
20232561414 Elastic Stop Nut M6. Manual StartElastic Stop Nut M6. Manual Start
-
21515176190 Capacitor Support. Manual StartCapacitor Support. Manual Start
-
22515176114 Cover. Manual StartCover. Manual Start
-
23207762544 Carriage Bolt M6 X 25. Manual StartCarriage Bolt M6 X 25. Manual Start
-
24233261414 Hex Flanged Elastic Nut M6. Manual StartHex Flanged Elastic Nut M6. Manual Start
-
25515175749 Ground Wire. Manual StartGround Wire. Manual Start
-
26515176119 Ground Harness, Capacitor. Manual StartGround Harness, Capacitor. Manual Start
-
27515176276 Battery Assisted Ground Cable. Manual StartBattery Assisted Ground Cable. Manual Start
-
28250200041 Lock Washer Serrated M6. Manual StartLock Washer Serrated M6. Manual Start
-
29207662044 Hex. Flanged Screw M6 X 20. Manual StartHex. Flanged Screw M6 X 20. Manual Start
-
30234481608 Serrated Lock Washer 8 mm. Manual StartSerrated Lock Washer 8 mm. Manual Start
-
31234081410 Flat Washer 8 mm. Manual StartFlat Washer 8 mm. Manual Start
-
32207181644 Hex. Screw M8 x 16. Manual StartHex. Screw M8 x 16. Manual Start
-
33515176035 HornHorn
-
34414805101 Plastic NutPlastic Nut
-
35296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
36515176120 Capacitor Harness. Manual Start, Includes 36 to 39Capacitor Harness. Manual Start, Includes 36 to 39
-
37515175273 Male Terminal. Manual StartMale Terminal. Manual Start
-
38515175504 Ring Terminal. Manual StartRing Terminal. Manual Start
-
39515175509 Male Terminal Housing, 1 Circuit. Manual StartMale Terminal Housing, 1 Circuit. Manual Start
-
40515176433 Battery With Fasteners, 3 Amperes. Manual StartBattery With Fasteners, 3 Amperes. Manual Start
-
40410301204 Battery With Fasteners, 3 Amperes. Manual Start, EuropeBattery With Fasteners, 3 Amperes. Manual Start, Europe
-
41515176387 Capacitor. Manual StartCapacitor. Manual Start
-
42515176388 mechanical screw. Manual Startmechanical screw. Manual Start
-
43516002976 Capacitor Decal. Manual StartCapacitor Decal. Manual Start
-
44515176211 Cap. Manual StartCap. Manual Start
-
45234051410 Flat Washer M5. Manual StartFlat Washer M5. Manual Start
-
46515175735 Battery Strip. Manual StartBattery Strip. Manual Start
-
47414506600 Trim. Manual StartTrim. Manual Start
-
48515176141 Cap. Manual StartCap. Manual Start
-
49420274055 Pressure SensorPressure Sensor
-
50414745900 Tuflock Phillips Plastic ScrewTuflock Phillips Plastic Screw
-
51515176132 Temperature SensorTemperature Sensor
-
52515175442 Tubing 6 mmTubing 6 mm
-
53293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
54515176473 Heater Element Ass'y. Includes 54 to 57Heater Element Ass'y. Includes 54 to 57
-
55515175654 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
56515175232 Male TerminalMale Terminal
-
57515175332 Vinyl Tubing, Low TemperatureVinyl Tubing, Low Temperature
