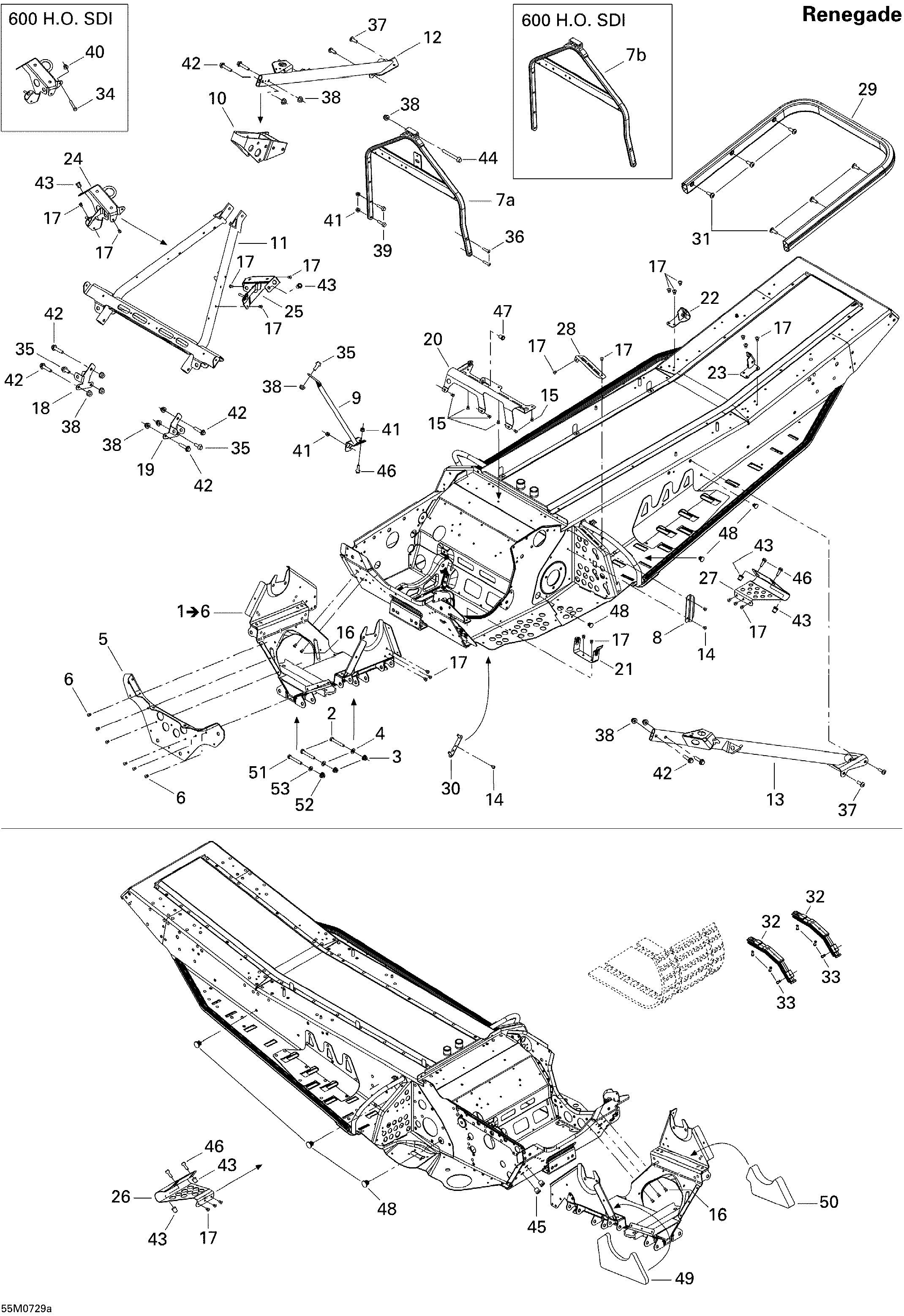

09- Frame and Components REN 800 для BRP Ski-Doo MX Z Renegade 800 HO PTEK - 2007
-
№АртикулНазвание
-
1518325423 Cross Member. Includes 1 to 6Cross Member. Includes 1 to 6
-
2207085544 Hex. Screw M8 X 55Hex. Screw M8 X 55
-
3233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
4234081410 Flat Washer 8 mmFlat Washer 8 mm
-
5518325422 Front PlateFront Plate
-
6390909100 Avex RivetAvex Rivet
-
7A518323979 Handle SupportHandle Support
-
8518317504 Cable ProtectorCable Protector
-
9518323472 Brace, BlackBrace, Black
-
10518323854 Bracket BlockBracket Block
-
11518324739 Upper Cross MemberUpper Cross Member
-
12518323352 RH MemberRH Member
-
13518323354 LH MemberLH Member
-
14390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
15390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
16390909100 Avex RivetAvex Rivet
-
17390909200 Avex RivetAvex Rivet
-
18518322461 RH Shock BracketRH Shock Bracket
-
19518322462 LH Shock BracketLH Shock Bracket
-
20518323532 Intake Air Admission SupportIntake Air Admission Support
-
21518322726 Guard Belt Bracket, BlackGuard Belt Bracket, Black
-
22518323769 RH Bracket, BlackRH Bracket, Black
-
23518323770 LH Bracket, BlackLH Bracket, Black
-
24518323535 RH Console SupportRH Console Support
-
25518323536 LH Console SupportLH Console Support
-
26518324391 RH Toe HoldRH Toe Hold
-
27518324392 LH Toe HoldLH Toe Hold
-
28518323105 Plate, BlackPlate, Black
-
29518325218 Rear BumperRear Bumper
-
30518323896 Trunk Bracket, BlackTrunk Bracket, Black
-
31236282084 Hex Screw M8 X 20Hex Screw M8 X 20
-
32518324071 Front ProtectorFront Protector
-
33390410100 Pop Rivet 3/16''Pop Rivet 3/16''
-
35207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
36205862044 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
37250000154 Torx Screw M8 X 13Torx Screw M8 X 13
-
38233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
39207662544 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
41233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
42207683544 Hex Flanged Screw M8 X 35Hex Flanged Screw M8 X 35
-
43415107300 InsertInsert
-
44207687044 Hex Flanged Screw M8 X 70Hex Flanged Screw M8 X 70
-
45293450166 InsertInsert
-
46207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
47293450232 InsertInsert
-
48518321954 Fastener PanelFastener Panel
-
49518323453 RH Front FoamRH Front Foam
-
50518323007 LH Front FoamLH Front Foam
-
51207085544 Hex. Screw M8 X 55Hex. Screw M8 X 55
-
52233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
53234081410 Flat Washer 8 mmFlat Washer 8 mm
