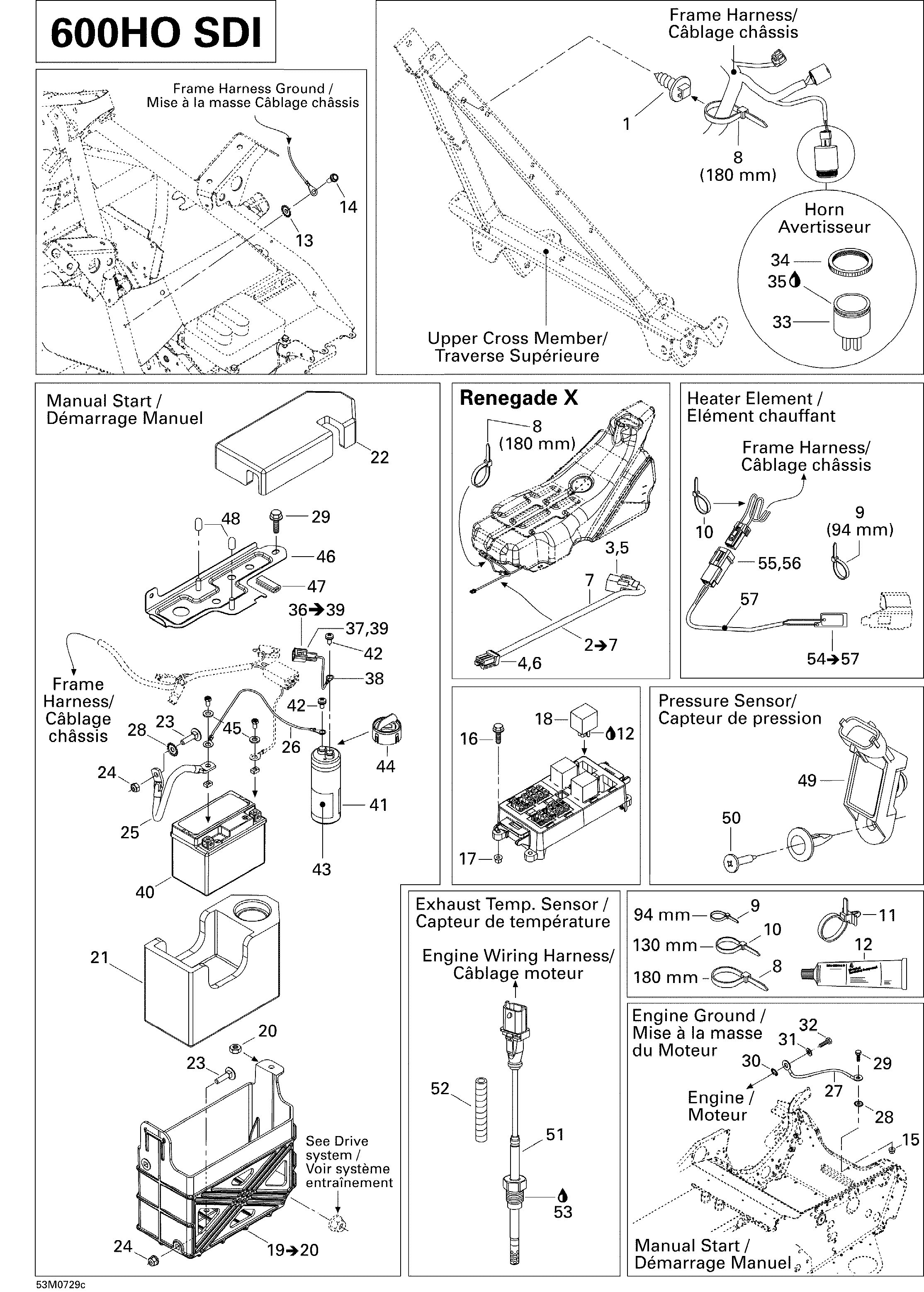

10- Electrical Accessories 2, RENX 600 для BRP Ski-Doo MX Z Renegade X 600 HO SDI - 2007
-
№АртикулНазвание
-
1293730018 Mount DartMount Dart
-
2515176452 Taillight Harness. Includes 2 to 7Taillight Harness. Includes 2 to 7
-
3515175232 Male TerminalMale Terminal
-
4515175231 Female TerminalFemale Terminal
-
5515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
6515175495 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
7515175332 Vinyl Tubing, Low TemperatureVinyl Tubing, Low Temperature
-
8414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
9293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
10293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
11293750009 Tie-Rap 160 mmTie-Rap 160 mm
-
12293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
13394001900 External Tooth Lock WasherExternal Tooth Lock Washer
-
14210261280 Hex Flanged Screw M6 X 12Hex Flanged Screw M6 X 12
-
15232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
16207652044 Flanged Hex Screw M5 X 20Flanged Hex Screw M5 X 20
-
17233251414 Hex Flanged Elastic Nut M5Hex Flanged Elastic Nut M5
-
33515176035 HornHorn
-
34414805101 Plastic NutPlastic Nut
-
35296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
49420274055 Pressure SensorPressure Sensor
-
50414745900 Tuflock Phillips Plastic ScrewTuflock Phillips Plastic Screw
-
51515176132 Temperature SensorTemperature Sensor
-
52515175442 Tubing 6 mmTubing 6 mm
-
53293800070 Loctite 767, Antiseize Lubricant, 8 OzLoctite 767, Antiseize Lubricant, 8 Oz
-
54515176473 Heater Element Ass'y. Includes 54 to 57Heater Element Ass'y. Includes 54 to 57
-
55515175654 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
56515175232 Male TerminalMale Terminal
-
57515175332 Vinyl Tubing, Low TemperatureVinyl Tubing, Low Temperature
