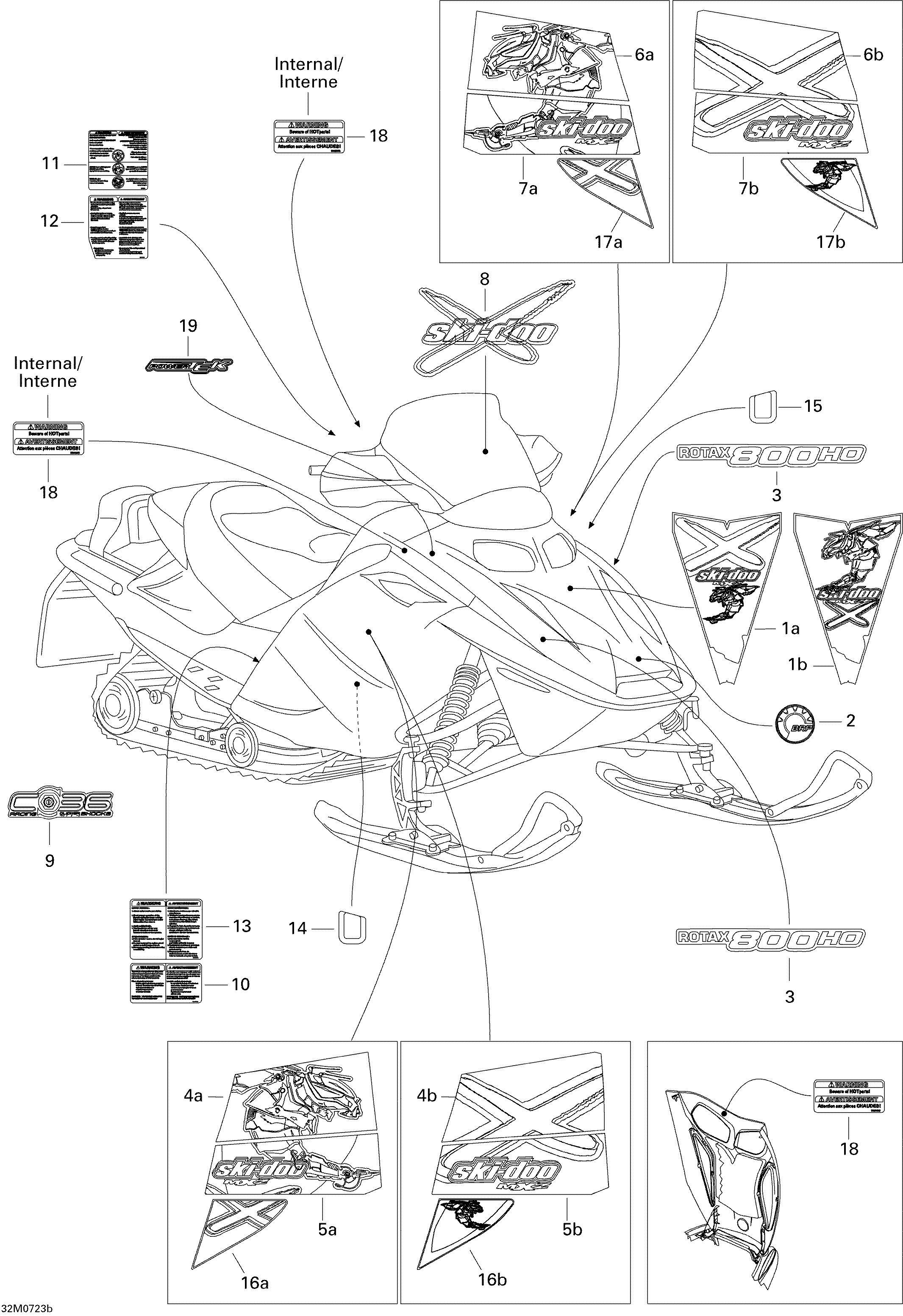

09- Decals X для BRP Ski-Doo MX Z X 800 HO PTEK - 2007
-
№АртикулНазвание
-
1a516003073 Hood DecalHood Decal
-
1b516003215 Hood DecalHood Decal
-
2219902468 Logo BRPLogo BRP
-
3516002758 Hood Decal 800 H.o.Hood Decal 800 H.o.
-
4a516003076 RH Side Decal. Yellow-BlackRH Side Decal. Yellow-Black
-
4b516003078 RH Side Decal. Black-BlackRH Side Decal. Black-Black
-
5a516003084 RH Lower Side Decal. Yellow-BlackRH Lower Side Decal. Yellow-Black
-
5b516003080 RH Lower Side Decal. Black-BlackRH Lower Side Decal. Black-Black
-
6a516003075 LH Side Decal. Yellow-BlackLH Side Decal. Yellow-Black
-
6b516003077 LH Side Decal. Black-BlackLH Side Decal. Black-Black
-
7A516003083 LH Lower Side Decal. Yellow-BlackLH Lower Side Decal. Yellow-Black
-
7b516003079 LH Lower Side Decal. Black-BlackLH Lower Side Decal. Black-Black
-
8516003025 Windshield DecalWindshield Decal
-
9516002548 Suspension DecalSuspension Decal
-
10516003026 Security Label, Passenger NumberSecurity Label, Passenger Number
-
11516002908 Security Label, GeneralSecurity Label, General
-
12516003029 Security Label, FamiliarizationSecurity Label, Familiarization
-
13516003024 Security Label, StartingSecurity Label, Starting
-
14516001910 RH Protector DecalRH Protector Decal
-
15516001911 LH Protector DecalLH Protector Decal
-
16a516003088 RH Rear Lower Decal. Yellow-BlackRH Rear Lower Decal. Yellow-Black
-
16b516003090 RH Rear Lower Decal. Black-BlackRH Rear Lower Decal. Black-Black
-
17a516003087 LH Rear Lower Decal. Yellow-BlackLH Rear Lower Decal. Yellow-Black
-
17b516003089 LH Rear Lower Decal. Black-BlackLH Rear Lower Decal. Black-Black
-
18516002965 Security Label, Hot PartsSecurity Label, Hot Parts
-
19516003028 ''PTEK'' Decal''PTEK'' Decal
