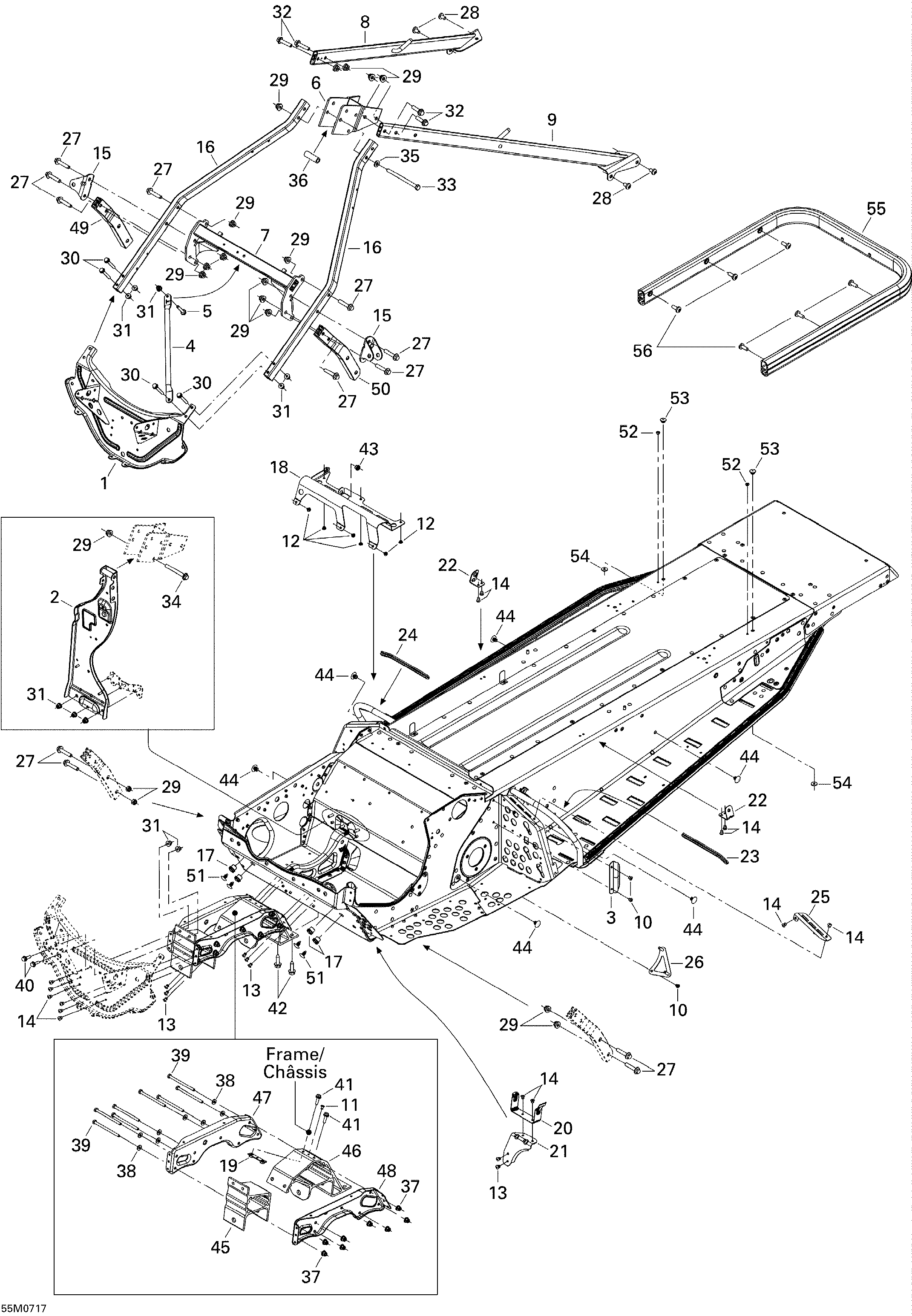

09- Frame and Components для BRP Ski-Doo Skandic Tundra 300F - 2007
-
№АртикулНазвание
-
1518324216 Front PlateFront Plate
-
2518325212 Upper Column SupportUpper Column Support
-
3518317504 Cable ProtectorCable Protector
-
4518324988 BraceBrace
-
5207663544 Hex Flanged Screw M6 X 35Hex Flanged Screw M6 X 35
-
6518324196 Bracket BlockBracket Block
-
7518325150 Upper Cross MemberUpper Cross Member
-
8518324480 RH MemberRH Member
-
9518325193 LH MemberLH Member
-
10390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
11390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
12390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
13390909100 Avex RivetAvex Rivet
-
14390909200 Avex RivetAvex Rivet
-
15518324202 Shock BracketShock Bracket
-
16518325074 Upper TubeUpper Tube
-
17293450166 InsertInsert
-
18518323532 Intake Air Admission SupportIntake Air Admission Support
-
19518324204 Holder PlateHolder Plate
-
20518322726 Guard Belt Bracket, BlackGuard Belt Bracket, Black
-
21518324439 Belt Guard SupportBelt Guard Support
-
22518324688 Trunk BracketTrunk Bracket
-
23271000110 Protection TrimProtection Trim
-
24271000110 Protection TrimProtection Trim
-
25518323105 Plate, BlackPlate, Black
-
26518324312 Trunk Bracket, BlackTrunk Bracket, Black
-
27207684044 Hex Flanged Screw M8 X 40Hex Flanged Screw M8 X 40
-
28250000154 Torx Screw M8 X 13Torx Screw M8 X 13
-
29233281414 Hex Flanged Elastic Nut M8Hex Flanged Elastic Nut M8
-
30207664544 Flanged Hex Screw M6 X 45Flanged Hex Screw M6 X 45
-
31233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
32207683544 Hex Flanged Screw M8 X 35Hex Flanged Screw M8 X 35
-
33230081044 Hex Screw M8 X 110Hex Screw M8 X 110
-
34207687044 Hex Flanged Screw M8 X 70Hex Flanged Screw M8 X 70
-
35503189157 WasherWasher
-
36506150500 Housing BushingHousing Bushing
-
37233261414 Hex Flanged Elastic Nut M6Hex Flanged Elastic Nut M6
-
38250200039 Flat WasherFlat Washer
-
39207069044 Hex. Screw M6 X 90Hex. Screw M6 X 90
-
40207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
41207562044 Flanged Screw M6 X 20, Scotch GripFlanged Screw M6 X 20, Scotch Grip
-
42250000257 Cone Bolt, M8 X 30Cone Bolt, M8 X 30
-
43293450232 InsertInsert
-
44518321954 Fastener PanelFastener Panel
-
45518324019 Front Attachment, Front SuspensionFront Attachment, Front Suspension
-
46518324020 Rear Attachment, Front SuspensionRear Attachment, Front Suspension
-
47518324014 RH Lateral ReinforcementRH Lateral Reinforcement
-
48518324017 LH Lateral ReinforcementLH Lateral Reinforcement
-
49518324214 RH Vertical TubeRH Vertical Tube
-
50518324215 LH Vertical TubeLH Vertical Tube
-
51414644300 DartDart
-
52390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
53390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
54517124300 WasherWasher
-
55518325215 Rear BumperRear Bumper
-
56236282084 Hex Screw M8 X 20Hex Screw M8 X 20
